- Page 1 Vibe 10...
- Page 2 Jabbla. This document is a translation of the original Dutch user manual.
-
Page 3: Table Of Contents
5 Vibe 10 environmental control....................14 6 Calling and sending/receiving text messages................15 7 Putting the Vibe 10 into sleep mode..................15 8 Waking the Vibe 10 from sleep mode..................15 9 Resetting the rear partner display and speakers................ 16 10 Completely resetting the Vibe 10..................... - Page 4 Maintenance and troubleshooting 1 Maintenance........................... 22 Repairs..................................22 Cleaning the device............................... 22 2 Troubleshooting........................22 Finding the Vibe 10 serial number..........................22 Finding the version information............................22 Displaying license information for Mind Express....................... 22 Troubleshooting................................23 Testing the switches................................23 Testing the wake-up sensor............................. 24 Decommissioning and disposal 1 Decommissioning........................
-
Page 5: A Introduction
CAUTION Read this user manual carefully and retain it for later use. The Vibe 10 is a versatile, symbol-supported communication device based on the Mind Express graphic communication program. The Vibe 10 runs on the Windows 11 operating system. If you are not familiar with Windows 11, we advise that you only perform the actions described in this user guide and in the Mind Express program user guide. -
Page 6: Technical Data
Vibe 10 Technical data Technical data Vibe 10 Specification Explanation ® Processor Intel Operating system Windows 11 Pro Hard drive 128 GB SSD Internal memory 8 GB Touchscreen • 10.5 inch capacitative touchscreen • Resolution: 1920 x 1280 ® •... -
Page 7: B Description And Operation

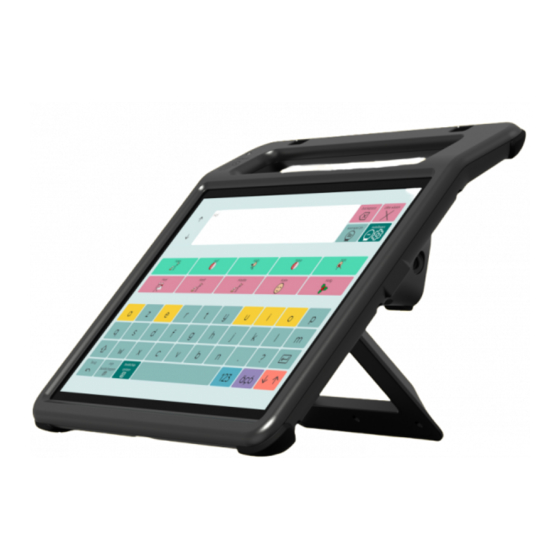

Vibe 10 Description and operation Introducing the Vibe 10 Figure 2: Vibe 10 front view Identification Explanation Infrared receiver With the infrared receiver you can teach the device infrared codes. Wake-up sensor You wake the device from sleep mode by touching where this sensor is located with your thumb or finger. - Page 8 This input is for connecting switch 2. Only connect a non-powered switch directly to the device! Tray stand The Vibe 10 has a folding stand. The stand is designed so that the device can be ergonomically supported on a tray.
-
Page 9: Options
The Vibe 10 can be supplied with an optional REHADAPT mounting system or a DAESSY mounting system. Operation The Vibe 10 is a versatile communication device based on the Mind Express communication program. Thanks to Mind Express, voice messages can be created by selecting images and/or symbols. Selection is made by: •... -
Page 10: C Safety
Vibe 10 Safety Safety CAUTION When mounting the device to a wheelchair, ensure that the unit is securely fastened and additionally locked, so that it cannot accidentally fall at the slightest shock or impact. ENVIRONMENT The device uses a Li-Polymer battery. Ensure the device is safely disposed of. Observe the waste regulations that apply in your region. -
Page 11: D Getting Started
Mind Express web license First use In principle, the Vibe 10 is fully charged on delivery. A charge status between 40 % and 90 % increases the service life of the battery. Start up the device. Press and hold the on/off button (9) for several seconds. -
Page 12: E Control
Vibe 10 Control Switching on the Vibe 10 Figure 4: On/o button Press and hold the on/off button (9) for several seconds. If the device was in sleep mode, it can be used immediately. If the device is no longer in a shutdown state, then it is ready for use provided Mind Express has fully started up. -
Page 13: Viewing The Power Status
Figure 6: The Windows 11 taskbar Select the battery icon on the right of the Windows 11 taskbar. The remaining battery charge of the Vibe 10 is displayed. NOTE If the battery icon on the taskbar is hidden, first select the 'Show hidden icons' icon... -
Page 14: Joystick Control
Vibe 10 NOTE To control the standard Windows functions of the device and Mind Express you can also use a capacitative stylus, a physical keyboard or an on-screen keyboard. You can also use a joystick to control Mind Express. Figure 7: USB-A port For more information on activating and setting up the mouse control in Mind Express, see the Mind Express Help function. -
Page 15: Scanning Control
Vibe 10 For more information on activating and setting up the joystick control in Mind Express, see the Mind Express Help function. Scanning control The device can be operated in Mind Express by scanning. In Mind Express, you can specify how you want to scan. -
Page 16: Using The On-Screen Keyboard
For more information about the on-screen keyboard, refer to the Windows Help function. Vibe 10 environmental control The Vibe 10 has an infrared receiver (1) and an infrared transmitter (17). This enables you to control devices such as televisions, radios, DVD players using infrared codes. -
Page 17: Calling And Sending/Receiving Text Messages
During the teaching procedure, hold the remote control of the relevant device (for example, the TV remote control) at a distance of approximately 5 cm from the Vibe 10's infrared receiver. Briefly press the remote control button of the function you want to program. -
Page 18: Resetting The Rear Partner Display And Speakers
Vibe 10 Carry out one of the following actions to wake Vibe 10 from sleep mode: • Press the on/off button (9). • Touch the wake-up sensor (2) with your thumb or finger. NOTE These options are available as standard in Windows 11. Advanced Windows 11 users can change these settings via Device Manager. -
Page 19: Shutting Down The Vibe 10
Press and hold the on/off button (9) until the touchscreen goes completely dark and then release the on/off button. Press the device's on/off button again for a few seconds to restart the device. Shutting down the Vibe 10 Choose >... -
Page 20: F Settings
0. Windows 11 settings Most of the Vibe 10 settings can be configured using the Windows 11 standard settings. Windows 11 settings via the taskbar You can adjust the most important settings using the taskbar at the bottom right:... -
Page 21: Windows 11 Settings Via The Windows 11 Start Button
Settings screen. Windows 11 settings for sleep mode • Putting the device into sleep mode, see Putting the Vibe 10 into sleep mode on page 15. • Waking the device from sleep mode, see Waking the Vibe 10 from sleep mode on page 15. -
Page 22: Setting Up The Tool Language
Vibe 10 Click OK. Setting up the tool language Do one of the following: • Right-click in the system tray in the Windows taskbar. • Tap on in the system tray in the Windows taskbar and continue to press until the shortcut menu appears. -
Page 23: Switching The Loudspeakers On Or Off
Vibe 10 Check the Automatic plop reduction option to improve recordings using the device. Switching the loudspeakers on or off When the device is switched on, by default the speakers are on. Do one of the following: • Right-click in the system tray in the Windows taskbar. -
Page 24: G Maintenance And Troubleshooting
(aerosol or wipes). Do not press too hard on the screens when cleaning. Troubleshooting Finding the Vibe 10 serial number In your dealings with the support department, you will be asked to supply the serial number of your device. You will find the label with the serial number of the device on the rear panel. -
Page 25: Displaying License Information For Mind Express
Vibe 10 Displaying license information for Mind Express You can display the serial number, version, device code, options... Menu > Settings. Choose Choose System. The Settings tab appears. Choose the License tab. The license information is displayed. Troubleshooting Problem Solution The touchscreen is slow or is not working properly. -
Page 26: Testing The Wake-Up Sensor
Vibe 10 Press switch 1. If operating correctly, the light in the left circle will be green. Press switch 2. If operating correctly, the light in the right circle will be green. Click OK. Testing the wake-up sensor To check whether the wake-up sensor is working properly, you can test it. -
Page 27: H Decommissioning And Disposal
Shutting down the Vibe 10 on page 17. Remove the Vibe 10 from the mounting (if applicable). Take the Vibe 10 out of the carry case (if applicable). Remove the charger. Disposal Do not dispose of the device with the household waste! Use specific collection systems to reduce the ecological impact. -
Page 28: Index
Vibe 10 Index Device Device code show Accessories Dimensions Accessory Display Action Disposal link to switch Airplane mode setting in Windows 11 Audio Environmental control Escape button Battery charging disposal status technical data First use Battery status Function view in Windows 11... - Page 29 Vibe 10 Reset button partner display Label rear speakers Language settings Resetting License complete device display information Right-click Loudspeakers switching on or off Safety Save Maintenance cleaning Scanning control repair Screen Making a call cleaning Malfunction control 7, Memory figure...
- Page 30 Vibe 10 Technical data Tool set up language Touch settings Touchscreen cleaning control technical data Tray stand Type plate technical data USB-A port device prohibited Version show Volume adjusting with the volume control button decrease increase setting in Windows 11...
- Page 31 Vibe 10...
