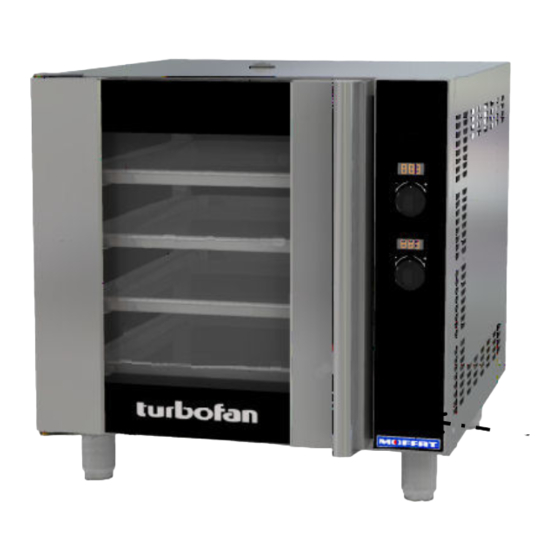

turbofan E32D4 Operation Manual

Hide thumbs Also See for E32D4:
Table of Contents

Advertisement

Quick Links

30DSERIES
E 3 2 D 4
( D i g i t a l O p e r a t i o n )
O p e r a t i o n M a n u a l
A n y q u e s t i o n s ? C o n t a c t u s a t
w w w . e v e n t s e r v i c e s g r o u p . c o . u k
T e l e p h o n e : 0 3 3 3 3 4 4 2 0 6 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E32D4 and is the answer not in the manual?

Questions and answers

Related Manuals for turbofan E32D4

Summary of Contents for turbofan E32D4

  • Page 1 30DSERIES E 3 2 D 4 ( D i g i t a l O p e r a t i o n ) O p e r a t i o n M a n u a l A n y q u e s t i o n s ? C o n t a c t u s a t w w w .

  • Page 2: Specifications

    Specifications E32D4 208 - 220V, 50/60Hz, 6.5 kW Oven Power Ratings 230 - 240V, 50/60Hz, 6.5 kW Tray Capacity 4, 18” x 26” / 460 x 660 Full Size Sheet Pan Capacity. E32 D4 4, 600 x 400 Tray Capacity.

  • Page 3: Installation Requirements

    It is most important that this oven is installed correctly and that oven operation is correct before use.  If you have any questions regarding the proper installation and / or operation of this oven, please contact your local Turbofan distributor. Clearances To ensure correct ventilation for the motor and controls,...

  • Page 4: Electrical Connection

    Installation Electrical Connection Positioning and Levelling of Oven 1. Correctly locate the oven into its final operating position Warning and using a spirit level, adjust the oven feet so that the This oven must be earthed / grounded. oven is level and at the correct height. Each oven should be connected to an adequately protected power supply with an appropriate three wire power cord.

  • Page 5: Operation Guide

     Turbofan Ovens have been designed to provide simple operation.  This oven is intended for use in a commercial kitchen and must only be put to the use for which it was intended, i.e.

  • Page 6: Set Temperature

    Operation Using the Oven - Manual Mode To check actual oven temperature during preheat or cooking, press TURN ‘ON’. ‘Temperature’ button. Actual temperature will display briefly on Press ‘On-Off’ button. ‘Temperature Display’ before the display reverts to the pre-set temperature. Temperature Dislay.

  • Page 7: Cooking In Program Mode

    Operation Cooking in Program Mode TURN ‘ON’. Press ‘On-Off’ button. Press ‘Programs’ button. Program Mode Indicator Heating ‘On’ Temperature Dislay. Indicator Temperature Display will show program selected. To check actual oven temperature during preheat or cooking, press ‘Temperature’ button. Pre-Set SELECT A PROGRAM temperature will display briefly on ‘Temperature Display’...

  • Page 8: Setting The Oven Programs

    Operation Setting the Oven Programs Oven can be pre-programmed with up to 20 Program’s. Carry out the following for each program required:- ENTER PROGRAMMING MODE. Press ‘Programs’ button to enter ‘Programming’ mode. SELECT PROGRAM REQUIRED Rotate ‘Temperature Control’ to Heating ‘On’ Indicator program required.

  • Page 9: Oven Racks

    NOTE: Ensure that the racks are correctly fitted to the oven with the raised part of the rack to the rear of the oven and the hooks on the underside of the rack engaged below the rack runner. E32D4 - Oven Racking Fit racks with raised part of...

  • Page 10: Setting The Operator Accessible Parameters

    Operator Accessible Parameters Setting the Operator Accessible Parameters With the Oven in ‘Stand-By’ mode:- ENTER THE OPERATOR PARAMETER MODE. Press 'Steam' and 'Start / Stop' buttons together. ‘Temperature’ Display will show ‘PAS’. The ‘Time’ Display will flash. SET PASSWORD Rotate ‘Timer Control’ to set password; (123) (Operator Password).
