7. MAIN MENU: Routes Menu (... cont)
Zoom
Zoom in and out
Done
Press when route is finished, unless you have
'closed' the route.
If there is an SD card in the unit and it is not write-
protected, by default the route will go into the
Card folder. If there is no SD card in the unit, by
the Internal Storage
default the route will go into
folder.
You can create route folders using SatSYNC. To
create a new route in an existing folder, you will
need to select the folder in the Routes Menu
press Create New Route from there.
Note: Folders are only visible if they contain a minimum
of one route or OOI.
The Add Waypoint button has 3 functions:
1. To add a waypoint.
2. To click on an existing waypoint and drag it to
another location.
3. To close the route (i.e. connect the last waypoint
to the start point) if the last waypoint is very close
to the start waypoint.
The centre cross turns green inside the orange
location icon when you are on the CREATE ROUTE
screen to indicate you are ready to add waypoints.
Place waypoints wherever your planned route
changes direction. Waypoints are shown as green
dots. As waypoints are laid down, a yellow/blue
highlighted route is created. To remove waypoints,
position the green cross over a waypoint and press
the Remove Waypoint button.
The start point of a route has an icon with a forward
arrowhead in a yellow bubble. The end of a route
has an icon with a chequered flag in a yellow bubble.
Software v3.0.11065
Press Done or press the lower left button to return
.
to the ROUTES MENU
To view the route, highlight it and press
route map plus route length is shown.
SD
and
61
; a
View
Start
Add
Waypoint
Remove
Waypoint
ROUTES
MENU
Finish
Zoom In
Zoom
Out

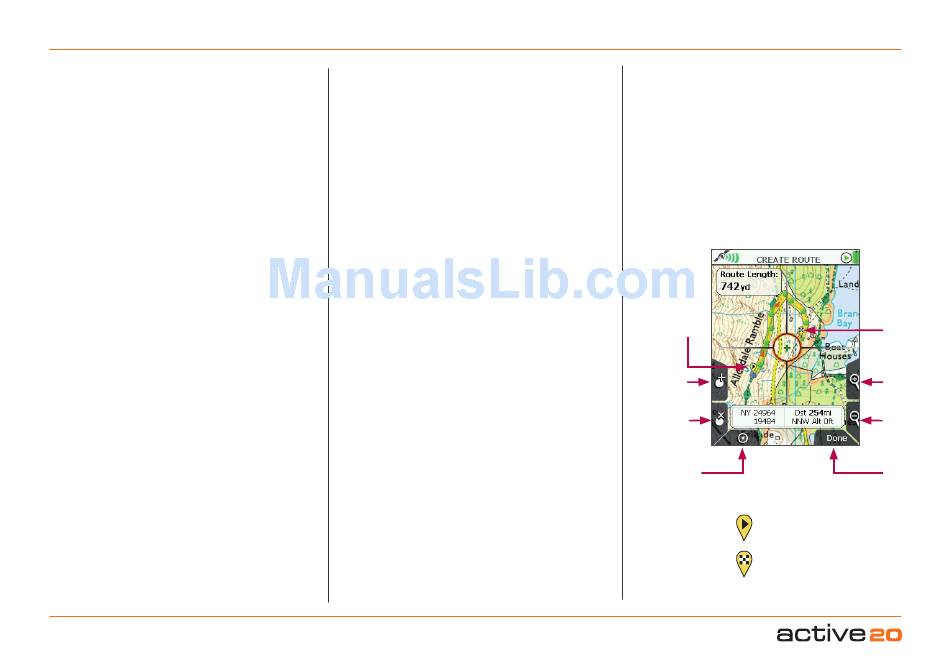

CREATE
ROUTE screen
Done
Route Start
Route End
