3.4 MapCard Insertion

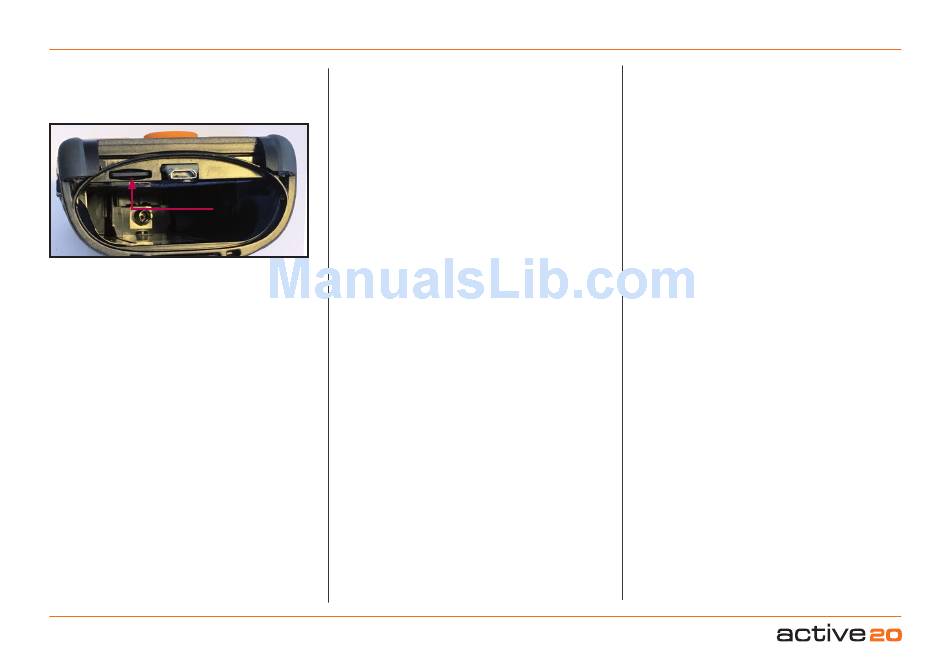

The microSD MapCards have to be inserted with
the battery Pack removed. The microSD slot can
be seen on the Left hand Side of the microUSB
socket.
microSD
When inserting the card please ensure that the
text is facing upwards, and the bright terminals are
facing downwards.
3.5 Base Mapping
The Active 20 is supplied with a world base map
at 1:5m up to 1:200m (and in addition for UK
customers, a 1:1 m & 1:250k scale UK road map).
Once a map card has been inserted, you can zoom
through the base mapping to see more detail. If you
have a toggleable map, you can switch between
different map layers at a particular point on the
same zoom level, e.g. you can flip between the two
scales (1:50k and 1:25k) and the base map.
3.6 Battery Icon LHS of Status Bar
The yellow battery indicator is solid for new or fully
charged batteries. Upon purchase, please give the
unit a good charge for best results prior to use. As
the charge decreases the icon is broken into four
bars which then reduce. When a single bar remains,
it is coded green then red. After some further time
(depending on the power source and activity), an
Software v3.0.11065
on-screen warning alerts that the unit will power off
in 30 seconds and a countdown is shown.
If you are using the rechargeable LiPol battery
the battery indicator shows a lightning flash whilst
charging, and an approximate %age level of chage
will be shown.
3.7 Start & Stop Icons
On the Right Hand Side of the Status Bar the
Record icon indicates that data logging is either
Insert
paused or recording. This can be accessed on the
TRIP LOG screen. When the unit has a lock, the
Card
record icon has a solid
icon is shown as 'empty' when there is no lock. A
red pause symbol indicates data logging is paused.
3.8 PLANNING Mode
Moving the rocker-pad or swiping the touchscreen
changes the screen from the
the PLANNING
Icon) will move away from the middle of the screen
as you control the rocker pad to move the map.
A visual cue that you are in planning mode is the
black Locator Square which has long crosshairs.
In PLANNING
Routes Menu, study the map using the rocker pad to
pan across the map, and set a
POI. Please Note
into PLANNING mode, and lose your current location.
To re-centre your location on the map - simply press
the U-R-Here button, left-hand side of the rocker-pad
3.9

SatSYNC

(Refer to SatSYNC User Guide)
SatSYNC is a free software available for download
from satmap.com. It allows you to connect your
Active 20 to a computer via a standard microUSB-
USA-A connection. With this software you can
upload/download routes, Objects of Interest, and
geotag photos. These files can then be shared via
Stop/
green arrowhead. The record
GPS MAP
screen to
screen. The blue circle (Location
mode you can plan routes via the
GoTo point/Marker/
- it is very easy to move the screen
10
e-mail or forums (e.g. Satmap Route Share Network)
or viewed on a computer-based mapping system
(e.g. Satmap-Xpedition Online Route Planner
and Google Earth), compatible with a number of
supported formats. The Satmap-Xpediton allows
the download of pre-planned routes, the upload of
routes for editing, and the printing of a paper version
of the route to take as back-up when outdoors.
To view your trail recorded by the Active 20 on a
computer:
1. You will need to Export your converted track.
Once you have finished your walk,
Log.
2. TRIP LOG
On the screen press
Menu > Convert Trail to Track
3. Connect the Active 20 to a computer via a USB
and open SatSYNC.
4. Select the converted track (.map
06-24_1502 167km.map) and press
copy to your desktop as a .gpx or
5. Import the file to your computer mapping system
(e.g. Online Route Planner and Google Earth).
© Satmap Systems Ltd 2017
Stop the Trip
file, e.g. 2017-
Export to
.kmz file.
