2.3 About this machine
2.3.3

Name of parts (MFP) (bizhub C658/C558/C458)

Front

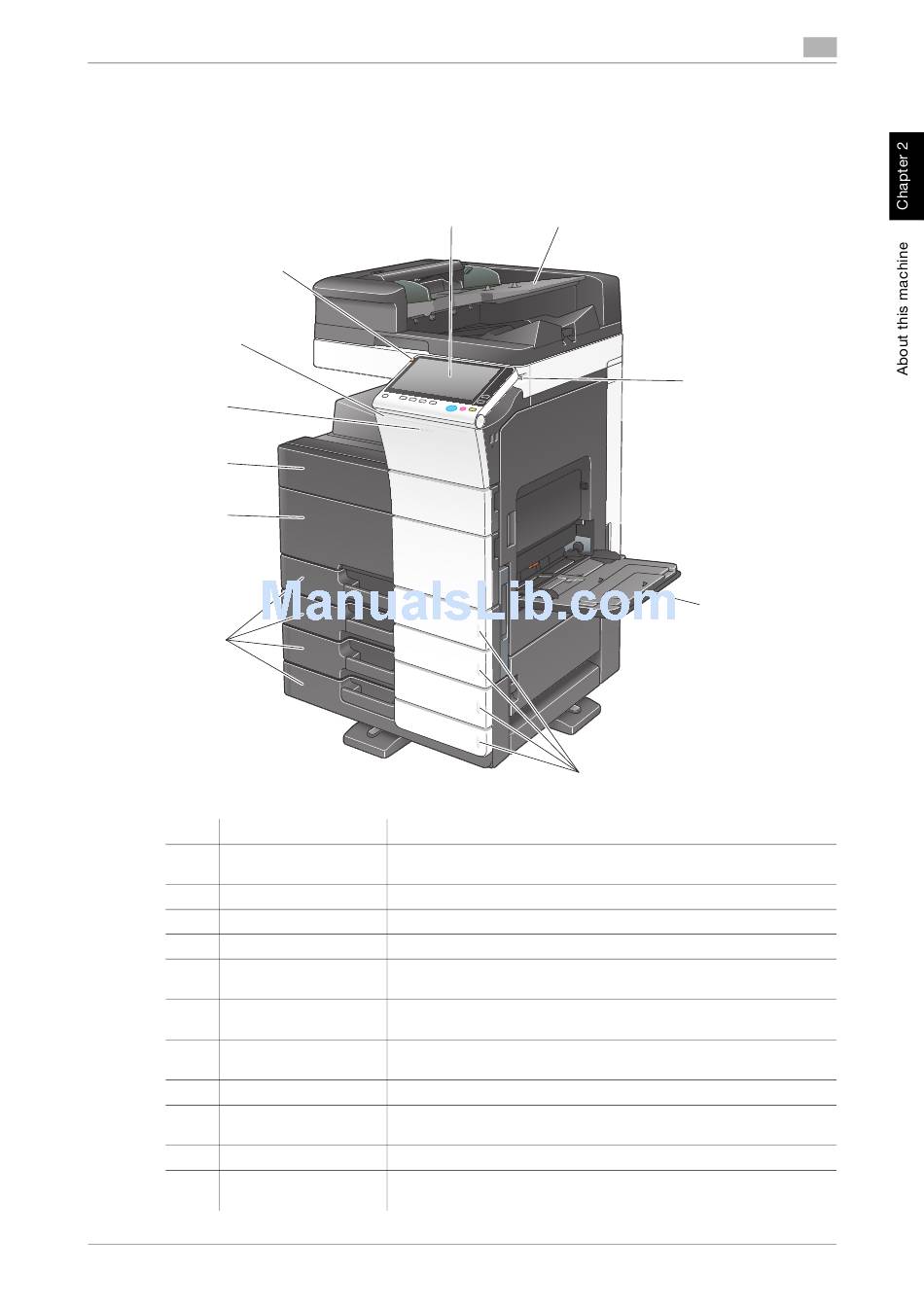

The illustration shows the main unit with Output Tray OT-506, and Paper Feed Cabinet PC-215.
11
10
9
8
7
6
No. Name
1 Control Panel
2 Original Tray
3 Stylus Pen
4 Bypass Tray
5 Paper-Empty Indica-
tor
6 Paper Tray
7 Lower Front Door
8 Upper Front Door
9 Data Indicator
10 Status Indicator
11 Warning Indicator
bizhub C658/C558/C458/C368/C308/C258
1 2
Description
Use the Touch Panel or buttons on this panel to operate this ma-
chine.
Load the original.
Used to operate the Touch Panel.
Used to load custom-size paper or special paper.
Flashes orange when a tray runs low on paper and lights up orange
when the tray runs out of paper.
Used to load standard-size paper. The number of trays varies de-
pending on the installed Paper Feed Cabinet.
Open this door to replace consumables or to maintenance this ma-
chine.
Open this door to replace a Toner Cartridge.
Flashes blue while this machine is receiving a job. If a job is currently
spooled, this indicator lamp lights up blue.
Flashes white during printing.
Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
3
4
5
2
