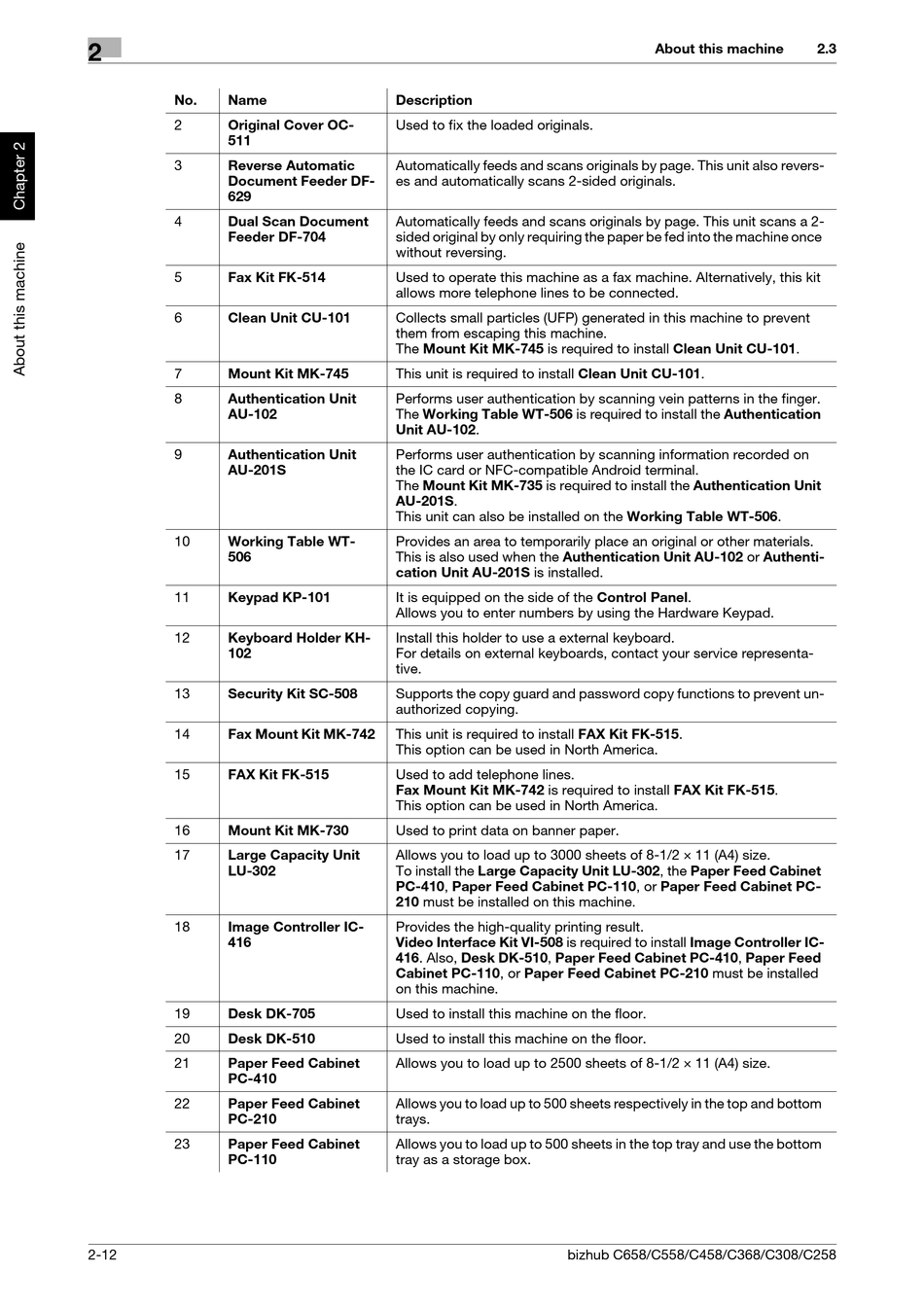

Konica Minolta bizhub C658 Quick Start Manual page 51

2
No. Name
2 Original Cover OC-
511
3 Reverse Automatic
Document Feeder DF-
629
4 Dual Scan Document
Feeder DF-704
5 Fax Kit FK-514
6 Clean Unit CU-101
7 Mount Kit MK-745
8 Authentication Unit
AU-102
9 Authentication Unit
AU-201S
10 Working Table WT-
506
11 Keypad KP-101
12 Keyboard Holder KH-
102
13 Security Kit SC-508
14 Fax Mount Kit MK-742
15 FAX Kit FK-515
16 Mount Kit MK-730
17 Large Capacity Unit
LU-302
18 Image Controller IC-
416
19 Desk DK-705
20 Desk DK-510
21 Paper Feed Cabinet
PC-410
22 Paper Feed Cabinet
PC-210
23 Paper Feed Cabinet
PC-110
2-12
Description
Used to fix the loaded originals.
Automatically feeds and scans originals by page. This unit also revers-
es and automatically scans 2-sided originals.
Automatically feeds and scans originals by page. This unit scans a 2-
sided original by only requiring the paper be fed into the machine once
without reversing.
Used to operate this machine as a fax machine. Alternatively, this kit
allows more telephone lines to be connected.
Collects small particles (UFP) generated in this machine to prevent
them from escaping this machine.
The Mount Kit MK-745 is required to install Clean Unit CU-101.
This unit is required to install Clean Unit CU-101.
Performs user authentication by scanning vein patterns in the finger.
The Working Table WT-506 is required to install the Authentication
Unit AU-102.
Performs user authentication by scanning information recorded on
the IC card or NFC-compatible Android terminal.
The Mount Kit MK-735 is required to install the Authentication Unit
AU-201S.
This unit can also be installed on the Working Table WT-506.
Provides an area to temporarily place an original or other materials.
This is also used when the Authentication Unit AU-102 or Authenti-
cation Unit AU-201S is installed.
It is equipped on the side of the Control Panel.
Allows you to enter numbers by using the Hardware Keypad.
Install this holder to use a external keyboard.
For details on external keyboards, contact your service representa-
tive.
Supports the copy guard and password copy functions to prevent un-
authorized copying.
This unit is required to install FAX Kit FK-515.
This option can be used in North America.
Used to add telephone lines.
Fax Mount Kit MK-742 is required to install FAX Kit FK-515.
This option can be used in North America.
Used to print data on banner paper.
Allows you to load up to 3000 sheets of 8-1/2 e 11 (A4) size.
To install the Large Capacity Unit LU-302, the Paper Feed Cabinet
PC-410, Paper Feed Cabinet PC-110, or Paper Feed Cabinet PC-
210 must be installed on this machine.
Provides the high-quality printing result.
Video Interface Kit VI-508 is required to install Image Controller IC-
416. Also, Desk DK-510, Paper Feed Cabinet PC-410, Paper Feed
Cabinet PC-110, or Paper Feed Cabinet PC-210 must be installed
on this machine.
Used to install this machine on the floor.
Used to install this machine on the floor.
Allows you to load up to 2500 sheets of 8-1/2 e 11 (A4) size.
Allows you to load up to 500 sheets respectively in the top and bottom
trays.
Allows you to load up to 500 sheets in the top tray and use the bottom
tray as a storage box.
bizhub C658/C558/C458/C368/C308/C258
About this machine 2.3
