bizhub C368/C308/C258

83-5/8 (2124)
25-7/8
(658)
bizhub C368/C308/C258 + DF-629 + PC-210 + FS-534 SD + RU-513 + LU-302
43-6/9 (1107)
6-11/16
(170)
45-3/4 (1162)
34-1/8
(867)
bizhub C368/C308/C258 + DF-629 + PC-210 + JS-506 + MK-730 + CU-101 + MK-745
NOTICE
Be sure to allow a clearance of 8 inches (200 mm) or more at the back of this machine for the ventilation duct.
1-24
38-13/16 18-7/8
(986) (480)
36-7/8
(937)
bizhub C368/C308/C258 + DF-704 + PC-210 + FS-533
11-5/8
(295)

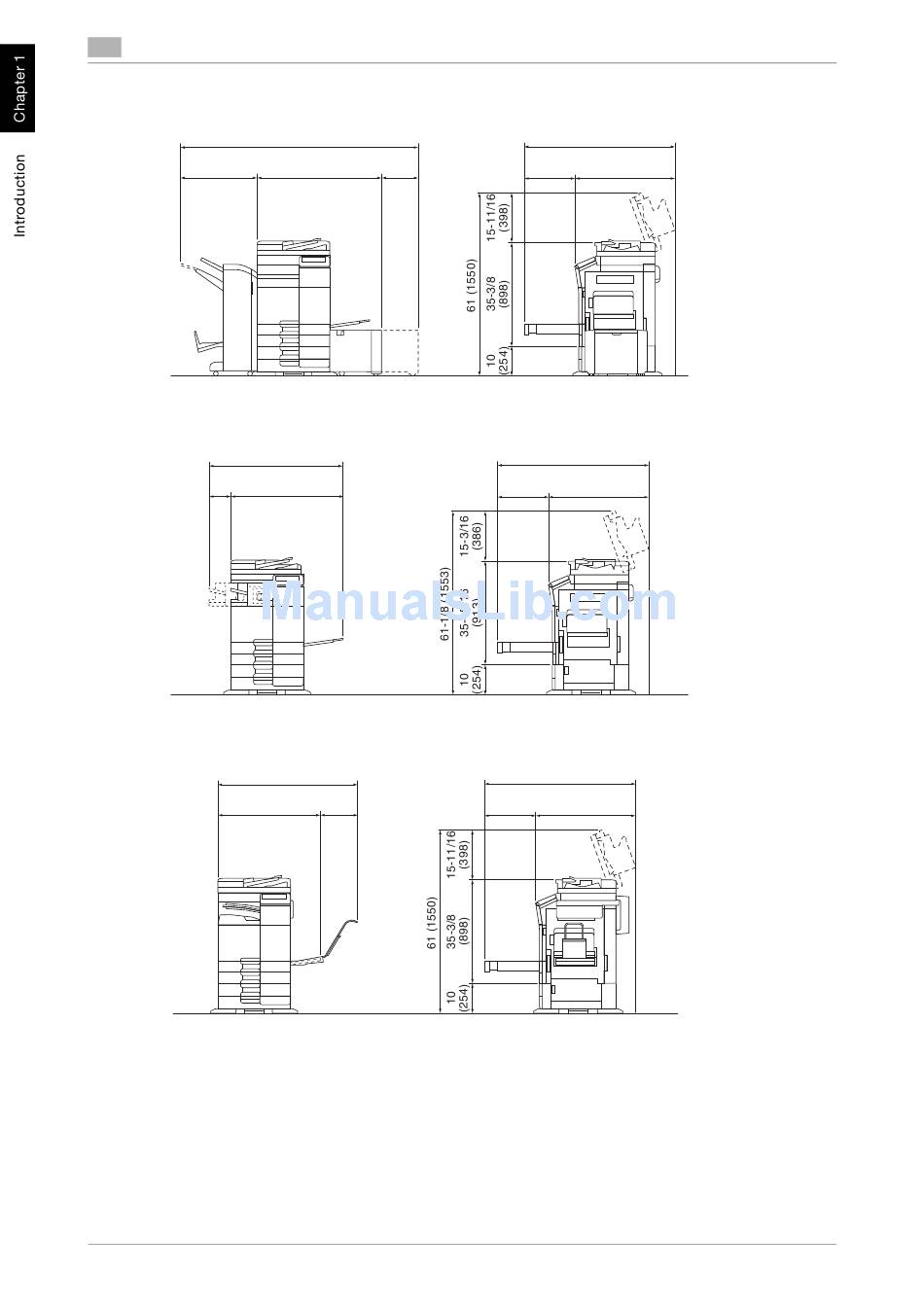

Space requirements
48-13/16 (1240)
16-7/8 31-15/16
(428) (812)
49-1/16 (1246)
16-7/8 32-3/16
(428) (818)
48-13/16 (1240)
16-7/8 31-15/16
(428) (812)
bizhub C658/C558/C458/C368/C308/C258
1.7
Unit: inch (mm)
Unit: inch (mm)
Unit: inch (mm)
