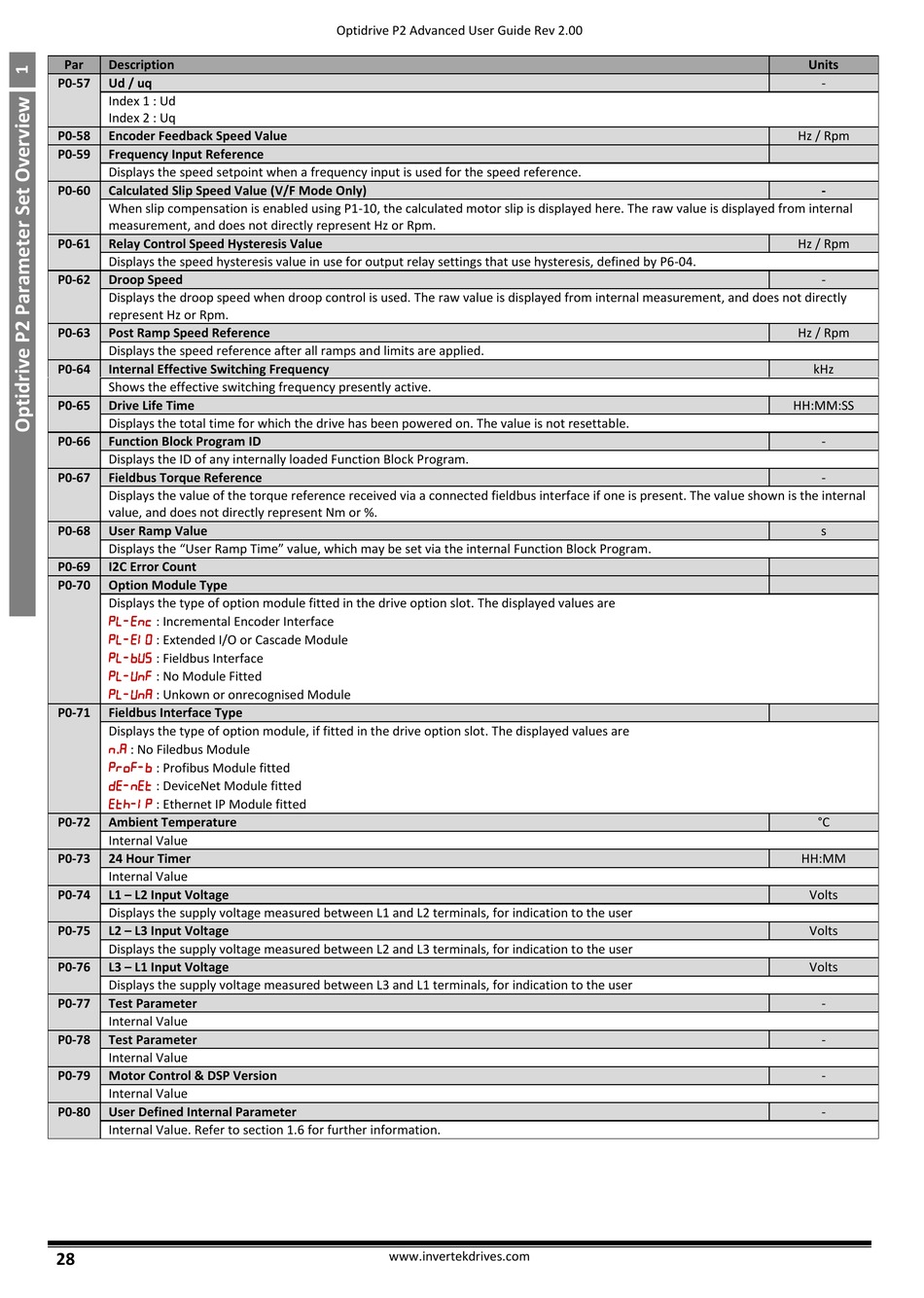

Invertek optidrive cp2 User Manual page 28

Par Description
P0-57 Ud / uq
Index 1 : Ud
Index 2 : Uq
P0-58 Encoder Feedback Speed Value
P0-59 Frequency Input Reference
Displays the speed setpoint when a frequency input is used for the speed reference.
P0-60 Calculated Slip Speed Value (V/F Mode Only)
When slip compensation is enabled using P1-10, the calculated motor slip is displayed here. The raw value is displayed from internal
measurement, and does not directly represent Hz or Rpm.
P0-61 Relay Control Speed Hysteresis Value
Displays the speed hysteresis value in use for output relay settings that use hysteresis, defined by P6-04.
P0-62 Droop Speed
Displays the droop speed when droop control is used. The raw value is displayed from internal measurement, and does not directly
represent Hz or Rpm.
P0-63 Post Ramp Speed Reference
Displays the speed reference after all ramps and limits are applied.
P0-64 Internal Effective Switching Frequency
Shows the effective switching frequency presently active.
P0-65 Drive Life Time
Displays the total time for which the drive has been powered on. The value is not resettable.
P0-66 Function Block Program ID
Displays the ID of any internally loaded Function Block Program.
P0-67 Fieldbus Torque Reference
Displays the value of the torque reference received via a connected fieldbus interface if one is present. The value shown is the internal
value, and does not directly represent Nm or %.
P0-68 User Ramp Value
Displays the "User Ramp Time" value, which may be set via the internal Function Block Program.
P0-69 I2C Error Count
P0-70 Option Module Type
Displays the type of option module fitted in the drive option slot. The displayed values are

: Incremental Encoder Interface

: Extended I/O or Cascade Module

: Fieldbus Interface

: No Module Fitted

: Unkown or onrecognised Module
P0-71 Fieldbus Interface Type
Displays the type of option module, if fitted in the drive option slot. The displayed values are
.
: No Filedbus Module

: Profibus Module fitted

: DeviceNet Module fitted

: Ethernet IP Module fitted
P0-72 Ambient Temperature
Internal Value
P0-73 24 Hour Timer
Internal Value
P0-74 L1 – L2 Input Voltage
Displays the supply voltage measured between L1 and L2 terminals, for indication to the user
P0-75 L2 – L3 Input Voltage
Displays the supply voltage measured between L2 and L3 terminals, for indication to the user
P0-76 L3 – L1 Input Voltage
Displays the supply voltage measured between L3 and L1 terminals, for indication to the user
P0-77 Test Parameter
Internal Value
P0-78 Test Parameter
Internal Value
P0-79 Motor Control & DSP Version
Internal Value
P0-80 User Defined Internal Parameter
Internal Value. Refer to section 1.6 for further information.
28
Optidrive P2 Advanced User Guide Rev 2.00
www.invertekdrives.com
Units
-
Hz / Rpm
-
Hz / Rpm
-
Hz / Rpm
kHz
HH:MM:SS
-
-
s
°C
HH:MM
Volts
Volts
Volts
-
-
-
-
