- Page 1 Polysonics SX30 Portable Doppler Flowmeter User Guide P/N 1-0563-007 Revision J Part of Thermo Fisher Scientific...
- Page 3 Polysonics SX30 Portable Doppler Flowmeter User Guide P/N 1-0563-007 Revision J...
- Page 5 © 2000 Thermo Fisher Scientific Inc. All rights reserved. “Sil-Glyde” is a registered trademark of American Grease Stick Company. All other trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries. Thermo Fisher Scientific (Thermo Fisher) makes every effort to ensure the accuracy and completeness of this manual.
- Page 6 This page intentionally left blank.
-
Page 7: Table Of Contents
Reset ....................4-1 Config....................4-1 FFT..................... 4-1 Logset ....................4-1 Accessing, Saving, & Loading Log Files..........4-2 Trend....................4-2 Rate....................4-2 Max....................4-2 Chapter 5 Troubleshooting & Maintenance..............5-1 General Troubleshooting ..............5-1 Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 8 Signal Quality & Strength..............5-5 Maintenance ..................5-6 General .................... 5-6 Upgrades..................... 5-6 Contact Information ................5-7 Warranty..................... 5-8 Appendix A Obtaining Pipe ID .....................A-1 Appendix B Toxic & Hazardous Substances Tables* .............B-1 Polysonics SX30 User Guide Thermo Fisher Scientific...
-
Page 9: Chapter 1 Product Overview

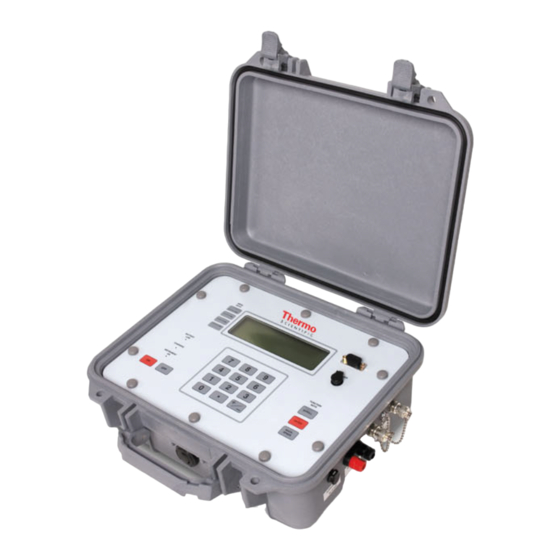

Chapter 1 Product Overview Introduction Thermo Fisher’s Polysonics SX30 portable Doppler flowmeter generates two independent ultrasonic signals at different frequencies. By correlating these frequencies, the instrument automatically identifies and eliminates noise errors from sources such as variable frequency drives. In addition, operation of the instrument is enhanced by an Expert System that allows the flowmeter to automatically “learn”... -
Page 10: Specifications
Two encapsulated dual frequency sensor heads Encased in stainless steel shrouds, with stainless steel straps and quick clamps Cable length: 16 ft. (5 m) Weight: 11 lb. (4.9 kg) with 12-hr. battery Dimensions: Refer to Figure 1–1 Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 11: Functional
Display: Backlit, 240 x 60 dot, high resolution graphics display Data Logger: 90000 points, programmable in intervals of 30 s, 1, 5, 15, 30, and 60 min. Programming: Via HydraScan software or integral keypad Thermo Fisher Scientific Polysonics SX30 User Guide... -
Page 12: Environmental
Without CSA approval: -4°F to 140°F (-20°C to 60°C) Environmental Pollution degree: 2 Installation category: I for meter; II for battery charger Approvals Non-Hazardous Area Certification: Designed to meet CE and NRTL/C (CSA) for non-hazardous areas Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 13: Chapter 2 Installation & Wiring
E: Sediment collects at the bottom of the horizontal pipe ● Note Selecting the proper installation location is essential to flow measurement reliability. Each application is unique and may require a variation of installation locations. ▲ Thermo Fisher Scientific Polysonics SX30 User Guide 2-1... - Page 14 Figure 2–2. 3. Attach the transducers to the pipe strap: a. Use a screwdriver to loosen the mounting screw and slide the lock back on each transducer. Figure 2–3. Polysonics SX30 User Guide Thermo Fisher Scientific...
- Page 15 Remove the strap from the pipe, and apply sonic coupling compound to each transducer surface. f. Reposition the strap on the pipe, placing the transducers in the proper positions. Thermo Fisher Scientific Polysonics SX30 User Guide...
-
Page 16: Wiring
Note Increasing the pipe strap tension improves signal transmission. ▲ Figure 2–6. Wiring Wiring is accomplished using the connections on the side of the instrument enclosure. Refer to Figure 2–7 and the following sections. Figure 2–7. Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 17: Dc Auxiliary Power
4–20 mA Current 20 mA Current Locate the red (in) and black (out) 4-20 mA connectors on the side of the instrument. Connect as shown in Figure 2–8. Loop Loop Figure 2–8. Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 18 This page intentionally left blank.
-
Page 19: Chapter 3 Operation & Configuration
2. When the Adjust Contrast screen appears, press the +/- key again, and the software scrolls through the levels of contrast. Press the +/- key to stop the scrolling. 3. Use the scroll and backspace keys to make fine adjustments to the contrast. Thermo Fisher Scientific Polysonics SX30 User Guide 3-1... -
Page 20: Configuration
(Table 6–2 in Chapter 6) if you receive one of the following messages: Invalid Signal, Can’t Learn ● No Flow, Can’t Learn ● Warning Low S Strength ● Warning Poor S Strength ● Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 21: Manual Mode
Increasing the coefficient increases the response time to changes. Keep damping at a minimum unless the flow rate fluctuates wildly. In this case, increase damping just enough to reduce the fluctuation to an acceptable degree. Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 22 Determine the flow using another source, and calculate the site calibration adjustment by dividing the actual flow by the meter flow. b. Enter the site calibration adjustment. c. Select Next. Polysonics SX30 User Guide Thermo Fisher Scientific...
-
Page 23: Hydrascan
Enter to select. Press Next to complete the configuration process. HydraScan You can also use the HydraScan software to configure the instrument. Refer to the HydraScan user guide (P/N 1-0563-005). Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 24 This page intentionally left blank.
-
Page 25: Flow Menu Items
The meter saves the data in sequenced files (0 to 9). The meter advances to the next file each time the logger is turned on or when a file logs more than 9000 points. ▲ Thermo Fisher Scientific Polysonics SX30 User Guide 4-1... -
Page 26: Accessing, Saving, & Loading Log Files
The meter records the maximum flow, date, and time of the maximum flow since the last reset. You can view this information from the Max screen. Reset the data by changing the Max field selection from “Set” to “Clear.” Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 27: Chapter 5 Troubleshooting & Maintenance
4. Restart meter. 1. Turn meter off, and remove the transducers. 2. Grind the pipe surface if it is rough or coated. 3. Remount the transducers. 4. Restart the meter. See if warning clears. Thermo Fisher Scientific Polysonics SX30 User Guide 5-1... -
Page 28: Operating Mode Warnings
(Table 5–3) and a reason for the warning (Table 5–4). Warnings Table 5–3. Warning Level of Severity Warning Flow reading marginal Alarm Flow reading unreliable Failed/No Flow Meter will not read flow and will read zero until fault clears Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 29: Checking The Fft
No Doppler Ultrasound signal not 1. Refer to Table 5–1 and complete action reflection transmitting codes A-D, checking the meter after performing each action to see if the I or II problem was corrected. Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 30 Troubleshooting & Maintenance General Troubleshooting Figure 5–1. Ideal Doppler shape Figure 5–2. Broadband noise Figure 5–3. Steady noise spike with Doppler Figure 5–4. Fluctuating Doppler profile Polysonics SX30 User Guide Thermo Fisher Scientific...
-
Page 31: Signal Quality & Strength
Refer to the following figure to determine the quality of the application. Also refer to Table 5–1 for actions you can take to attempt to improve signal quality and strength. Figure 5–7. Thermo Fisher Scientific Polysonics SX30 User Guide... -
Page 32: Maintenance
Contact Thermo Fisher to obtain the most recent versions of the following software: WinLoader (used to upgrade meter software) ● Meter software ● HydraScan (data logging software) ● Polysonics SX30 User Guide Thermo Fisher Scientific... -
Page 33: Contact Information
3. Include a letter fully explaining the symptoms of the failure as well as detail describing the application where the unit was being operated. Also include a contact name, phone number, and purchase order authorizing repairs. Thermo Fisher Scientific Polysonics SX30 User Guide... -
Page 34: Warranty
5. Send the unit freight-paid to the address above. Warranty Thermo Scientific products are warranted to be free from defects in material and workmanship at the time of shipment and for one year thereafter. Any claimed defects in Thermo Scientific products must be reported within the warranty period. -
Page 35: Appendix A Obtaining Pipe Id
13.562 13.124 12.812 15.250 15.000 18.00 17.670 17.500 17.376 17.124 16.876 16.500 16.124 15.688 15.255 14.876 14.438 17.250 17.000 20.00 19.634 19.500 19.250 19.000 18.812 18.376 17.938 17.438 17.000 16.500 16.062 19.250 19.000 Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 36 84.10 All measurements in inches Note For pipes with cement linings, reduce the pipe ID by twice the lining thickness. Standard and double cement lining thicknesses are listed in the next table. ▲ Polysonics SX30 User Guide Thermo Fisher Scientific...
- Page 37 49.22 49.08 48.94 57.10 55.96 55.80 55.64 55.48 55.32 55.16 55.00 All measurements in inches Note For pipes with cement linings, reduce the pipe ID by twice the lining thickness listed above. ▲ Thermo Fisher Scientific Polysonics SX30 User Guide...
- Page 38 This page intentionally left blank.
-
Page 39: Appendix B Toxic & Hazardous Substances Tables
Appendix B Toxic & Hazardous Substances Tables* *English and Chinese versions. The Toxic and Hazardous Substances tables can be found on the following page. Thermo Fisher Scientific Polysonics SX30 User Guide... - Page 40 Toxic & Hazardous Substances Tables* Polysonics SX30 User Guide Thermo Fisher Scientific...
- Page 41 Thermo Fisher Scientific 81 Wyman Street P.O. Box 9046 Waltham, Massachusetts 02454-9046 United States www.thermofisher.com...
