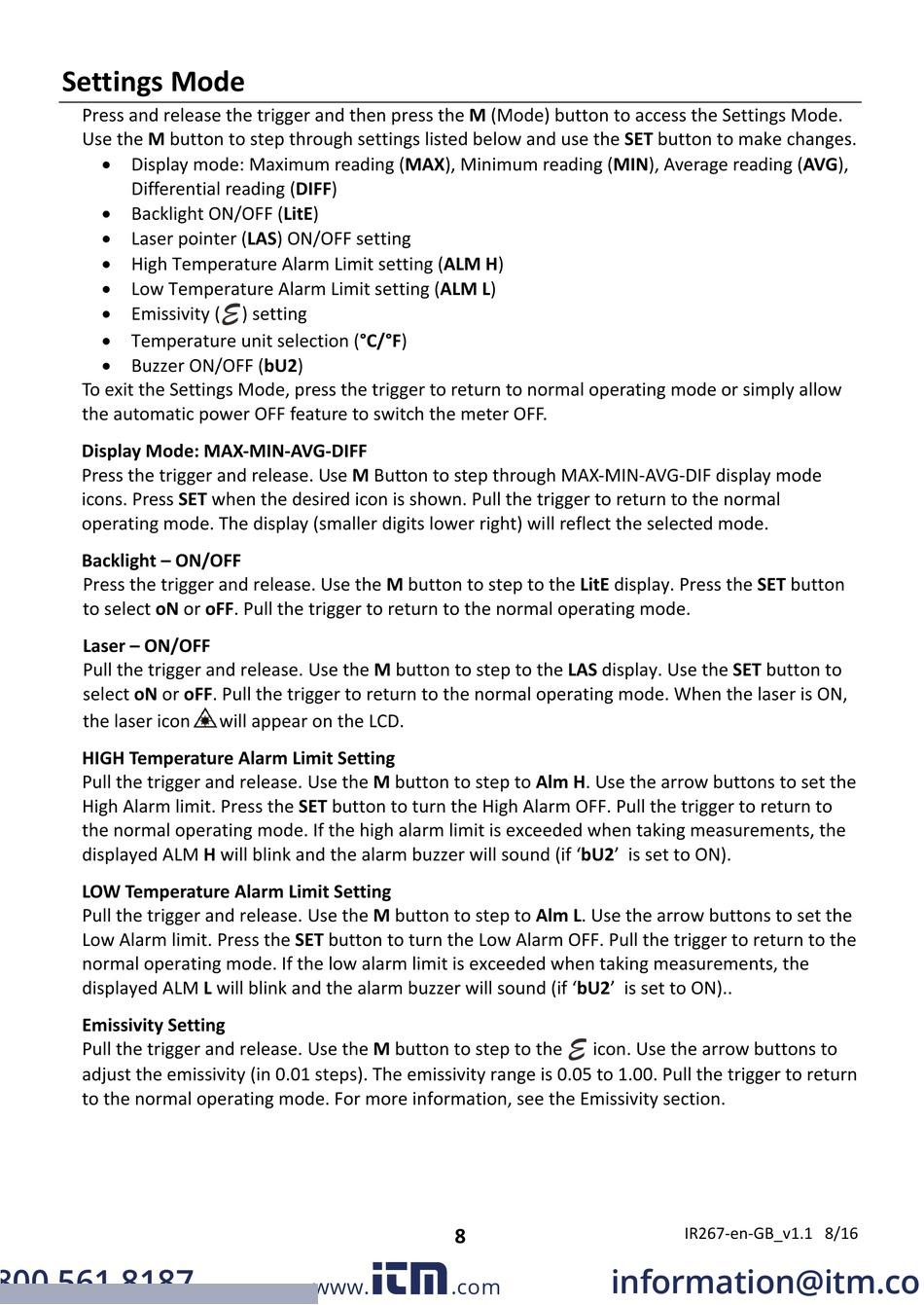

Settings Mode
Press and release the trigger and then press the M (Mode) button to access the Settings Mode.
Use the M button to step through settings listed below and use the SET button to make changes.
 Display mode: Maximum reading (MAX), Minimum reading (MIN), Average reading (AVG),
Differential reading (DIFF)
 Backlight ON/OFF (LitE)
 Laser pointer (LAS) ON/OFF setting
 High Temperature Alarm Limit setting (ALM H)
 Low Temperature Alarm Limit setting (ALM L)
 Emissivity (
 Temperature unit selection (°C/°F)
 Buzzer ON/OFF (bU2)
To exit the Settings Mode, press the trigger to return to normal operating mode or simply allow
the automatic power OFF feature to switch the meter OFF.
Display Mode: MAX‐MIN‐AVG‐DIFF
Press the trigger and release. Use M Button to step through MAX‐MIN‐AVG‐DIF display mode
icons. Press SET when the desired icon is shown. Pull the trigger to return to the normal
operating mode. The display (smaller digits lower right) will reflect the selected mode.
Backlight – ON/OFF
Press the trigger and release. Use the M button to step to the LitE display. Press the SET button
to select oN or oFF. Pull the trigger to return to the normal operating mode.
Laser – ON/OFF
Pull the trigger and release. Use the M button to step to the LAS display. Use the SET button to
select oN or oFF. Pull the trigger to return to the normal operating mode. When the laser is ON,
the laser icon
HIGH Temperature Alarm Limit Setting
Pull the trigger and release. Use the M button to step to Alm H. Use the arrow buttons to set the
High Alarm limit. Press the SET button to turn the High Alarm OFF. Pull the trigger to return to
the normal operating mode. If the high alarm limit is exceeded when taking measurements, the
displayed ALM H will blink and the alarm buzzer will sound (if 'bU2' is set to ON).
LOW Temperature Alarm Limit Setting
Pull the trigger and release. Use the M button to step to Alm L. Use the arrow buttons to set the
Low Alarm limit. Press the SET button to turn the Low Alarm OFF. Pull the trigger to return to the
normal operating mode. If the low alarm limit is exceeded when taking measurements, the
displayed ALM L will blink and the alarm buzzer will sound (if 'bU2' is set to ON)..
Emissivity Setting
Pull the trigger and release. Use the M button to step to the
adjust the emissivity (in 0.01 steps). The emissivity range is 0.05 to 1.00. Pull the trigger to return
to the normal operating mode. For more information, see the Emissivity section.
