Power Supply Mounting & Installation - Feniex C-4200 Instruction Manual

Mounting Power Supply
Follow the instructions below when mounting and installing the 4200 relay power supply.
To avoid warranty concerns, do not mount the power supply in a moist or exterior
location.
Wiring
Step 1: Locate the 8 Pin terminal blocks
provided.
Step 2: Insert the six blocks in their
desired locations. Press down firmly in
place to ensure connectivity.
Step 3: Firmly secure each wire into its
desired port.
Step 4: Firmly secure the RJ45 harness
(previously connected to controller) into
the marked RJ45 port.
Step 5: Apply power and ground to the
2 port Molex terminal block (shown in
figure 3.4). Using a Phillips screwdriver,
firmly clamp down on the wire. A poor
connection may result in warranty issues.
Step 6: Ensure that each 30 amp fuse is
not loose and is firmly connected.
9
F E NIE X . 2016 IN STR U CT I ON MA NUA L
WE B. w w w.feniex .co m

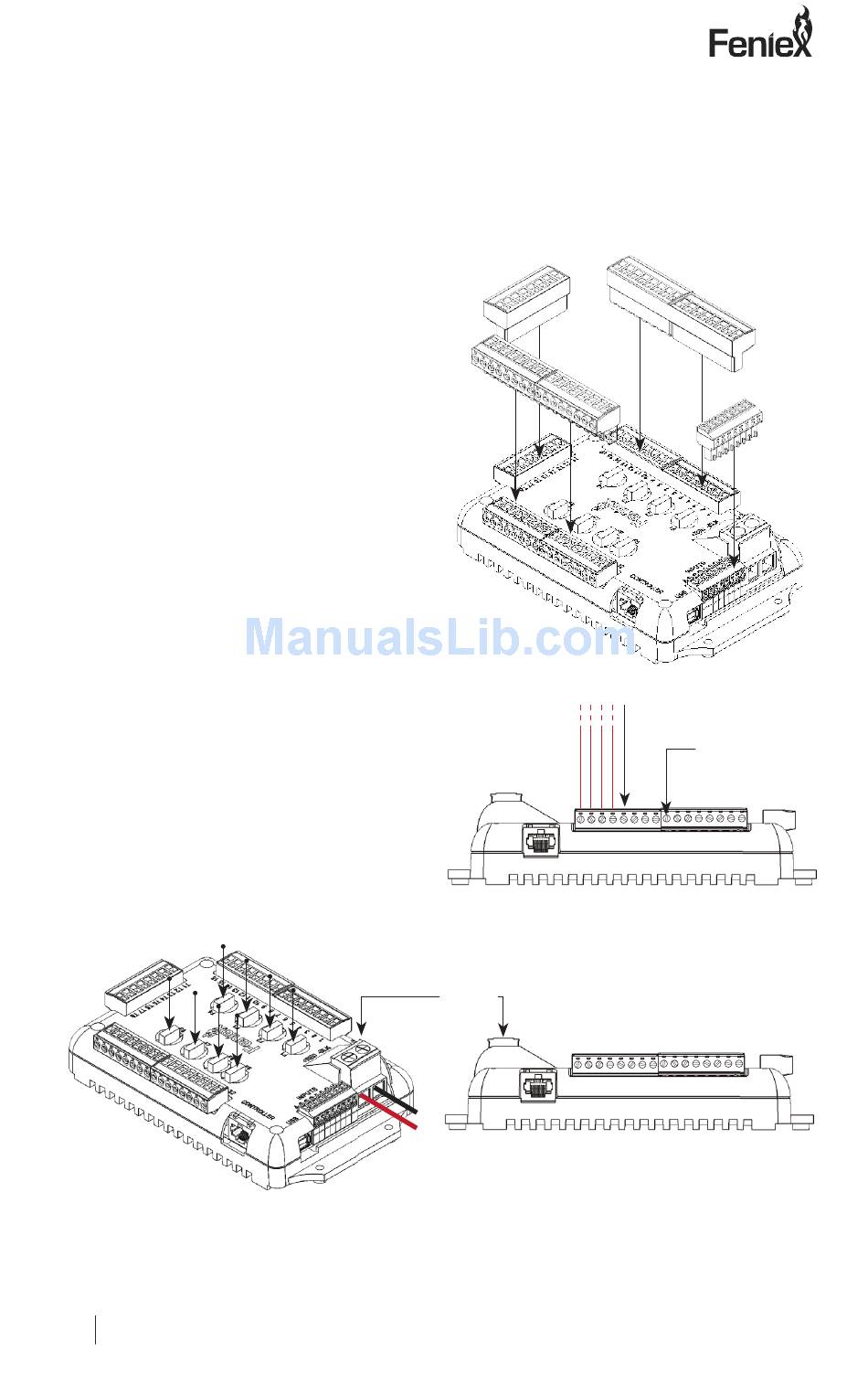

Figure 3.4
2 port
Molex
Secure wire with
screwdriver.
TM
V3.1
terminal
blocks
Tighten with
screwdriver
to secure
connection.
