Feniex C-4200 Instruction Manual page 13

Control Head Programming
Step 1: Open the Feniex Controller
software (downloaded from
www.feniex.com (reference p.12).
Step 2: Connect the provided USB
wire to the controller. Connect the
other end to the USB port on
the computer.

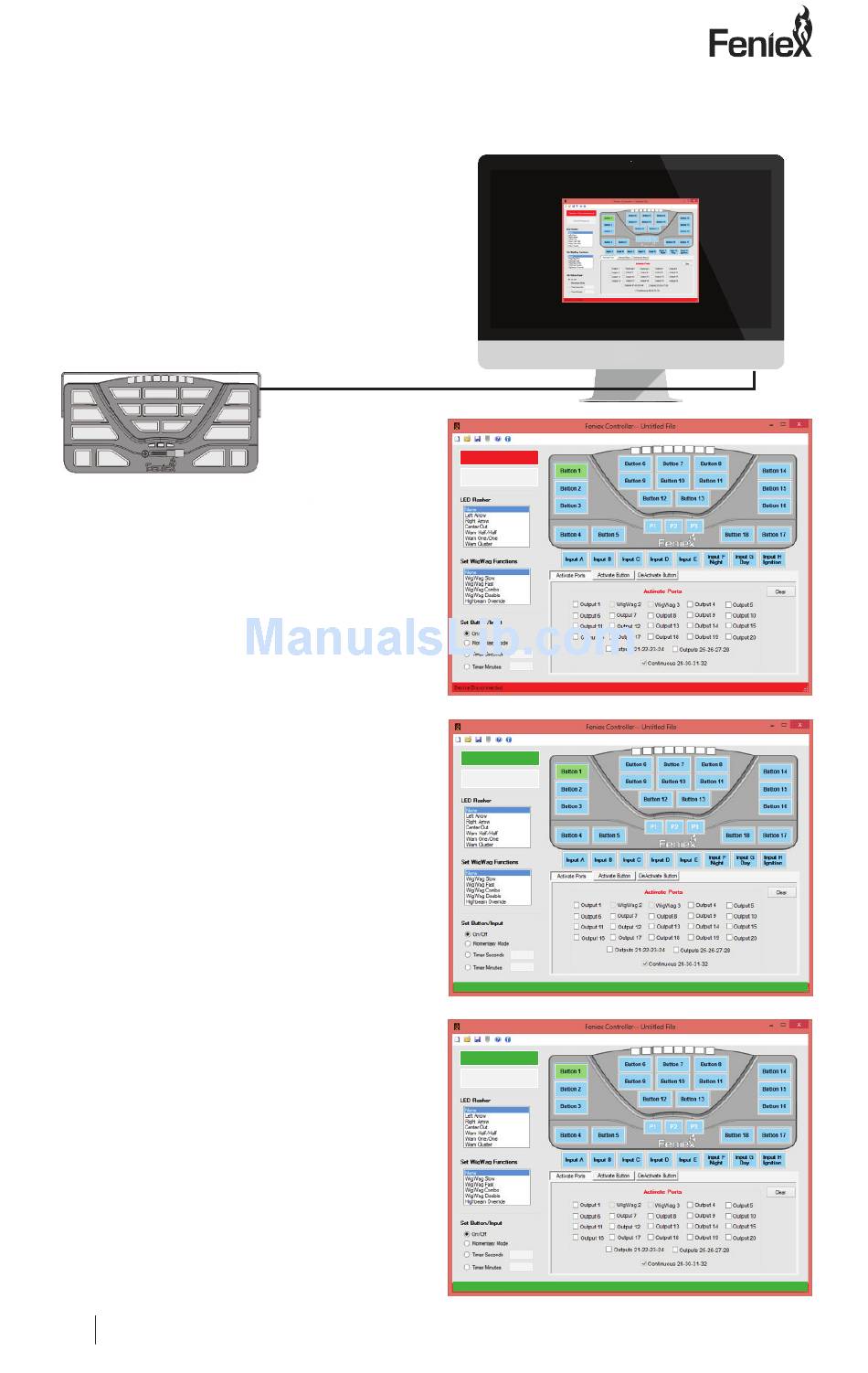

When the controller is plugged in, the red
box reading Device Disconnected changes
from red to green and reads: Device
Connected (see figures 5.2 and 5.3).
Step 3: Program the buttons using the
software.
Use the help icon (see figure 5.1) for
instructional videos on the following
categories:
• Input Programming
• Traffic Controller
• WigWag
• External Siren
• Button Programming
Step 4: Save XML file
Step 5: When finished, select: Send
Program (see figure 5.4).
Step 6: Disconnect the controller from the
computer when software states: Device
Successfully Programmed.
Important! Set WigWag Functions to outputs
2 - 3. See FAQ on page 16 for more info.
