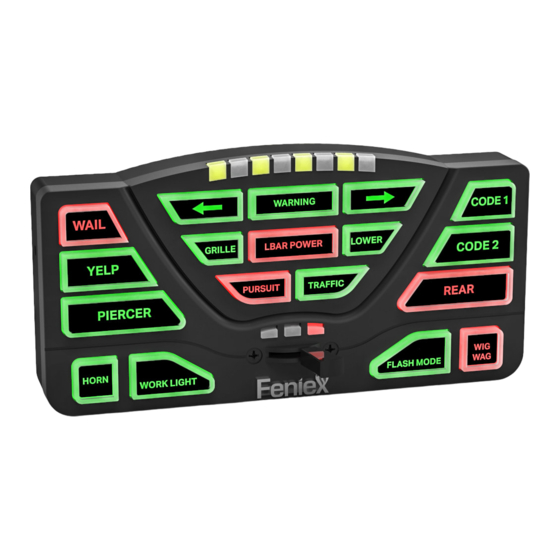

4200-DL
Model # C-4200-DL
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the
United States and other countries preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the
exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in the Feniex products described in this Price List may not be copied, reproduced,
distributed, merged or modified,transmitted, transcribed, stored in retrieval system or translated into any language or computer language, in any
form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
Patent & Trademark Office.

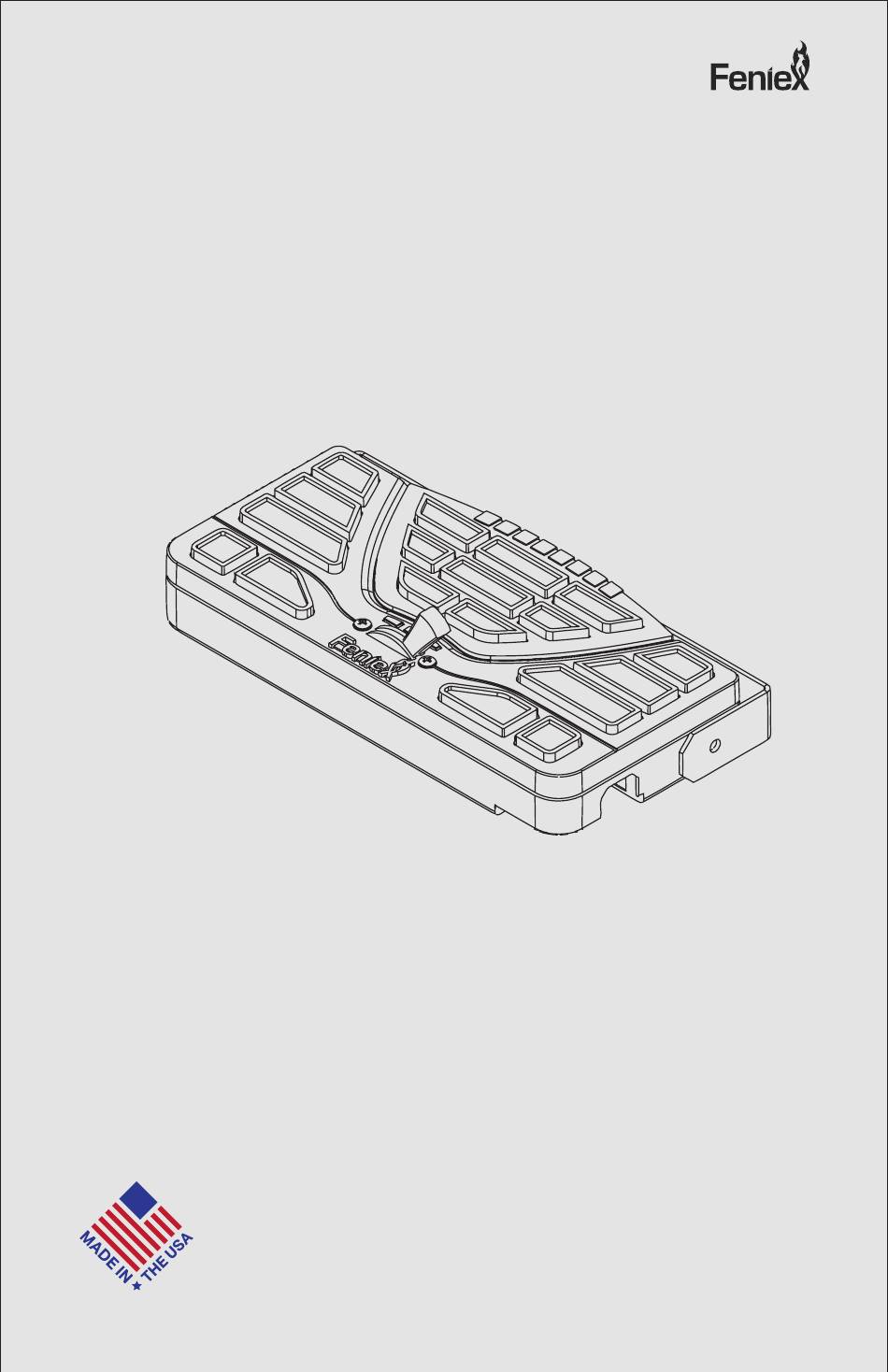

4200-DL Controller
Instruction Manual
This instruction manual serves as a
guide for the
4200-DL
IMPORTANT!
Please read through all
provided instructions and any listed
warnings in regards to product use.
FE N I E X .
2 017
INSTR U CTION M A NUA L
W E B. w w w.fe niex.com
Controller.
V.2.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Feniex 4200-DL
Summary of Contents for Feniex 4200-DL
- Page 1 Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
-
Page 2: Table Of Contents
Table of Contents V2.0 Safety Regulations & Warranty Service after Expiration Copyright Feniex Product Copyright Box Contents System Specification Control Head Mounting Vertical Mount Surface Mount Relay Wiring Diagram Configuration Record Configuration Record Diagram Control Head Programming Help Bluetooth Bluetooth Hardware... -
Page 3: Safety Regulations & Warranty
Feniex Product Copyrights product. The products described in this document are the property of Feniex Industries, Inc. It is Warranty furnished by express license agreement only Feniex Industries, Inc. warrants to the original... -
Page 4: Box Contents
Box contents V2.0 RJ45 RJ45 U-Shaped Cable Cable Cable Bracket Slide Switch Legend/ Label Sheets F E NIE X . 2017 I NST RU CT ION MA N UA L WE B. w w w.feni ex .co m 4200 Relay... -
Page 5: System Specification
System Specification V2.0 Below you will find the key specifications for the 4200-DL system. Review the information to better determine your installation needs. Warning! Do not deviate from the specified voltage. System Specification: Input Voltage: 11VDC to 16VDC Temperature Range: -40C°... -
Page 6: Control Head Mounting
Control Head V2.0 Decide which mounting option you would like to implement for the 4200 controller: Option A is a vertical mount, allowing the controller to hang down. Option B is a surface mount; with the bracket mounting from the rear of the controller. The controller can also be mounted with a custom face on a console mount. -
Page 7: Relay Wiring Diagram
RJ45 port on this unit to a 4200 datalink unit Warning! Utilizing non- factory screws and mounting brackets may result in loss of warranty coverage. FE NIE X . 2017 I NSTRU CTI ON MANUAL WE B. w w w.feniex.com... - Page 8 Important! Park Kill or High Beam Only use either RJ45 Override or USB at one time. 12V- 12V- e.g: headlight Park Kill Input Section FE NIE X . 2017 I NSTRU CTI ON MANUAL WE B. w w w.feniex.com...
-
Page 9: Configuration Record
Configuration Record V2.0 Use this document to record the products connected to each outlet to assist when programming the control head with the provided software package. Outputs: Buttons: (1 - 18, P1 - P3) Inputs: Outputs / Buttons: A (-) B (-) C (+) D (+) -
Page 10: Configuration Record Diagram
Configuration Record diagram V2.0 F E NIE X . 2017 I NST RU CT ION MA N UA L WE B. w w w.feni ex .co m... -
Page 11: Control Head Programming
Control Head Programming V2.0 To program the Feniex 4200 Controller, first visit www.feniex.com/s-4200 to download the software. Click on "Literature" and select "Software Download" Step 1: Click Run to continue Step 2: Select your location to Install Help For assistance on how to use the software, please click the help button located on the top bar in the software interface. - Page 12 Control Head Programming V2.0 Figure 5.1 Step 3: Open the Feniex 4200 Controller software. Step 4: Connect the provided USB wire to the controller, and connect the other end of the USB port to the computer. Figure 5.2 Step 5: When the controller is plugged in, the red box reading "Device Disconnected"...
- Page 13 Control Head Programming V2.0 Ports 1-20 can be activated by: • Button • Input • Slide Switch (p1, p2, p3) Step 6: Activate Ports Select button, input or slide switch and then check the box of the desired port. You can select as many ports as needed with each button programmed. Each output is capable of 10 amps.
- Page 14 Control Head Programming V2.0 Step 7: Activate Button This function programs the slide switch (p1, p2, p3) or inputs A-E to activate a button. Please note a button cannot activate another button. Multiple buttons can be activated through the slide switch or input set up. Step 8: DeActivate Button This function allows any input, slide switch or button to turn off an activated button.
- Page 15 Control Head Programming V2.0 Step 9: Timer The timer function allows any button to continue functioning for a set period of time after it's been disabled. Timer can be set for any duration between 1 second to 1 hour. This applies for all inputs A-H and all buttons. The slide switch cannot be programmed for timer or momentary functions.
- Page 16 Control Head Programming V2.0 Step 10: Siren This function only works when you have a 100W or 200W Storm siren connected. Select the desired switch (input, slide, or button), then select the tone from the drop down menu. If using a 100W siren, only select speaker 1. For 200W sirens, make sure to highlight speaker 1 and speaker 2.
- Page 17 Control Head Programming V2.0 Step 12: Dual Delay This function works when a 200W Storm siren is connected to the 4200. Dual delay is a check box at the bottom of the siren section. When using a 200W siren and have one switch activating the same siren tone, dual delay will offset the 2 tones so that they alternate.
- Page 18 Control Head Programming V2.0 Step 14: Light Bar This function works when you have a full size lightbar connected. To activate a function of the lightbar, select a desired switch (input, slide switch, button) then select the lightbar function. Multiple functions can be selected on 1 switch. F E NIE X .
-
Page 19: Bluetooth
V2.0 Bluetooth Hardware The Feniex 4200 has the option of being controlled via a smart phone or tablet. To enable this feature you will require the Feniex in-line Bluetooth module (part #: C-4200WB- AD for Android Bluetooth; C-4200WB-AP for Apple Bluetooth). Follow the installation instructions below to pair the 4200 with a smart phone or tablet. -
Page 20: Bluetooth Software
Step 5: Press and hold Bluetooth module, the circle pairing switch button on next to “connect” changes Feniex Bluetooth device for 3 from red to green. seconds. 4200 App Requirements: Apple App should work on the following... -
Page 21: Faq
"Ignition Input" (Input H). the positive side of the high beam or low beam. Be sure to completely cut the wire to 4. What is the password for Feniex not splice into it to percent feedback. Bluetooth Module? Android: The password is: 1111 7. - Page 22 V2.0 Fig 7.2 highbeam wire and on the left column of the programmer under "Wig Wag Function" select "high beam" override. 8. My controller button is not illuminating? Make sure to provide 12V+ into Input G (day mode). 9. The program software will not acknowledge my 4200 controller.
