4. Use the information in Table 8 to verify the state of the light emitting diodes
Results

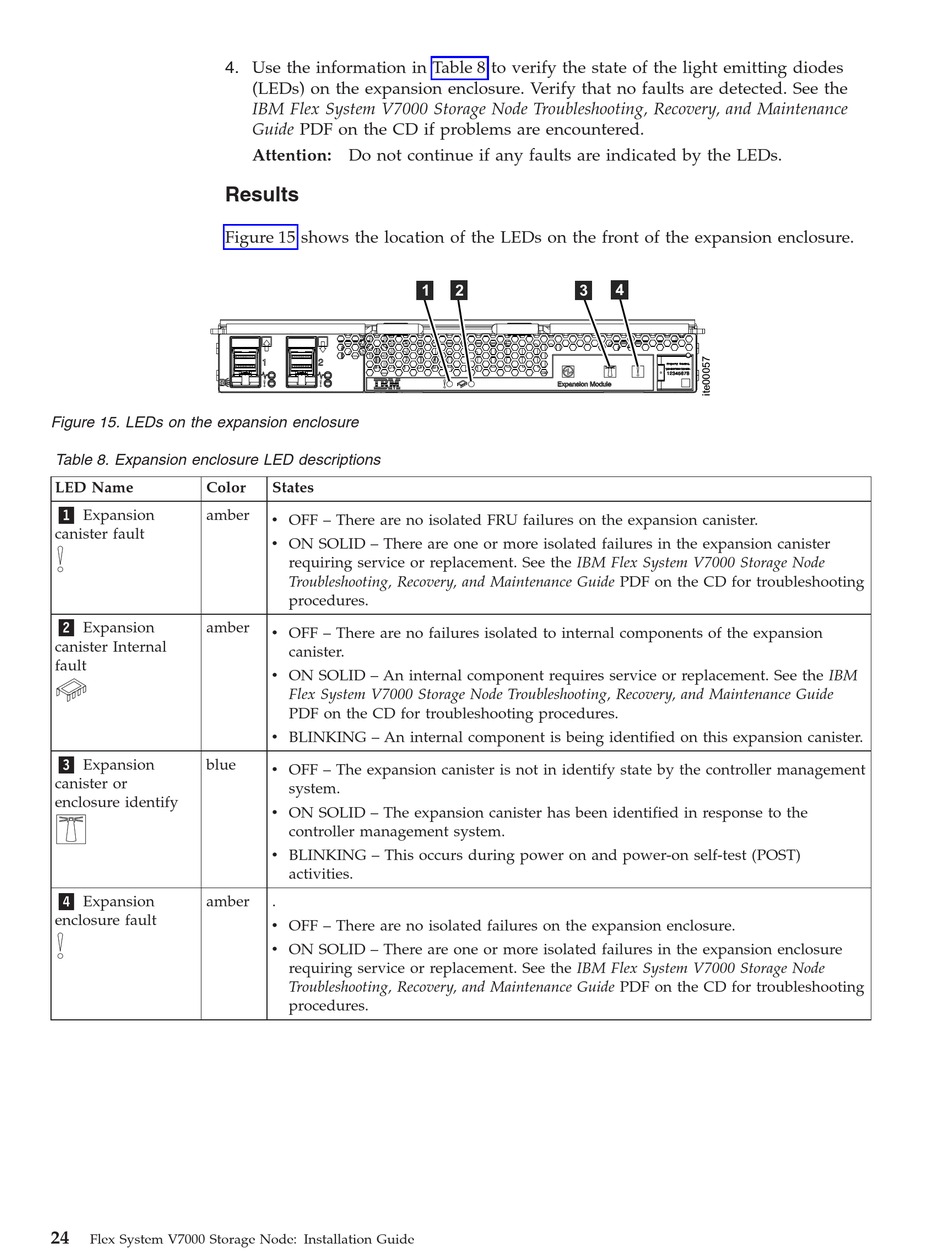

Figure 15 shows the location of the LEDs on the front of the expansion enclosure.
Figure 15. LEDs on the expansion enclosure
Table 8. Expansion enclosure LED descriptions
LED Name Color
1 Expansion
amber
canister fault
2 Expansion
amber
canister Internal
fault
3 Expansion
blue
canister or
enclosure identify
4 Expansion
amber
enclosure fault
24
Flex System V7000 Storage Node: Installation Guide
(LEDs) on the expansion enclosure. Verify that no faults are detected. See the
IBM Flex System V7000 Storage Node Troubleshooting, Recovery, and Maintenance
Guide PDF on the CD if problems are encountered.
Attention: Do not continue if any faults are indicated by the LEDs.
1
States
v OFF – There are no isolated FRU failures on the expansion canister.
v ON SOLID – There are one or more isolated failures in the expansion canister
requiring service or replacement. See the IBM Flex System V7000 Storage Node
Troubleshooting, Recovery, and Maintenance Guide PDF on the CD for troubleshooting
procedures.
v OFF – There are no failures isolated to internal components of the expansion
canister.
v ON SOLID – An internal component requires service or replacement. See the IBM
Flex System V7000 Storage Node Troubleshooting, Recovery, and Maintenance Guide
PDF on the CD for troubleshooting procedures.
v BLINKING – An internal component is being identified on this expansion canister.
v OFF – The expansion canister is not in identify state by the controller management
system.
v ON SOLID – The expansion canister has been identified in response to the
controller management system.
v BLINKING – This occurs during power on and power-on self-test (POST)
activities.
.
v OFF – There are no isolated failures on the expansion enclosure.
v ON SOLID – There are one or more isolated failures in the expansion enclosure
requiring service or replacement. See the IBM Flex System V7000 Storage Node
Troubleshooting, Recovery, and Maintenance Guide PDF on the CD for troubleshooting
procedures.
4
2 3
