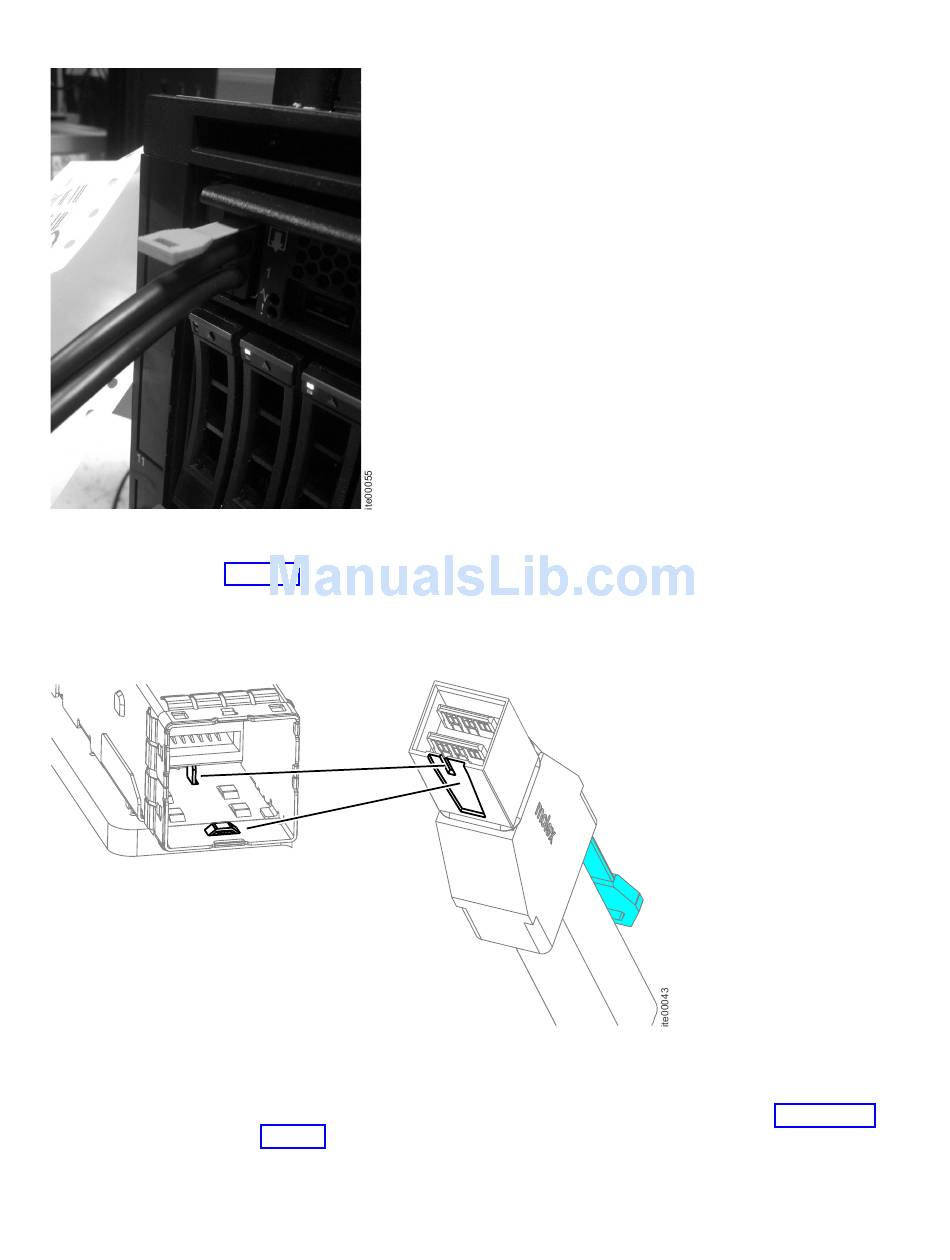

Figure 11. Correct SAS cable connection
Figure 12 shows the SAS cable socket and connector keys.
Note: If you make a mistake during cabling and must unplug a SAS cable, pull
the blue tab to release the cable.
Figure 12. HD SAS cable socket and connector
Procedure
18
Flex System V7000 Storage Node: Installation Guide
1. Review the following illustration before attaching the SAS cables. Figure 13 on
page 19 illustrates the SAS cabling for a maximum configuration with a 4939
control enclosure and two type 4939 expansion enclosures installed in a Flex
System chassis along with seven additional type 2076 expansion enclosures
installed in a rack external to the Flex System chassis. Your system might
