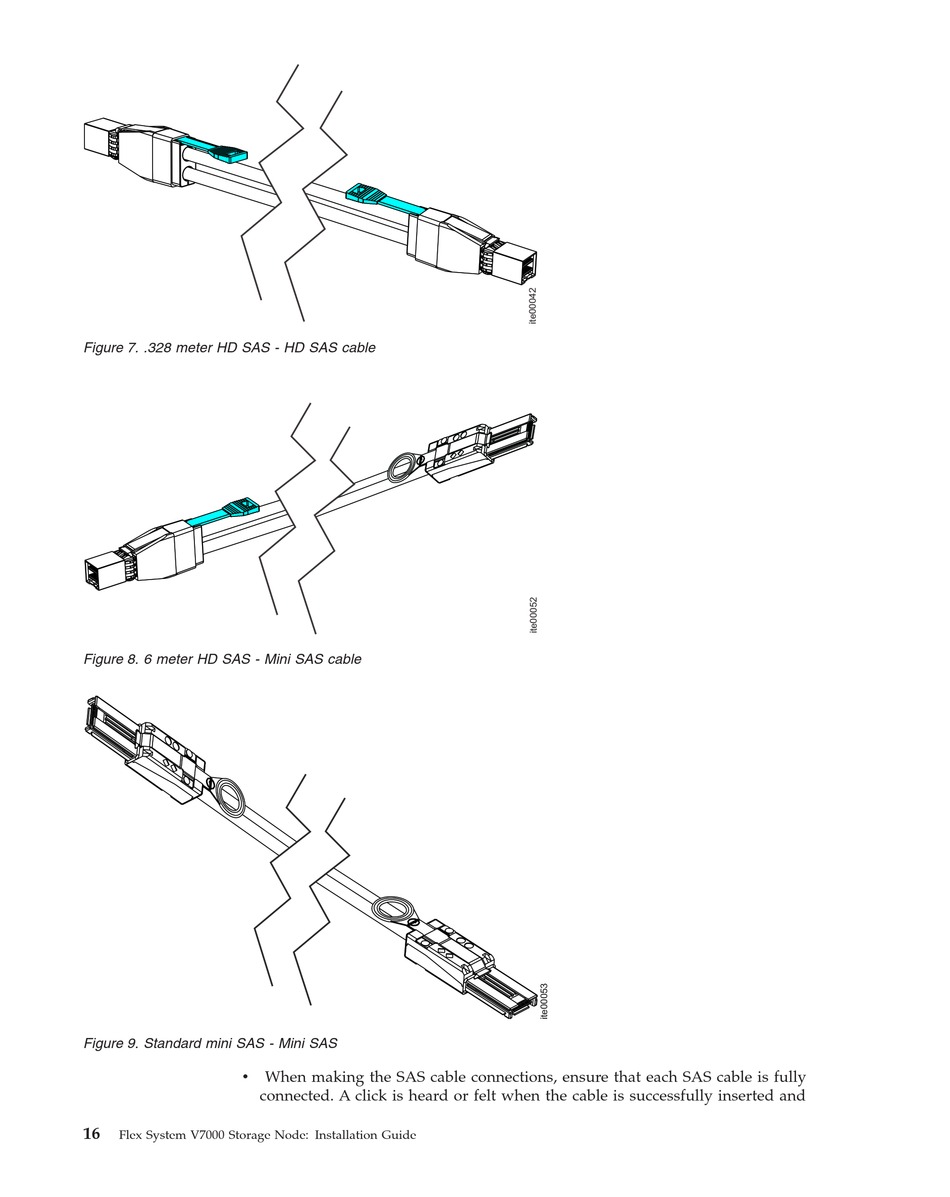

Figure 7. .328 meter HD SAS - HD SAS cable
Figure 8. 6 meter HD SAS - Mini SAS cable
Figure 9. Standard mini SAS - Mini SAS
When making the SAS cable connections, ensure that each SAS cable is fully
v
connected. A click is heard or felt when the cable is successfully inserted and
16
Flex System V7000 Storage Node: Installation Guide
