INSTALLATION, OPERATION, AND SERVICE MANUAL FOR

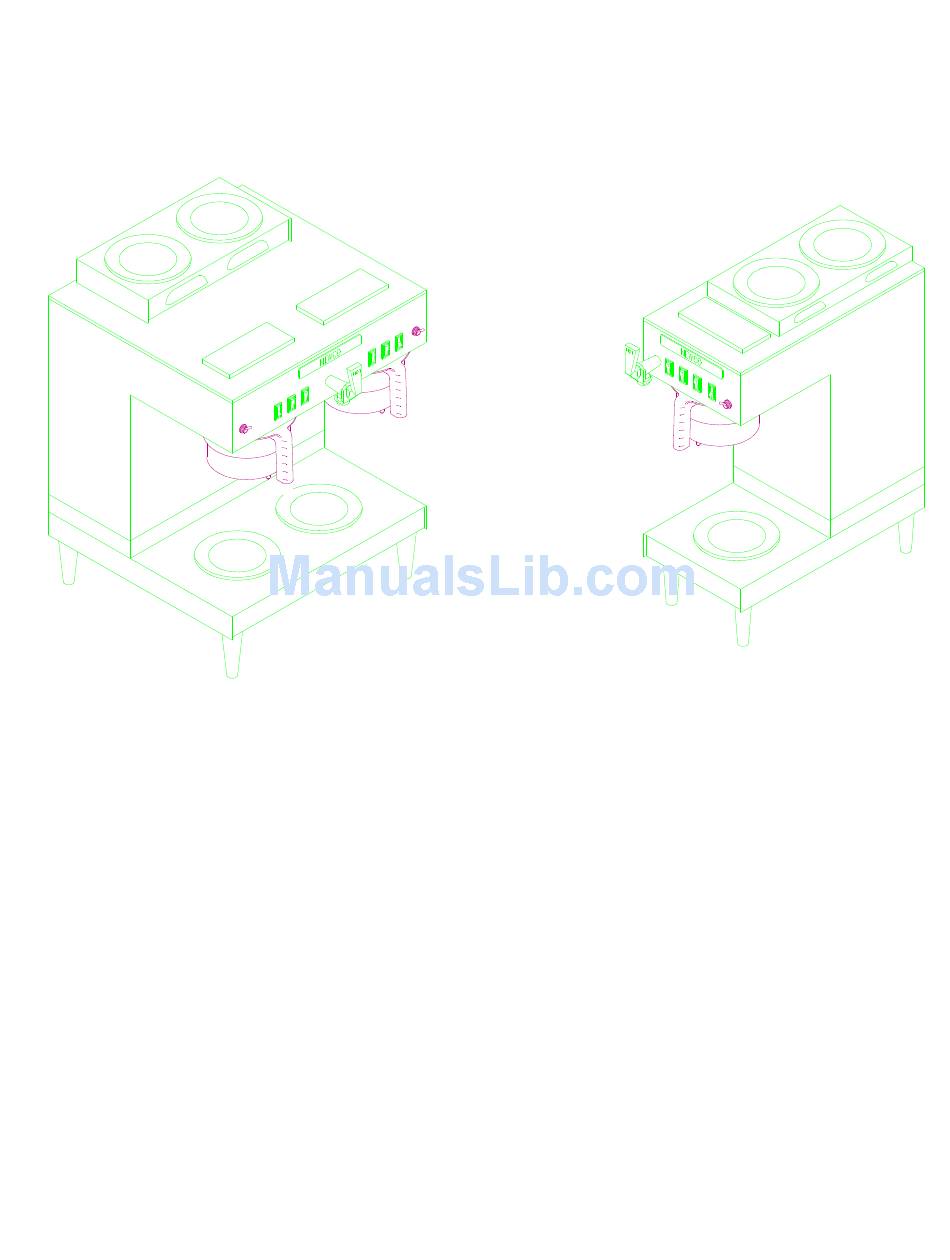

GKDF-4
Model
Warmers
GKF-1
1
GKF-2
2
GKF-3
3
GKDF-2
2
GKDF-4
4
GKDF-6
6
NOTE: Pour over models also available.
N E W C O E N T E R P R I S E S
GK SERIES BREWERS
Width
9-1/2"
9-1/2"
9-1/2"
19"
19"
19"
Length
Height
19"
23-1/2"
19"
25-1/2"
19"
25-1/2"
19"
23-1/2"
19"
25-1/2"
19"
25-1/2"
Man Pt No 701278
GKF-3
Weight
Watts
35 lbs.
1820
37 lbs.
1920
39 lbs.
2020
62 lbs.
5240
64 lbs.
5440
66 lbs.
5640
050306
Amps
15.2
16
16.8
21.8
22.7
23.5
Advertisement
Table of Contents
Related Manuals for Newco GKF-1
Summary of Contents for Newco GKF-1
- Page 1 N E W C O E N T E R P R I S E S INSTALLATION, OPERATION, AND SERVICE MANUAL FOR GK SERIES BREWERS GKDF-4 GKF-3 Model Warmers Width Length Height Weight Watts Amps GKF-1 9-1/2" 19" 23-1/2" 35 lbs. 1820 15.2 GKF-2 9-1/2" 19" 25-1/2" 37 lbs. 1920 GKF-3 9-1/2"...
-
Page 2: Warranty
NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of... -
Page 3: Installation Instructions
PLUMBER'S INSTALLATION INSTRUCTIONS (AUTOMATIC BREWERS) CAUTION: Power to brewer must be OFF before proceeding with plumbing installation. Attach flow/strainer assembly to back of brewer. Strainer inlet will point down. Flush water line before installing brewer. Brewer should be connected to COLD WATER LINE for best operation. Water pressure should be at least 20 lbs. -
Page 4: Troubleshooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM POSSIBLE CAUSE WHAT TO CHECK REMEDY NO HOT WATER 1. Tank heater. 1. Check the voltage at the tank 1. (A) If correct voltage is present at the heater terminals. Proper voltage is tank heater terminals and water in tank is designated on the serial tag located not being heated, replace the tank heater. - Page 5 TROUBLE SHOOTING GUIDE SYMPTOM POSSIBLE CAUSE WHAT TO CHECK REMEDY IRREGULAR YIELD 1. Not siphoning properly. 1. Refer to "DRIPPING", Step 1. 1. Refer to "DRIPPING", Step 1. Steps 2 thru 8 refer to Automatic Models 2. Timer. 2. Timer consistency. Time several 2.
-
Page 6: Component Replacement Instructions
TROUBLE SHOOTING GUIDE CONTINUED SYMPTOM POSSIBLE CAUSE WHAT TO CHECK REMEDY 1. Clogged valve seat. 1. Valve seat. 1. Disassemble and clean or replace as FAUCET DRIPPING required. (FAUCET MODELS) FAUCET WATER FLOW TOO 1. No water. 1. (A) Incoming water line shut off 1. - Page 7 COMPONENT REPLACEMENT INSTRUCTIONS, CONTINUED HOT WATER COIL (FAUCET MODELS) Remove the 8 tank lid retaining nuts. Lift tank lid assembly out of tank. Remove the 2 compression nuts from top of hot water coil and remove old coil. Installation is reverse of removal. WARMER ELEMENT Remove retaining screws from warmer plate.
- Page 8 GK SERIES PARTS LIST - (See pictorial on fold out page) Index Part No Description Index Part No Description 705229 GKF-1 cover, assembly 705634 GK front panel, dual 705414 GKF-2 cover, assembly 705224 Brace, front panel, single 705420 GKF-3 cover, assembly...
-
Page 9: Exploded View Drawing
EXPLODED VIEW DRAWING (GKF-3 SHOWN) -
Page 11: Wiring Diagrams
WIRING DIAGRAMS GK Series Brewer - 120 V GK Series Brewer - 120 V / 240 V Newco Enterprises, Inc. * 1735 South River Rd. * P.O. Box 852 * St. Charles, MO 63303...
