Summary of Contents for Ikelite 5516.69
Page 1
I n s t r u c t i o n M a n u a l Thank you for your purchase of Ikelite equipment. Please read this instruction manual completely before attempting to operate or dive with this product.

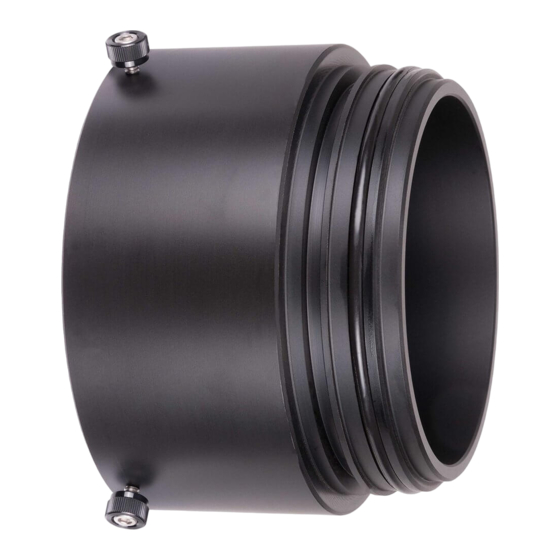

INSTALLING THE LENS EXTENSION and PORT 1. First, check to see that there is a thin film of lubricant on the Port Base and Lens Extension o-rings. The o-ring should appear slick. If necessary, relubricate with the supplied Ikelite lubricant. Do not use excessive lubricant which can attract hair or other debris. Use ONLY Ikelite lubricant. 2. Make sure the Port Base and Lens Extension o-rings are free of hair or other debris.
Page 3
INSTALLING THE LENS EXTENSION and PORT - continued Diagram A Securing Screw Drain Hole Port Base O-ring: should be lightly lubricated - use Ikelite lubricant only.
Page 4
INSTALLING THE LENS EXTENSION and PORT - continued Diagram B Port Base O-ring; should be lightly lubricated - use Ikelite lubricant only. Rotate clockwise to tighten Approximately 5/32” or less gap will be present between the Housing Front and bottom of the Port when the...
Page 5
INSTALLING THE LENS EXTENSION and PORT - continued Diagram C Diagram D Lens Extension and Flat Port properly installed on housing. Ledge...
This Ikelite product is warranted against any manufacturing defects for a period of one (1) year from the original date of purchase. Defective products should be returned to Ikelite postage paid. Ikelite will, at its sole discretion, repair or replace such products, and will return to customer postage paid.
RETURNING PRODUCTS FOR SERVICE Ikelite is most interested in performing any service to ensure that all products perform as intended. Evidence of purchase date must be provided to obtain warranty service. No prior authorization is required. You may return directly to us or through your dealer.
