Ikelite 5509.20 Instruction Manual

Zoom sleeve

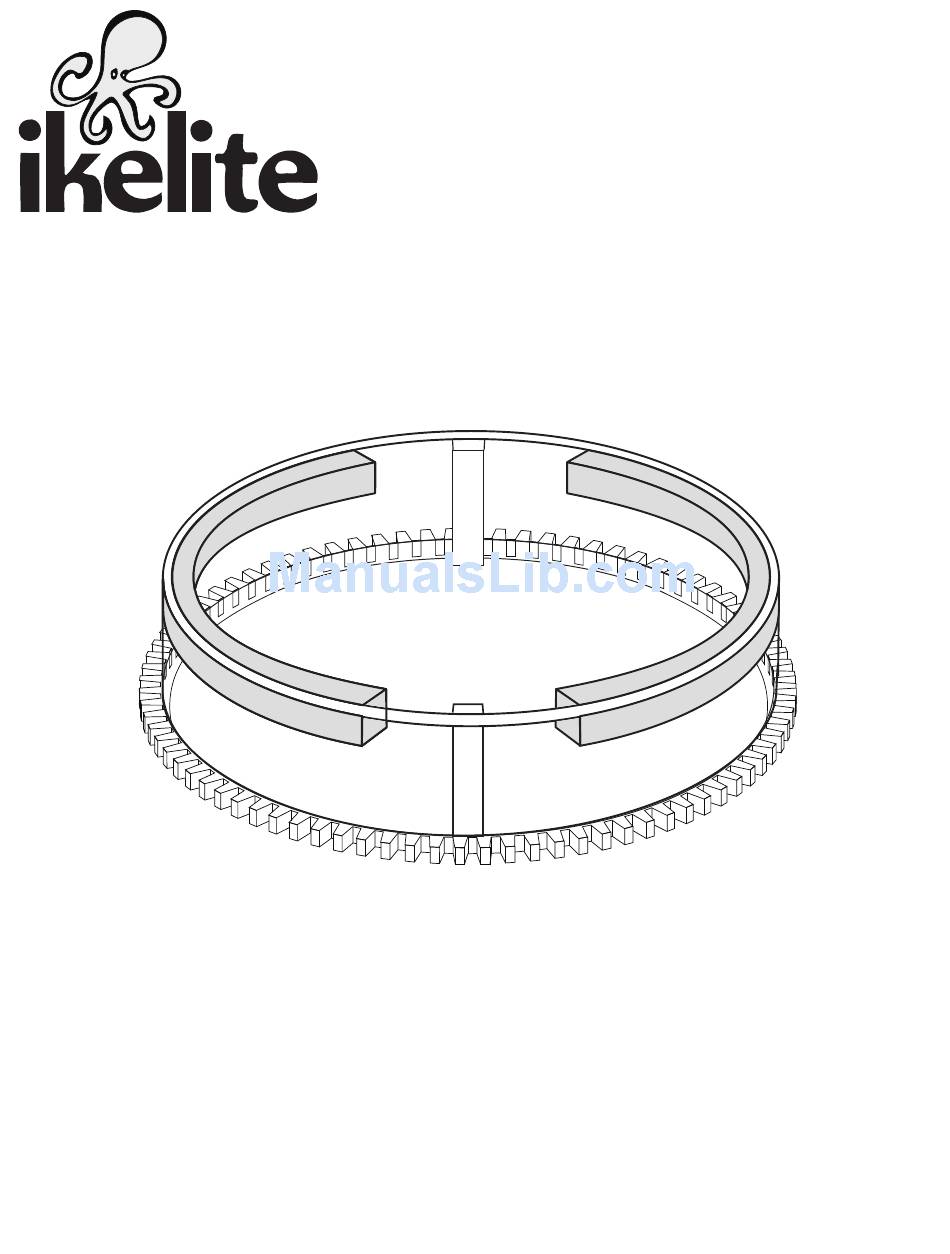

5509.20 Zoom Sleeve

I n s t r u c t i o n M a n u a l

Thank you for choosing Ikelite equipment. Please read this instruction

manual completely before attempting to operate or dive with this product.

A special zoom sleeve for use with the Canon 10-18mm STM lens when

used with the Canon EOS 100D Rebel SL1 in our Compact DSLR Housing.

The full zoom range of the lens is accommodated by the housing's standard

dome port without vignetting (dark shadows in the corners of the image).

Included in Box

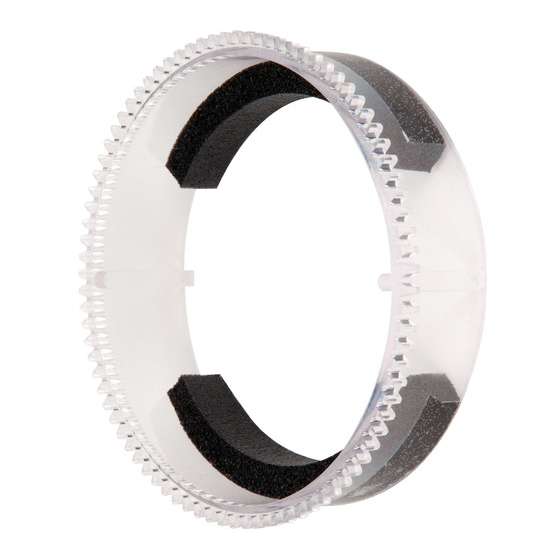

Zoom Sleeve for Canon 10-18mm STM Lens

(Canon 10-18mm STM)

Table of Contents

Do you have a question about the 5509.20 and is the answer not in the manual?

Page 1: Included In Box
(Canon 10-18mm STM) I n s t r u c t i o n M a n u a l Thank you for choosing Ikelite equipment. Please read this instruction manual completely before attempting to operate or dive with this product.
Page 2 Installing Zoom Sleeve 1. Install camera body into the housing without the Canon 10-18mm lens. 2. Slide the Zoom Sleeve onto the lens as shown in diagram A. Diagram A 3 Slide the Zoom Sleeve forward until the front edge aligns with the focus ring of the camera lens.
Page 4: Returning Products For Service
This product is warranted against any manufacturing defects for a period of one year from the original date of purchase. Defective products should be returned prepaid to Ikelite. Ikelite will, at its discretion, repair or replace such products, and will return to customer prepaid. All other claims of any nature are not covered.
