Ikelite 5510.45 Instruction Manual

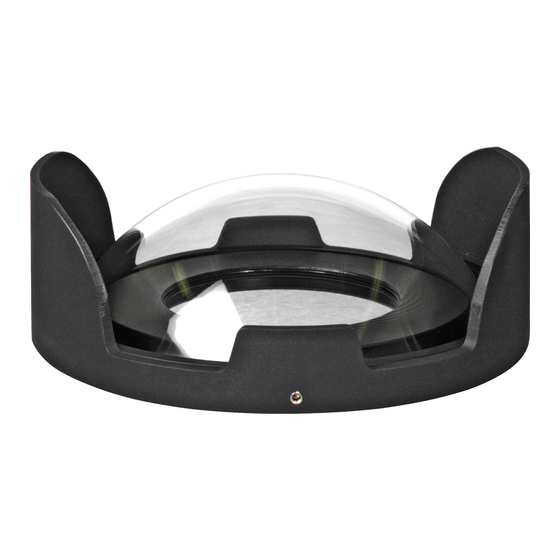

Ikelite 8" Dome with Shade
i n s t r u c t i o n
# # 5 5 5 5 1 1 0 0 . . 4 4 5 5 I I k k e e l l i i t t e e D D o o m m e e w w i i t t h h S S h h a a d d e e
Thank you for your purchase of the Ikelite SLR 8" Dome Port. Ikelite
products have been designed and built in the USA for over 40 years
by Ikelite for both the professional and amateur photographer.
This product should receive the same care and attention as your other
photographic products.
I I n n s s t t r r u u c c t t i i o o n n I I n n d d e e x x
Pg 2 ..........................................Important Notice
Pg 3 ..........................................Important Information
Pg 4 ..........................................Port Bodies
Pg 5 ..........................................Installing Bodies
Pg 6-7 ......................................Installing Port on Housing
Pg 8-1 1......................................Installing Dome with Super Wide Body
Pg 1 2 ........................................Optional Replacement O-rings
Pg 1 3 ........................................Maintensnce
Pg 1 4-1 5....................................Installing Dome Port Shade
Pg 1 6 ........................................Warranty
I I m m p p o o r r t t a a n n t t I I n n f f o o r r m m a a t t i i o o n n
P P o o r r t t S S e e a a l l I I n n s s i i d d e e V V i i e e w w
Due to the wide overhang of the port
flange the port seal is most visible
when viewed by looking inside the
housing before the camera is inserted.
After the port is installed check to see
that the o-ring is properly sealed as
shown in F F i i g g u u r r e e 1 1 and not extruded
as shown in F F i i g g u u r r e e 2 2 .
C C A A U U T T I I O O N N : : W W h h e e n n t t h h e e p p o o r r t t w w i i l l l l n n o o t t b b e e u u s s e e d d f f o o r r p p r r o o l l o o n n g g e e d d
p p e e r r i i o o d d s s w w e e r r e e c c o o m m m m e e n n d d r r e e m m o o v v i i n n g g t t h h e e B B o o d d y y f f r r o o m m t t h h e e D D o o m m e e
P P o o r r t t . . I I f f t t h h e e B B o o d d y y i i s s n n o o t t r r e e m m o o v v e e d d f f o o r r p p r r o o l l o o n n g g e e d d p p e e r r i i o o d d s s i i t t c c a a n n
m m a a k k e e r r e e m m o o v v a a l l d d i i f f f f i i c c u u l l t t . .
For prolonged storage the Port should be removed from the
housing and the Body removed from the Dome Port. The
housing/port o-ring and body/base plate o-rings should be
removed, cleaned and lightly lubricated.
Cover Dome with protective cover when not in use.
C C A A U U T T I I O O N N : Never use spray lubricants as the propellant
ingredient can cause cracking in this product.
m a n u a l
Fig. 1
Fig. 2
3
I I m m p p o o r r t t a a n n t t N N o o t t i i c c e e
Port Bodies are engraved with a Maximum Depth Rating,
"RATED 200 FT (60m)". They are engraved on the flat flange that
rests against the front of the camera housing, see illustration.
Maximum
Depth Rating
engraved
on flange
Older Standard and Extended Port Bodies that are NOT
ENGRAVED HAVE A MAXIMUM DEPTH RATING OF 1 50 FEET
(45M). The unmarked Standard or Extended Port Bodies can be
5510.16 50mm Port
returned to Ikelite for a no charge replacement with the newer
200 ft. (60m) rated Bodies, D D O O N N O O T T send the Dome.
All Super Wide Bodies are "RATED 200 FT (60m)" Whether
they are engraved or not. D D O O N N O O T T return Super Wide Bodies
for exchange.
P P o o r r t t B B o o d d i i e e s s
For information on the full selection of 8" Dome Port Bodies
see the Ikelite catalog or Ikelite web site.
Super Wide Body Standard Body
#551 0.1 0 #551 0.1 6
5510.16 50mm Port
5510.10 33mm Port
Dome
Cut-outs
Shade
Base Plate
Dome with Shade
#551 0.45
Camera Housing / Port Opening
2
Extended Body
#551 0.24
5510.24 70mm Port
8" Dome with Shade
4
