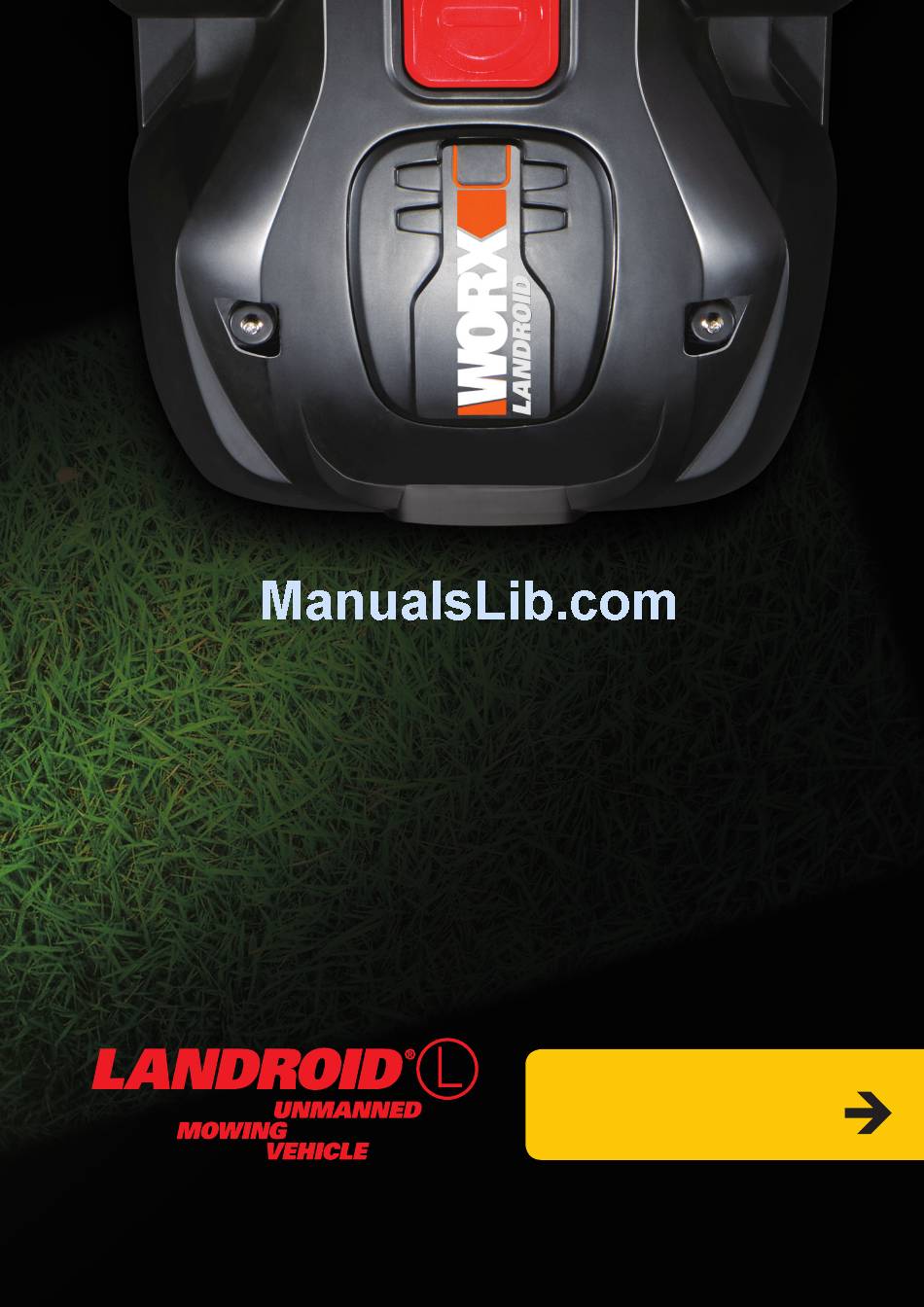

- Page 1 INSTALLATION GUIDE...
- Page 3 Original instructions Original brugsanvisning Alkuperäiset ohjeet Original driftsinstruks Bruksanvisning i original Installation guide Installationsvejledning Asennusopas Installasjonsguide Monteringshandbok...
- Page 4 How to install your Landroid ® The installation of the Landroid L is easy. Depending on the size of your garden, the entire process only ® takes a short amount of time. If you are like us, you hate wasting your time to mow your lawn. The Landroid L will prove to be a great investment, providing you with years of lawn care.
- Page 5 Preparation In the box Charging base Landroid ® Base fixing Spare blades Boundary Connector nails wire reel Power Adaptor Wire pegs Owner’s manual Installation guide Distance gauge Hex key Programming and Warranty trouble shooting statement guide From your shed Scissors Hammer...
- Page 6 Landroid L's new home-your garden ® Let's start by having a closer look at Landroid L ’s new home—your lawn—highlighting the areas where it ® can safely go and areas it’s best for Landroid L to avoid. ® Obstacles that can be hit When hitting any obstacle that’s rigid, stable and taller than 15cm—such as a wall or a fence—your Landroid L will simply...
- Page 7 Depressions and bumps In the case of large bumps or dips, please consider if the blades could touch the ground; if this is the case, either make the L ’s inclines smoother or exclude those areas from your Landroid ® operation.
-
Page 8: Installation
Installation See details on step 2.3 45cm See details on step 2.1 CHARGING BASE See details on step 1 & 3 45cm See details on step 2.2... - Page 9 45cm See details on step 2.4 45cm >1m 45cm See details on step 2.7 10cm See details on step 2.5 45cm...
- Page 10 Your Landroid L needs to know where to mow. This is why you have to mark its working area with a boundary ® wire that will form an invisible fence. This wire will also guide your Landroid L to its charging base. ®...
- Page 11 2. Pegging your boundary wire When pegging the boundary wire for the first time, it is recommended to use a normal lawn mower or a grass trimmer to cut the grass along the boundary. Then the wire can be laid as close as possible to the ground to prevent the Landroid L accidentally cutting the wire.
- Page 12 10cm A feature, such as flowers or shrubs that are close to the mowing boundary, should be part of the boundary as shown in the picture. 45cm <2cm If there is an island that sits inside your lawn where you don't want <2cm Landroid L to go, please follow the path as shown in the picture to...
- Page 13 45cm <2cm In the case of two islands that are close to each other, it would be convenient to lay out the wire as illustrated in the picture. The Landroid L can travel freely over the boundary wire in ® between the islands and the mowing boundary.
- Page 14 3. Connect the base to the boundary wire Cut the end of the wire to a length that’s appropriate convenient for reaching the clamps. Strip the two ends of the wire. NOTE: Too long redundant wire may cause the signal problem. Strip the two ends of the wire.
- Page 15 You can now permanently fix the charging base on the ground by pressing the supplied Base Retention Pegs with the supplied Hex key. NOTE: Make sure the IN-wire is running straight underneath the center of the charging base. Connect the power cord to the adaptor and then to the AC electrical socket, the LED on the charging base will turn on.
- Page 16 4. Turn on and test the installation This is the exciting part where you can turn your Landroid L on for the first time. ® Place your Landroid L inside the ® working area, a few meters from the back of the charging base. Open the keypad window by pressing the large red button on the top of your...
- Page 17 Programming Having the installation finished, please refer to the Programming and Troubleshooting Guide included in the packaging to program the Landroid ® Ready to go? The Landroid L is designed for maintaining your grass at a perfect length during the season, but is not designed for deforesting a jungle. ®...
-
Page 18: Maintenance
2 months when it is programmed to mow every day. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landroid ® Spare blades are also available at your nearest WORX retailer. Maintenance Your Landroid L is engineered and built to stay outdoors regardless of adverse conditions. - Page 20 www.worxlandroid.com...
