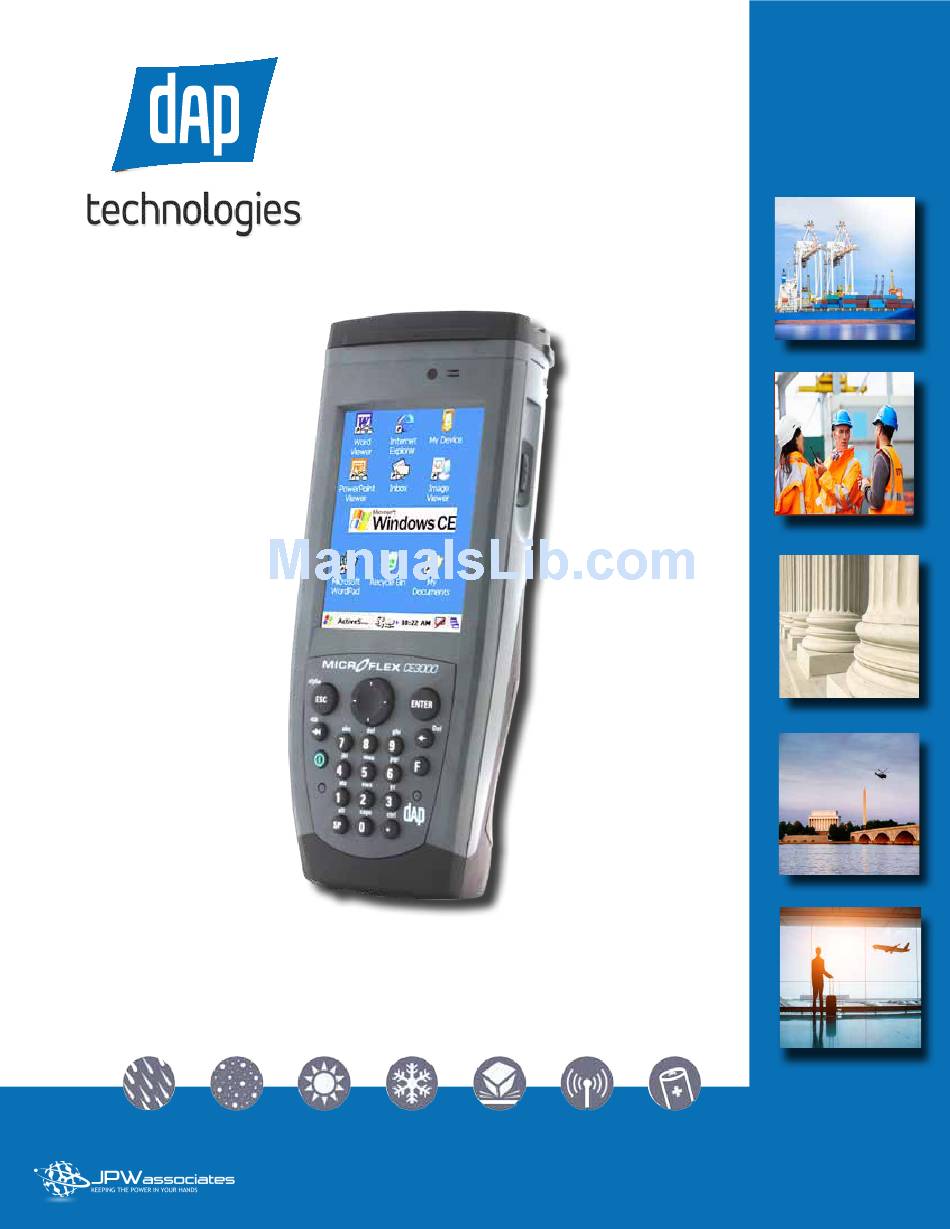

- Page 1 CE3000B Series User Guide Agile Performer HandHeld Mobile Computer DAP-000140 www.jpwassociates.com...
-
Page 3: Table Of Contents
Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Intended Use . - Page 4 WWAN NOTICE (only for models with GPRS Wireless WAN radio) THE RADIO IS NOT CERTIFIED OR TESTED COMPLIANT TO BE USED ON THE 2100 MHz W-CDMA (UMTS) THE USER SHOULD TAKE APPROPRIATE PRECAUTION TO NOT OPERATE THE RADIO ON THAT PLEASE, ALSO REFER TO THE RADIO FREQUENCY EXPOSURE REQUIREMENTS AT THE END OF THIS WWAN09-05A1...
-
Page 5: Introduction
• How to Use the external applications that he might have to install; The guide could refer the user to more detailed information on the DAP Technologies Technical Web Site SCOPE OF THE GUIDE This version of the guide applies to the CE3240B, running... -
Page 6: Symbols Used In This Manual
• If you need to use a cable other than the ones provided or recommended by DAP Technologies, we recommend that you contact your Customer Service Representative nearest • There are no user-serviceable parts inside the unit Do not try to repair the unit as this may affect... - Page 7 Safety Precautions and Good Practices WARNINGS - ABOUT TOUCH MEMBRANE • Use the ‘stylus’ which has been provided with the unit by JPW Associates, as it has been designed with a non-abrasive material that cannot scratch or deteriorate the touch screen •...
-
Page 8: Register Your Product
DAP-000140 www.jpwassociates.com... - Page 9 DAP-000140 www.jpwassociates.com...
-
Page 10: Quick Tour
Quick Tour FRONT VIEW On/Off Key Light Sensor EndCap with aDAPtable Extension Color Screen and touch membrane Microphone Status LED Indicator Cradle Communication Connector Head-Set Adapter Hand Strap Attachment 10 Function Key 11 Navigation Key (Left, Right, Top & Bottom) DAP-000140 www.jpwassociates.com... -
Page 11: Back View
Quick Tour BACK VIEW replaceable battery (2 screws left and right) Stylus (Pen) holder Trigger Buttons (Left & Right) Speaker DAP-000140 www.jpwassociates.com... -
Page 12: Office Cradle (Model Cbce340E)
Quick Tour OFFICE CRADLE (MODEL CBCE340E) USB Host USB Client Ethernet Power Connector Slide unit upwards to remove WARNING Ensure unit is inserted correctly onto cradle or charging will not occur and charging pins could damaged DAP-000140 www.jpwassociates.com... -
Page 13: Operation Guide
Note: The unit uses an approved battery to ensure a quicker charging time, longer battery life and resistance to shock and vibrations To ensure that the batteries are appropriate for use on DAP Technologies equipment, it is strongly recommended that these be purchased directly through DAP Technologies or... -
Page 14: Charging The Battery
Operation Guide CHARGING THE BATTERY From the main unit and cradle While charging the Status LED Indicator will turn red in the next 5 seconds indicating that charging is now in progress The light will turn green when charging is complete See Quick Tour section for details on the Status Indicator Charging may take up to 4 hours If the battery was completely discharged it could take some time before the Status LED Indicator lights-on (few seconds to 3 minutes) Processing will resume exactly where it was... - Page 15 From the External Battery Charger DAP Technologies also provides a stand-alone battery charger good to recharge two (2) batteries a the Remove the battery from the unit as explained in the Quick Tour section and insert the battery into charger...
-
Page 16: Status Led Indication
Operation Guide STATUS LED INDICATION Color Charger is connected and charging Green Battery is fully charged y ellow Reason 1: Charger detected, battery charger temperature is too high or too low to re-charge Charge will start when temperature is adequate y ellow Reason 2: Charge disabled from the Control Panel >... -
Page 17: Battery Warnings
Operation Guide BATTERY WARNINGS Note: To check how much power remains click on: Start > Settings > Control Panel > Power > Battery Main Battery Low By default, at 16% of capacity, the Low Battery Indicator will appear on the Message Bar Main Batteries Very Low Following several hours of use, the main battery will become very low By default, at 5% of capacity, the Very Low Battery Indicator will appear on the Message Bar... -
Page 18: Turning The Unit On (Resume)
Operation Guide TURNING THE UNIT ON (RESUME) Press the ON button for 2 to 3 seconds is started Note: • Do not continue pressing the ON button once the unit has started to resume WARNING If the battery power level is very low, it may not be possible to turn the unit on Ensure battery is fully charged TURNING THE UNIT OFF (SUSPEND) They are different ways to turn the unit off (suspend-it) -
Page 19: Touch Screen Calibration
Operation Guide TOUCH SCREEN CALIBRATION Hold your Stylus down until the Cross begins to move Touch the center of the Cross for a few seconds Repeat operation as Cross moves to another location To access the Touch Screen Calibration Menu, Click on: Start >... -
Page 20: Using The Keyboard
Operation Guide USING THE KEYBOARD Multi-Key Entry The ‘ ’ unction can precede a letter or a digit to modi y its original value and obtain a special character or a special unction Special function Action Special function Action Keyboard Backlight unction Alternate k ey (ALT) unction... -
Page 21: Virtual Keyboard
Operation Guide VIRTUAL KEYBOARD The virtual keyboard has been included to assist in the entry of data • Click the Keyboard icon at the bottom right of the Task Bar and click Keyboard The virtual keyboard will be displayed on the screen •... -
Page 22: Laser Barcode Scanner (Option)
Operation Guide LASER BARCODE SCANNER (OPTION) RIGHT in-house at the manu acturer’s The Laser Barcode Scanner is primarily controlled by the client application and a special software driver Therefore, please refer to your application specialist or supervisor for further instructions WRONG Information below are basic scanning instructions Testing the Laser Scanner... -
Page 23: Barcode Reader (Option)
Operation Guide 2D BARCODE READER (OPTION) facility. The 2D Barcode Reader is primarily controlled by the client application and a special software driver Therefore, please refer to your application specialist or supervisor for further instructions Information below are basic scanning instructions Testing the 2D Barcode Reader To test the reader, click on: Start >... -
Page 24: Companion Programs
Operation Guide COMPANION PROGRAMS This section lists several programs that are included with the unit and provides a brief description of their functions However, not all programs are covered. DAP TECHNOLOGIES Programs Icon Name CE Pad A Small Text Editor... -
Page 25: Storage & Maintenance
Storage & Maintenance CLEANING THE UNIT The DAP Technologies units are reliable products requiring little maintenance Only occasional replacement of the battery and the carrying strap is required Cleaning Use a normal soft cloth and mild soap to clean the casing of the unit Do not use abrasives as these cleansers... -
Page 26: Battery Maintenance And Storage
Storage & Maintenance BATTERY MAINTENANCE AND STORAGE Main Battery The high-quality Lithium-Ion battery provided with your unit may be re-charged over 500 times according to the battery manufacturer Note main battery should last from 12 to 24 months if used under normal working conditions Backup Battery The Backup Battery will normally not need to be replaced during the expected life of the unit Storage... -
Page 27: Iso 9001:2008 Certification
Recycling Passport The Waste Electrical and Electronic Equipment Directive (WEEE) is a European directive established in 2003 for the collection, recycling and recovery targets for all types of electrical goods This European Directive imposes the responsibility for the disposal of waste electrical and electronic equipment on the manufacturers of such equipment In accordance to this directive, JPW Associates will assist you in the proper disposal of your DAP Units For further instructions on how to dispose of these units, please refer to our web site:... -
Page 28: Ce Conformity
CE Conformity The CE3240B, has been tested and is in compliance with the 89/336/EEC European Directive for Electromagnetic Compatibility Electromagnetic Emissions & Electromagnetic Immunity Standards EN55022 Radiated & Conducted, Class B ENV 50204 EN 61000-4-2 Electrostatic discharge EN 61000-4-3 Radiated Immunity EN 61000-4-5 Surge EN 61000-4-6... -
Page 29: Fcc Statement & Copyright Policy
COPYRIGHT POLICY Any software described in this document is provided under a license agreement or non-disclosure agreement It is strictly prohibited by law to copy any portion of the software provided by DAP Technologies onto any media format ActiveSync, Microsoft, Outlook, Windows, the Windows logo, and Windows Mobile are either registered... -
Page 30: Microsoft End-User License Agreement
Microsoft End-User License Agreement You have acquired a DAP Technologies device that includes software licensed from Microsoft Corporation The Microsoft software included in your device, as well as associated media, printed materials, and online documentation are all protected by Copyright Laws and International Copyright Treaties If you do not agree with this End-User License Agreement (“EULA”), use of this device, or use and copying of, any installed... -
Page 31: Warranty
Warranty EQUIPMENT AND ACCESSORIES LIMITED WARRANTY JPW Associates, Inc. (JPW) warrants that all “JPW Products” manufactured by JPW (including both JPW Equipment and JPW Accessories, as defined herein), when operated in the typical and intended operatingenvironment, shall con orm to ’s written speci ications and shall remain free from defects in materialsand workmanship (a) in the case of “JPW EQUIPMENT”... - Page 32 International Sales & Product Support JPW Associates Customer Support United States Technical Support USA & International 11 East Taylor Avenue Audubon, New Jersey USA 08035 T: (856) 546-0111 T: (856) 546-0111 TF: (800) 446-2463 F: (856) 546-5866 support@jpwassociates.com TF: (800) 446-2463 Sales@jpwassociates.com...
