Activation In One Wheel Mode - Draper FCR-TPMS Instruction

Failed Sensor
2
Read
3 Duplicate ID
NOTE
Operator can press the NO key to abort the sensor activation and return to previous menu at any
time.

4.1.2 Activation in One Wheel Mode

This section illustrates how to test TPM sensor in one wheel mode. In this mode, TPM data is
displayed and stored immediately.
1. In one wheel mode, the screen displays as below when the TPM sensor is selected.
2. Refer to Table 4-1 in page 12 to correctly place the trigger tool and press the Test key.
3. The tool moves to next wheel to be tested automatically or manually select a wheel to test using
UP/DOWN arrow keys. Repeat the steps to complete test of all wheels.
4. Press YES key to review test results.
The search period expires without reading a
TPM. The
and displays "No sensor detected." Repeat the
test process to verify.
A sensor with a duplicate ID has been read.
The
displays "Sensor ID duplicate." Clear data and
re-read sensors.
Table 4-2

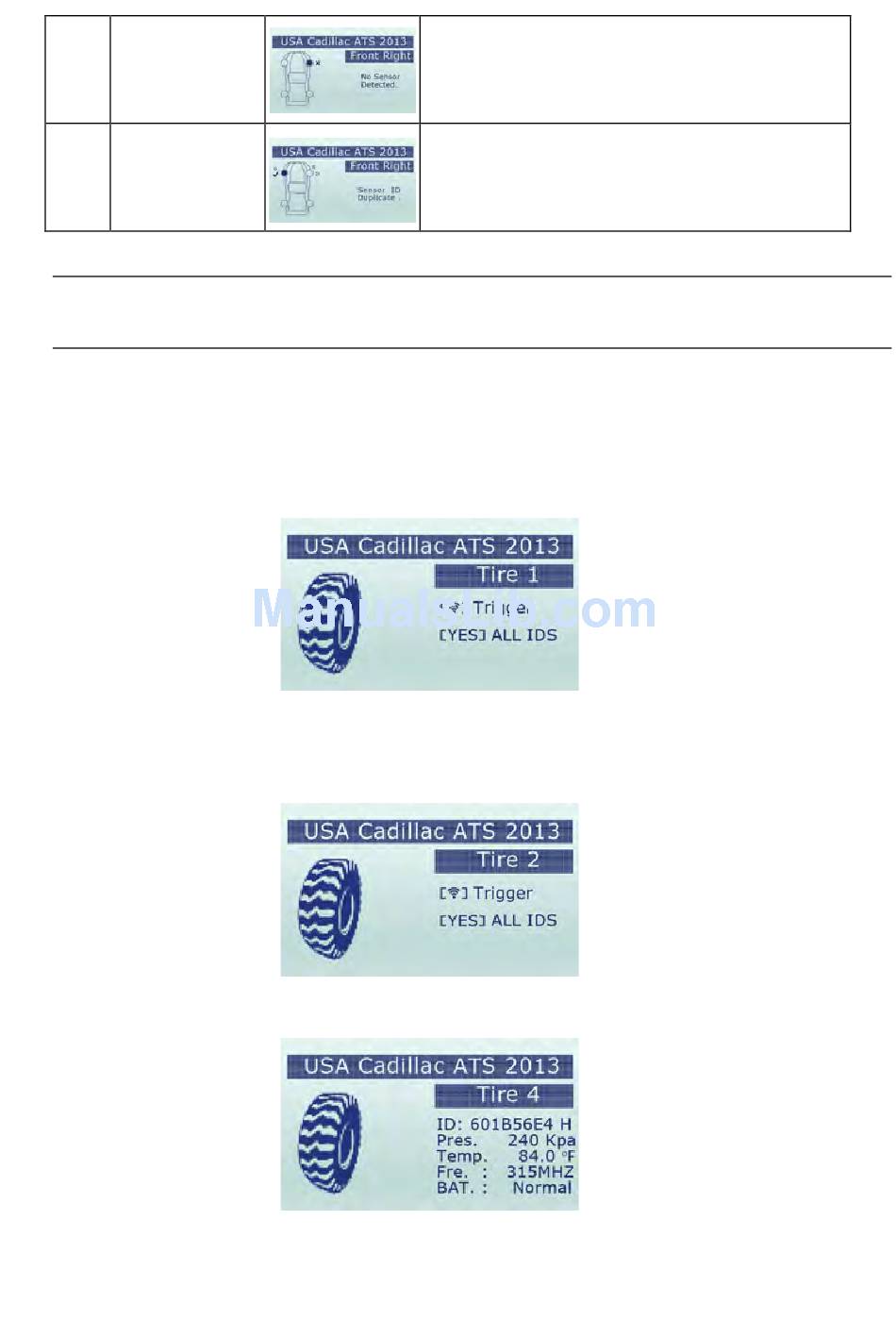

Figure 4-6 Sample One Wheel Test Screen
Figure 4-7 Sample Wheel Selection Screen
Figure 4-8 Sample One Wheel Test Data Screen
16
emits a single audible beep
emits three audible beep and
