Read this manual in full before using this product and retain it for future use. Always use the latest version of the manual.
1. Product Introduction
1.1 Intended Use
This product is designed to test and find electrical faults on 13A sockets.
A combination of the three indicator lights and the coding chart provided will
show the condition of the socket wiring. Any other application beyond the
conditions established for use will be considered misuse. Draper Tools accepts
no responsibility for improper use of this product.
2. Specification
Stock No.
34279
Part No.
ST-2
Rated Voltage:
230V
Rated Frequency:
50Hz
Test Time:
60 – 90seconds
Working Temperature:
0 - 40°C
Relative Humidity:
<80%
Dimensions:
71 X 62 X 62mm
Net Weight:
63g
Helpline: +44 (0) 23 8049 4344
Draper Tools Limited, Hursley Road, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF, UK

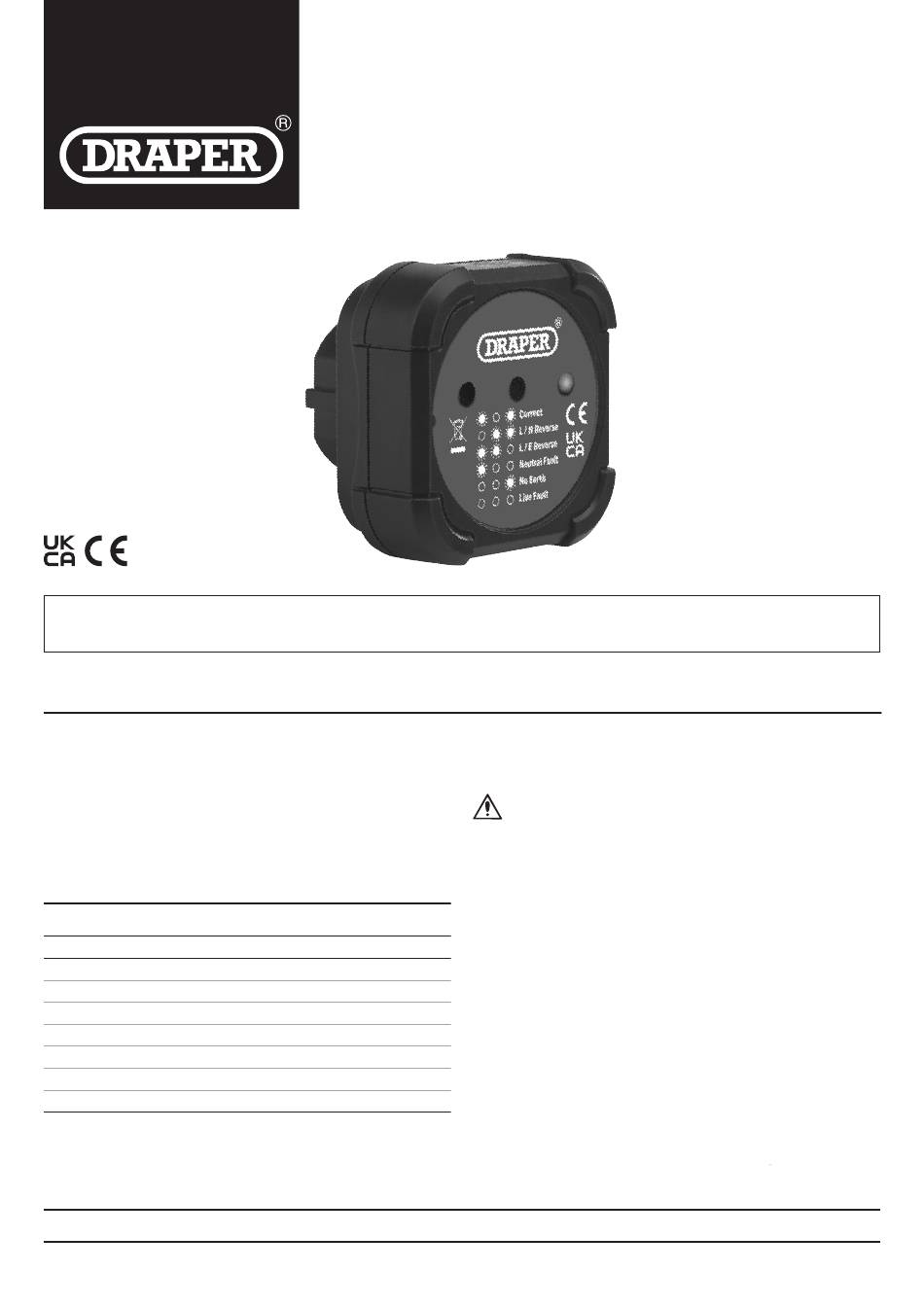

13AMP
SOCKET TESTER
34279 – INSTRUCTIONS FOR USE
Please visit drapertools.com/manuals for the latest version.
Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
3. Health and Safety Information
Important: Read all the Health and Safety instructions before attempting to
operate, maintain or repair this product. Failure to follow these instructions may
result in injury or damage to the user, the product or the socket.
WARNING!
• The tester provides an instant reading of the socket wiring. DO NOT LEAVE
INSERTED INTO THE LIVE MAINS SOCKET FOR LONGER THAN THE
MAXIMUM TEST TIME OF 90SECONDS.
• To prevent electric shocks:
– Use the correct safety measures when working with voltages above 32V
RMS, 42V AC peak or 60V DC.
– DO NOT touch any conductors with hands or skin.
• If a plug adapter must be used to test a socket or a lead connection, ensure
that it is in perfect condition especially the protective conductor connection
to avoid faulty test results.
• Check the tester before each use and DO NOT use if any damage, broken or
cracked parts.
• Before use check the tester with a known voltage source to verify it is in
perfect working order.
• The tester must only be used under the conditions and for the purpose it has
been designed for.
• DO NOT use tester if wet or damaged in any way. Keep it dry and free from dust.
• The tester cannot detect between Neutral/Earth reverse.
Website: drapertools.com
EN
Original Instructions
Version 2 – June 2024
