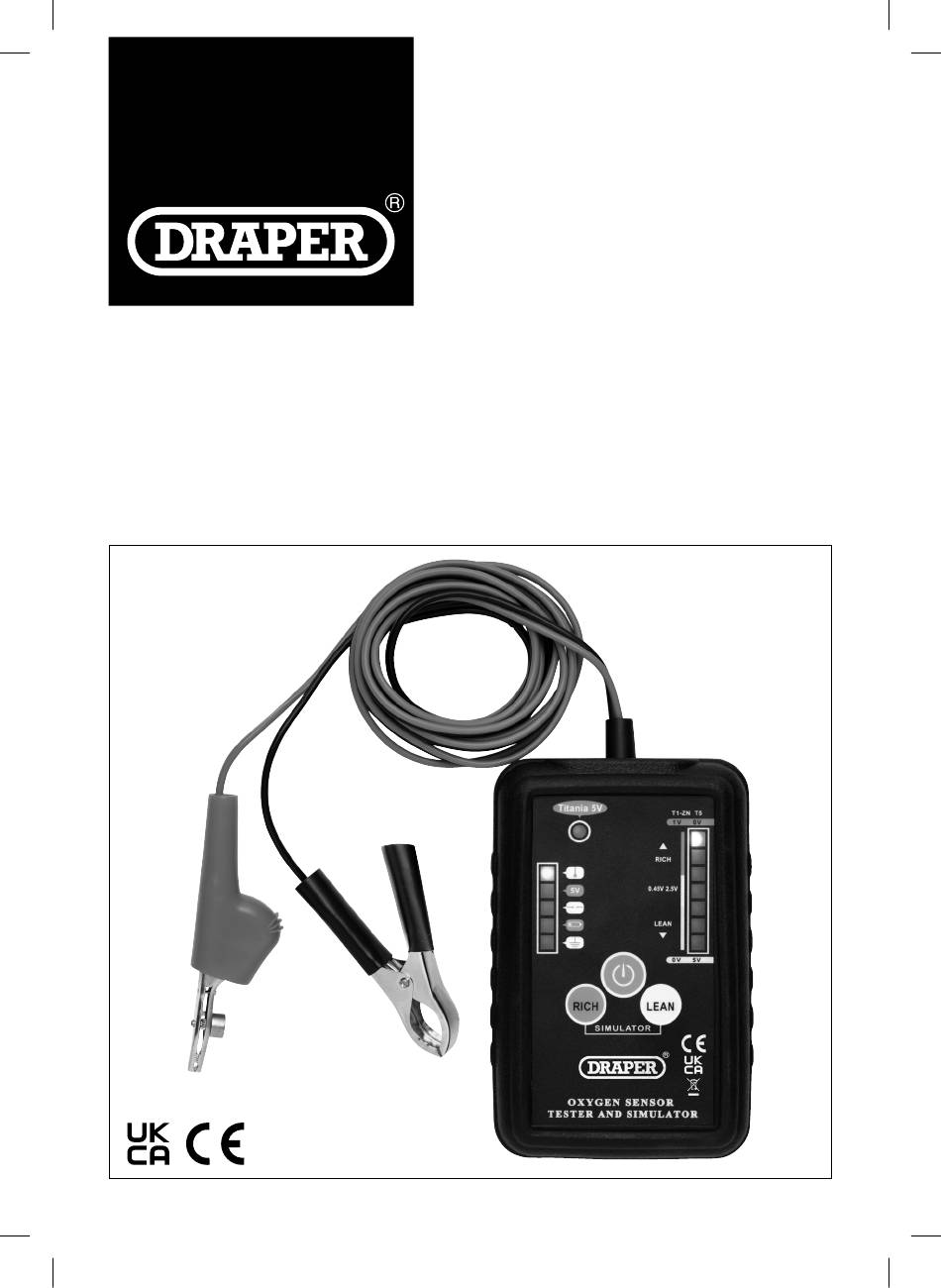

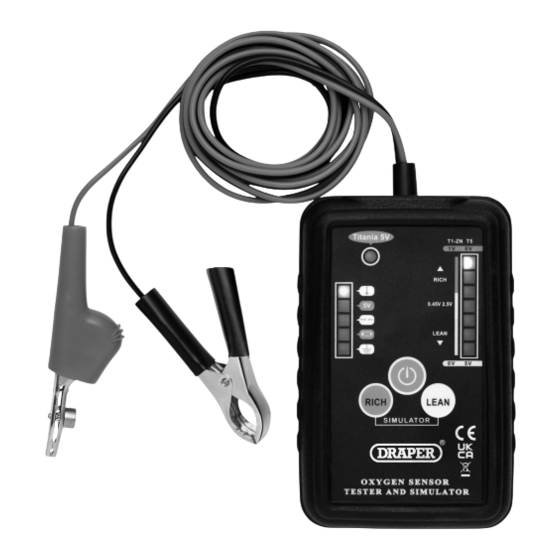

- Page 1 Original Instructions Version 1 April 2024 LAMBDA TEST & SIMULATOR 24708...
-
Page 2: Product Introduction
Any other application beyond the conditions established for testing Zirconia & Titania lambda/oxygen sensors. for use will be considered misuse. Draper Tools accepts Suitable for testing 1 to 4 wire lambda/oxygen sensors no responsibility for improper use of this product. -
Page 3: Health And Safety Information
3. Health and Safety Information Important: Read all the Health and Safety instructions before attempting to operate, maintain or repair this product. Failure to follow these instructions may result in injury or damage to the user, the product or the vehicle. • ALWAYS wear eye protection and appropriate WARNING! protective clothing. - Page 4 5. Identification Carefully remove the product from the packaging and Please contact the Draper Helpline; contact details can examine it for any signs of damage that may have be found at the back of this manual. occurred during shipment. If any part is damaged or missing, do not attempt to use the product.
-
Page 5: Battery Installation
6. Battery Installation 1. To fit or replace the battery, remove the protective Sensor Version Working Output If working cover (10) from the tester and unclip the battery type Temperature Voltage correctly compartment cover (9). Without heater Signal 315 - 425°C 0.45V (single wire) indicator... - Page 6 7. Before Operation 8. Testing Oxygen Sensor 7.3 Signal Indicator Lights (5) Important: Before testing refer to Section 7. Before Operation. CAUTION: If only the top two indicator lights are 8.1 Tester connected to the flashing with 1V Zirconia and 1V Titanium mode Oxygen Sensor the connected sensor is 5V Titanium.
-
Page 7: Maintenance, Storage And Disposal
8. Testing Oxygen Sensor 10. Maintenance, Storage and 8.4 Testing the Oxygen Sensor Off Vehicle (Zirconia Type Only) Disposal CAUTION! The temperature will be high when carrying out this test. To avoid a hazard or WARNING! Do not attempt to repair or service personal injury use insulated tools and wear this product. -
Page 8: Contact Details
Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
