EGR VALVE TESTER
66248
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGRVT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper EGRVT

Summary of Contents for Draper EGRVT

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Introduction

    Draper Tools Limited. In all cases this copyright notice must remain intact. Always refer to the vehicle manufacturer for correct operation and compatibility. Draper tools take no responsibility for any damage to the vehicles systems.

  • Page 3: Table Of Contents

    CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    Supplied with a range of connectors to suit most common vehicles. 4.2 SPECIFICATION Stock No’s..........................66248 Part No’s..........................EGRVT Continuous open/close cycle....................90 seconds Rated Voltage ..........................12V Dimensions (WxHxD) ..................... 68 x 140 x 36mm Weight ............................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS Warning: Risk of Electrocution. Keep hands and fingers away from metal crocodile clips. Caution: Read, understand and follow Safety Rules and Operating Instructions in this manual before using this product. a) Do not attempt to repair unit. There are no serviceable parts. b) Do not expose the unit to extreme temperatures or high humidity.

  • Page 7: Technical Description

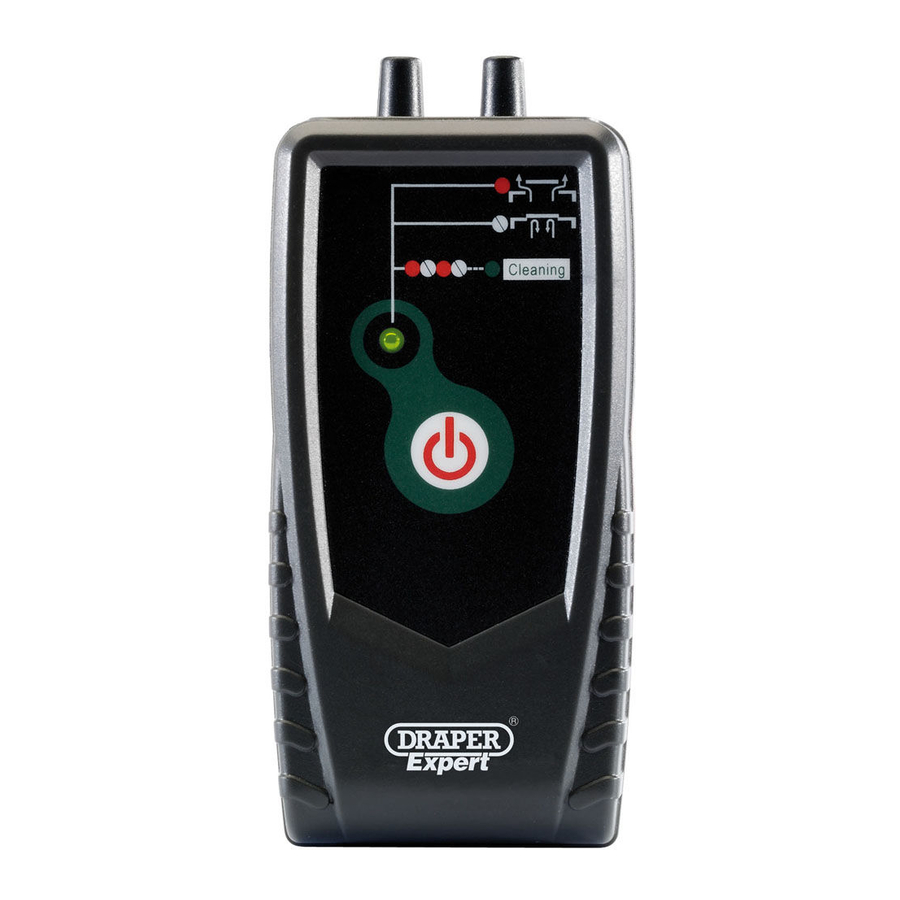

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Indicator LED. Test button. Crocodile clips. EGR Connection lead. - 7 -...
