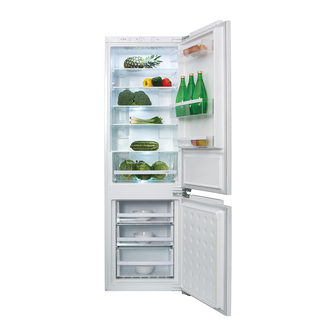

Summary of Contents for CDA FW971
- Page 1 Fridge Freezer Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 compliance with safety requirements of EU Directive 2014/35/EU (Low voltage) and requirements of EU Directive 2014/30/EU (EMC). This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to 1935/2004/EC.
- Page 4 Important Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products. To prevent risk of fire, keep the appliance away from petrol or any other inflammables.
-
Page 5: Before First Use
Before first use You must allow the fridge to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. - Page 6 Fridge • Never put liquids in the refrigerator uncovered. • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator. • Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
- Page 7 • Store food in small packages (ideally less than 2.5kg). This reduces the freezing time and improves the quality of the food after thawing. • Wrap food before putting into the freezer. To stop the wrapping sticking together, ensure it is dry. •...
- Page 8 Storage The fridge section is for short term food storage. Although the temperature can be maintained between 2 - 8˚C, extended periods of food storage is not recommended. As the cold air circulates within the fridge, the temperature can vary between the different sections.
- Page 9 The salad crisper is designed with a humidity control to ensure fruit and vegetables last longer. This can be adjusted by the slider at the front right of the salad crisper. Fully opening the slider control to high humidity restricts the amount of dry air entering the crisper from the fridge compartment, extending the life of items such as lettuce and cucumber.
-
Page 10: Control Panel
Control panel High High REF . FRZ. S.Cool S.Cool fig. 3 A. Power button To put the fridge freezer on standby press and hold the power button for approximately three seconds. To start the compressor working again, press and hold the power button for approximately three seconds. - Page 11 IMPORTANT: Do not use the super cool function for more than 24 hours. C. Freezer thermostat dial The freezer temperature is regulated by this dial. The thermostat can be set between fully anti-clockwise (super freeze function) and fully clockwise (least cold). The super freeze function can be used to freeze large quantities of fresh food as quickly as possible.
-
Page 12: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. Both fridge and freezer are frost free and as such this appliance is designed not to require defrosting. The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. -
Page 13: Defrosting The Fridge
Defrosting the fridge The fridge is cooled by convection using cold air forced through channels at the rear of the fridge. No defrosting is required. Defrosting the freezer The freezer is frost free and as such is designed not to require defrosting. -
Page 14: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working, check: • There is power to the appliance. - Page 15 The cooling gas in the refrigerator will make a slight bubbling noise, even when the compressor is not running. Please note: The LED lighting cannot be replaced without a service call. If the light fails, contact CDA Customer Care. Contact details are on the rear cover of this manual.
-
Page 16: Installation Kit
If you are missing any of these parts please check all drawers within the appliance, as well as any packaging. If parts are still missing, please contact CDA Customer Care. Contact details are on the rear cover of this manual. -
Page 17: Installation
Installation 560-570 550 min 200cm² This appliance must never be installed close to heat sources, e.g. heating elements, cookers or in damp places. 1776- 1782 • The cooling system at the rear of the 1773 appliance must not touch the rear wall. min. - Page 18 The top of the cabinet needs to be vented into the room Recommended size of An air intake should be Refrigerator vent opening: provided somewhere outline 500 x 35mm in the cabinet run to allow free air in. In this If the furniture does example, a plinth vent not allow free air into...
- Page 19 Fitting the product into the cabinet 1. Remove the gasket protection pieces: These are on the hinge-side edge of each door and prevent excessive seal compression during transport. They are required later during the installation process (step 6). Remove the screws and gasket protectors from each door Fig.
- Page 20 4. Fit the magnetic seal strips: Two magnetic seals are supplied to fill the gap between the cabinet and the edge of the products. These simply fit against the left and right edges of the fridge chassis. To make it easier, it is useful to apply a little sticky tape to the top and bottom of each strip to prevent curling.
- Page 21 Fig. 8 Fig. 9 7. Sit the appliance in the housing: Lift the appliance onto the supporting shelf (ensure ventilation requirements have been met) and push the unit in until it is stable. We recommend that you seek the help of another individual when handling this product.
- Page 22 Freezer section Fig. 10 9. Position the product in the housing: The product can now be pushed into the housing unit, ensuring that the two guide pieces are fitted in the hinges and the guide is fitted to the middle fixing bracket. When the guides (on both sides) are flush against the front face of the cabinet sides the product is at the correct depth in the unit.
- Page 23 Fig. 11 Fig. 12 11. Secure the middle fixing bracket: With the guide piece in place slide the lower bracket against the housing unit and tighten the two screws to lock the bracket in position (use a good quality screwdriver of the correct size for this).
- Page 24 Fitting the cabinet decor doors Fit the upper decor door first by following the steps below. 1.Remove the door trims from the top of both appliance doors (‘T’ in Fig. 14). With the upper door, take care not to disturb or damage the magnet (‘M’...
- Page 25 Fig. 15 Fig. 16 Fig. 17 Fig. 18...
- Page 26 5. Place the decor door face-down on a protective cloth or similar and Measuring position the fixing plate centrally in its required position. and drawing a centre line with pencil can help here, depending upon where you want the decor door to sit. If you want an offset for example, then you have to factor this in to your measurements Align the holes in the centre of the fixing plate with the centre line, using the guides to help you (Fig.
- Page 27 Fig. 19 Lower decor fixing brackets Fig. 20 Fig. 21 Please note: When fitting the vertical screws into the decor door through the lower decor fixing brackets, use the large dome headed screws supplied in a polythene bag which also contains the white cover caps.
- Page 28 Adjusting the decor doors The position of the decor doors can be adjusted on all 3 axis by following the guide below. If the range of adjustment detailed below is not enough then the refrigerator is likely not located correctly in the cabinet and/or the upper decor fixing plates are incorrectly positioned.
- Page 29 2. Move the decor door in or out, as required; this gives an adjustment of approximately 3mm. The lower decor brackets are slotted to allow alignment of the decor at the bottom. Fig. 22 Fig. 23 3. When you are happy with the position of the decor door and all lower decor bracket screws are tight, fit the lower decor...
-
Page 30: Electrical Information
Electrical information Warning! This appliance must be earthed. Green and Yellow to Earth Brown to Liv e 13 Amp fuse Cord Clamp Blue to Neutra l fig. 28 The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. - Page 31 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with the letter (E) or by the Earth symbol or coloured GREEN and YELLOW.
- Page 32 Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
