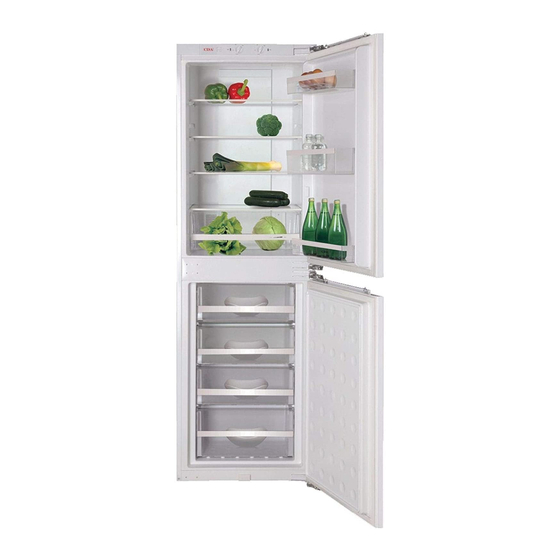

- Page 1 Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC. This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to EEC/89/109.4 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
- Page 4 Important Never store inflammable or explosive items and strong corrosive acids or alkalis in the appliance. This is a household appliance, which is produced in accordance with the national standard. It is intended for food storage only, not for storage of blood, medicine and biological products. To prevent risk of fire, keep the appliance away from petrol or any other inflammables.
-
Page 5: Before First Use
Before first use You must allow the fridge to settle for at least twenty four hours prior to switching the power on. It is recommended that you clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly drying the interior. - Page 6 Fridge • Never put liquids in the refrigerator uncovered. • Never put hot foods in the refrigerator. Warm food should be allowed to cool to room temperature before being put into the refrigerator. • Nothing should rest against the rear wall of the refrigerator, as this will cause frost and possible condensation problems which will be difficult to remove.
- Page 7 • Follow the instructions on the food packaging for storage of frozen food. If no information is provided, foods should not be stored for more than three months after the purchase date. • Store food in small packages (ideally less than 2.5kg). This reduces the freezing time and improves the quality of the food after thawing.
- Page 8 Storage The fridge section is for short term food storage. Although the temperature can be maintained between 0-10˚C, extended periods of food storage is not recommended. As the cold air circulates within the fridge, the temperature can vary between the different sections. As such, foods should be stored in different sections according to type.
- Page 9 To move the shelf, lift up the front section and then pull it outwards. To replace, slide the shelf back into the slot, and the lower the front section. The salad crisper is designed with a humidity control to ensure fruit and vegetables last longer.
-
Page 10: Control Panel
Control panel High High REF. FRZ. S.Cool S.Cool fig. 3 A. Power button To put the fridge freezer on standby press and hold the power button for approximately three seconds. The power light will flash. To start the compressor working again, press and hold the standby button for approximately three seconds until the power light stays lit. - Page 11 C. Freezer thermostat dial The freezer temperature is regulated by this dial. The thermostat can be set between fully anticlockwise (super freeze function) and fully clockwise (least cold). The super freeze function can be used to freeze large quantities of fresh food as quickly as possible.
-
Page 12: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. Both fridge and freezer are frost free and as such this appliance is designed not to require defrosting. The fridge and freezer sections should be cleaned using a solution of bicarbonate of soda and lukewarm water. -
Page 13: Defrosting The Fridge
Defrosting the fridge The fridge is cooled by convection using cold air forced through channels at the rear of the fridge. No defrosting is required. Defrosting the freezer The freezer is frost free and as such is designed not to require defrosting. -
Page 14: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working • Check there is power to the appliance. - Page 15 The cooling gas in the refrigerator will make a slight bubbling noise, even when the compressor is not running. Please note: The LED lighting cannot be replaced without a service call. If the light fails, contact CDA Customer Care. Installation 560-570 This appliance must never be 550 min installed close to heat sources, e.g.
- Page 16 requirements for your appliance. Failure to provide adequate ventilation can lead to increased running costs and premature failure and may invalidate the warranty provided with the appliance. Ventilation The main consideration when installing any refrigeration unit into a fitted kitchen is ventilation. The heat removed from the cooling compartment needs to be dissipated into the atmosphere.
- Page 17 Important Please follow the instructions to install this unit. The open channel at the rear is clearly shown. For the correct operation of the appliance it is important that the top of the housing unit is not blocked off. A channel depth of 40-50mm is normal with most units.
- Page 18 Fitting the product into the cabinet 1. Remove the gasket protection pieces: The gasket protectors prevent excessive seal compression during transport and are required during fig. 6 the installation process. Remove the gasket protector from each door (fig 6) and proceed with the installation. Cover caps are provided to fill the fig.
- Page 19 4. Fitting the magnetic seal strips: Two magnetic seals are supplied to fill the gap between the cabinet and the edge of the products. These simply fit against the left and right edges. To make it easier, it is useful to apply a little sticky tape to the top and bottom of each strip to prevent curling.
- Page 20 8. Fitting the bottom cabinet fixing bracket: A sliding bracket is provided to Guide piece simply slotted secure the non-hinge side of the in to the fixing bracket product to the cabinet. This is fitted to the bottom of the product using fig.
- Page 21 At this stage ensure that the product is centrally aligned within the housing and then remove the guide pieces from the hinges. 10. Securing the product to the housing: Secure the product to the housing at the hinge side by using two screws in each hinge.
- Page 22 Fitting the cabinet Upper fixing plate (Dismantling) fascia doors First, fit the upper fascia by following the steps below. After fitting the upper fascia in the correct position, use the Refrigerator door lower edge of the upper fascia as a Upper fixing plate fig.
- Page 23 of appropriate length. Please take Under end face care to ensure the screws selected of fascia will not punch through the fascia door. 4. Remove the fitting guides. 5. Attach the fascia door assembly to the refrigerator (onto the height Fitting guides adjustment screws) and loosely fit the securing nuts.
- Page 24 Adjusting the position of the fascia doors The position of the fascia doors can be made in all 3 axes by following the guide shown below (figure 20). If the range of adjustment detailed below is not enough then the refrigerator is not located correctly in the cabinet and/ fig.
- Page 25 Depth adjustment (Z): Ensure that the vertical and horizontal positions are correct before adjusting the depth. 1. Loosen the depth adjustment screw (C). 2. Move the fascia in or out, as required; this gives an adjustment of approximately 3mm. the lower fascia brackets are slotted to allow alignment of the fascia at the bottom.
- Page 26 Fitting the trims and cover pieces 1. Open the door and lift out the decorative covers (marked ‘a’) in figure fig. 23 2. Remove the position guides (d), turn them round so that the lip at the Cupboard door top faces outwards and insert them Refrigerator door into the slots shown in the image Cabinet door...
- Page 27 400. Secure the mounting bracket to the fascia panel using the provided wood screws, ensuring that the screws will not penetrate through the fascia where there are any rebates, etc. and then remove the guides. Any small errors, as in the image above, can be adjusted for after the fascia has been mounted.
-
Page 28: Electrical Information
Electrical information Warning! This appliance must be earthed. The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below: 1. Remove the fuse cover and fuse. 2. - Page 29 As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:- • The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with letter (E) or by the Earth symbol or coloured GREEN and YELLOW.
- Page 32 Please contact our Customer Care Department for Service on the details below Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
