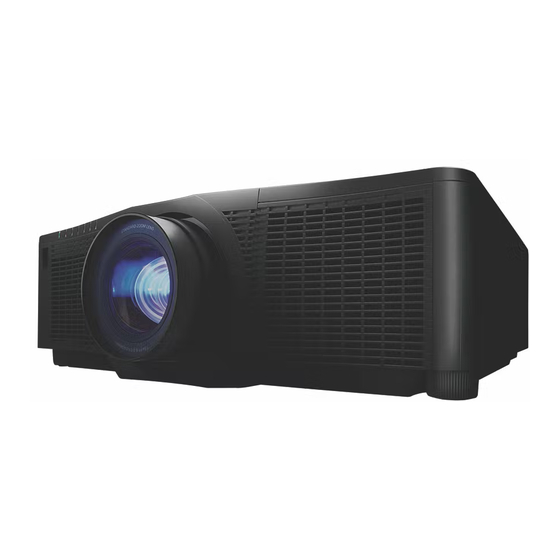

Christie DWU1052 Technical User's Manual
Q series
Hide thumbs
Also See for DWU1052:
- User manual (127 pages) ,
- Network quick setup manual (197 pages) ,
- Quick setup manual (159 pages)
Related Manuals for Christie DWU1052
Summary of Contents for Christie DWU1052

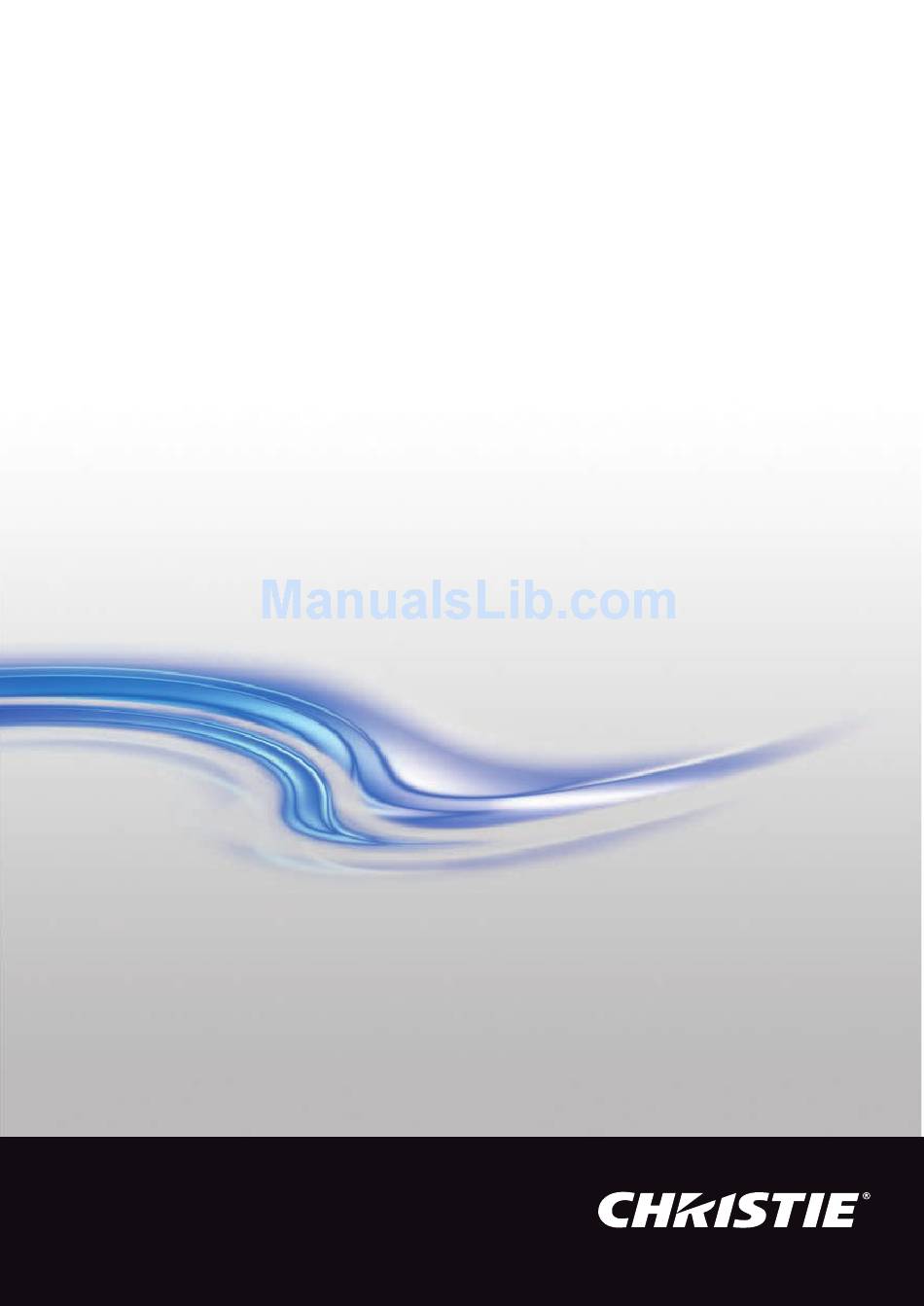

- Page 1 Technical User Manual 020-000857-01 Q Series DWU1052/DHD1052...
- Page 2 Full HD (60Hz) 67.5 VESA *2 1920 x 1200 W-UXGA (60Hz) VESA Reduced Blanking *1) Only for DHD1052 *2) Only for DWU1052 (continued on next page) DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 3 WSXGA+ (60Hz) 65.3 VESA 1600 x 1200 UXGA (60Hz) VESA *1 1920 x 1200 W-UXGA (60Hz) VESA Reduced Blanking *1) Only for DWU1052 (continued on next page) DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 4 720p (50Hz) 37.5 720p (60Hz) 1920 x 1080i 1080i (50Hz) 28.1 1080i (60Hz) 33.8 1920 x 1080p 1080p (50Hz) 56.3 1080p (60Hz) 67.5 (continued on next page) DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 5 WSXGA+ (60Hz) 65.3 VESA 1600 x 1200 UXGA (60Hz) VESA *1 1920 x 1200 W-UXGA (60Hz) VESA Reduced Blanking *1) Only for DWU1052 (continued on next page) DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 6 720p (50Hz) 37.5 720p (60Hz) 1920 x 1080i 1080i (50Hz) 28.1 1080i (60Hz) 33.8 1920 x 1080p 1080p (50Hz) 56.3 1080p (60Hz) 67.5 (continued on next page) DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 7 • The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G. • The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector. DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 8 13 H. sync / Composite sync. Ground Red, Ground Cr/Pr 14 V. sync. Ground Green, Ground Y A : SCL (DDC clock) B : (No connection) Ground Blue, Ground Cb/Pb DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 9 14 +5V Power 22 T.M.D.S. Clock Shield DDC Clock DDC Data 15 Ground (for +5V) 23 T.M.D.S. Clock + 16 Hot Plug Detect 24 T.M.D.S. Clock - 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 10 ⑥ ⑦ ⑧ ⑨ ⑤ ④ ③ ② ① refer to the next section. Signal Signal Signal (No connection) (No connection) Ground (No connection) (No connection) DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 11 HDBaseT0- HDBaseT2- HDBaseT3- HDBaseT1+ HDBaseT1- RJ-45 jack ⑧ ⑥ ④ ② ② ④ ⑥ ⑧ ① ③ ⑤ ⑦ ⑦ ⑤ ③ ① Signal Signal Signal 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
-
Page 12: Remote Control
Single link HD-SDI signal: conforming to SMPTE ST 292 standard YPBPR 4:2:2 10-bit 720p@50/60, 1080i@50/60, 1080sf@25/30 3G-SDI Level-A signal: conforming to SMPTE ST 424 standard YPBPR 4:2:2 10-bit 1080p@50/60 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH... - Page 13 (3) TD (4) － DTR (4) GND (5) (5) GND (6) － DSR (6) RTS (7) (7) RTS DTS (8) (8) CTS (9) － RI (9) 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 14 <DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h] Refer to the Communication command table (&above). [Type] [Setting code] For byte number 9 to 12, refer to RS-232C Communication / Network command table (&21). DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
-
Page 15: Response Code / Error Code
Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer. 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical... - Page 16 LAN or HDBaseT port ・LAN cable (CAT-5e or greater) ・For HDBaseT connection - CAT-5e or greater - shielded type (connectors included) - straight cable - single cable DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
-
Page 17: Communication Port
Confirm this setting is the same for [Network Network Control Control Port1 (Port: 23)] and [Network Re-enter Authentication Control Port2 (Port: 9715)]. Default setting is blank. Password 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical... -
Page 18: Command Control Settings
• Provide an interval of at least 40ms between the response code and any other code. • Commands are not accepted during warm-up. DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH... - Page 19 Otherwise, an authentication error will be returned. NOTE • For the transmission of the second or subsequent commands, the authentication data can be omitted for the same connection. 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 20 LAN port ・LAN cable (CAT-5e or greater) - CAT-5e or greater - shielded type (connectors included) - straight cable - single cable RS-232C cable (cross) RS-232C DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
-
Page 21: Communication Settings
• Turn off the power and unplug both the projector and other devices before connecting them. • For details of Transmission method, refer to 7.4 Transmission method in the Network Guide. 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical... - Page 22 01 00 INDEX BE EF 06 00 2B 93 01 00 07 24 02 00 BE EF 06 00 78 92 02 00 07 24 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 23 MAIN SIZE LARGE BE EF 06 00 92 47 01 00 11 23 81 00 BE EF 06 00 F1 27 02 00 11 23 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
-
Page 24: Secondary Source
BE EF 06 00 75 23 02 00 02 23 00 00 PbyP/PIP Execute BE EF 06 00 01 27 06 00 16 23 00 00 SWAP DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH... -
Page 25: Frame Lock
8 CUSTOM BE EF 06 00 37 FF 01 00 A1 30 17 00 BE EF 06 00 F4 F0 02 00 A1 30 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical... - Page 26 CB FE 05 00 97 30 00 00 User GAMMA Execute BE EF 06 00 2C C3 06 00 57 70 00 00 Point 8 Reset DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 27 BE EF 06 00 D3 72 04 00 02 22 00 00 COLOR Decrement BE EF 06 00 02 73 05 00 02 22 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 28 BE EF 06 00 2E 63 04 00 03 27 00 00 HUE C Decrement BE EF 06 00 FF 62 05 00 03 27 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 29 B7 66 05 00 15 27 00 00 Advanced Color Adjustment Execute BE EF 06 00 34 E9 06 00 DD 70 00 00 SATURATION M Reset 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 30 06 00 26 71 05 00 09 22 00 00 Execute BE EF 06 00 EC D9 06 00 27 70 00 00 OVER SCAN Reset DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 31 FORMAT COMPUTER BE EF 06 00 32 74 01 00 1D 22 02 00 BE EF 06 00 61 75 02 00 1D 22 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 32 06 00 52 E5 01 00 E1 20 01 00 SDI / DIGITAL 1 BE EF 06 00 F1 E4 02 00 E1 20 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 33 06 00 57 97 04 00 41 21 00 00 Left Side Distortion Decrement BE EF 06 00 86 96 05 00 41 21 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 34 BE EF 06 00 4A 95 04 00 4B 31 00 00 BLENDING BOTTOM Decrement BE EF 06 00 9B 94 05 00 4B 31 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 35 06 00 D2 73 04 00 52 27 00 00 BALANCE OFFSET B Decrement BE EF 06 00 03 72 05 00 52 27 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 36 DYNAMIC IRIS PRESENTATION BE EF 06 00 5B 2E 01 00 04 33 11 00 BE EF 06 00 38 22 02 00 04 33 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 37 05 00 BLACK BE EF 06 00 9B D0 01 00 00 30 06 00 BE EF 06 00 08 D3 02 00 00 30 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
-
Page 38: Osd Message
BE EF 06 00 6E 79 01 00 20 22 01 00 COMPUTER IN BE EF 06 00 CD 78 02 00 20 22 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH... - Page 39 06 00 A4 21 02 00 0D 33 00 00 LAMP-1 HOURS BE EF 06 00 C2 FF 02 00 90 10 00 00 Lower Bytes 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 40 ECO MODE BE EF 06 00 F6 24 01 00 01 36 37 00 BE EF 06 00 F5 32 02 00 01 36 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 41 ECO MODE BE EF 06 00 4E 25 01 00 03 36 37 00 BE EF 06 00 4D 33 02 00 03 36 00 00 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
- Page 42 EXTRON for BE EF 06 00 A3 BC 01 00 60 1B 01 00 HDBaseT BE EF 06 00 00 BD 02 00 60 1B 00 00 DWU1052/DHD1052 020-000857-01 Rev. 1 (12-2015) User's Manual - Technical LIT MAN USR DWU/DHD1052 TECH...
- Page 43 11 23 31 32 33 36 37 51 Responds with the name set in the item Projector Name inquiry NAME ? PROJECTOR NAME of the NETWORK menu 020-000857-01 Rev. 1 (12-2015) DWU1052/DHD1052 LIT MAN USR DWU/DHD1052 TECH User's Manual - Technical...
