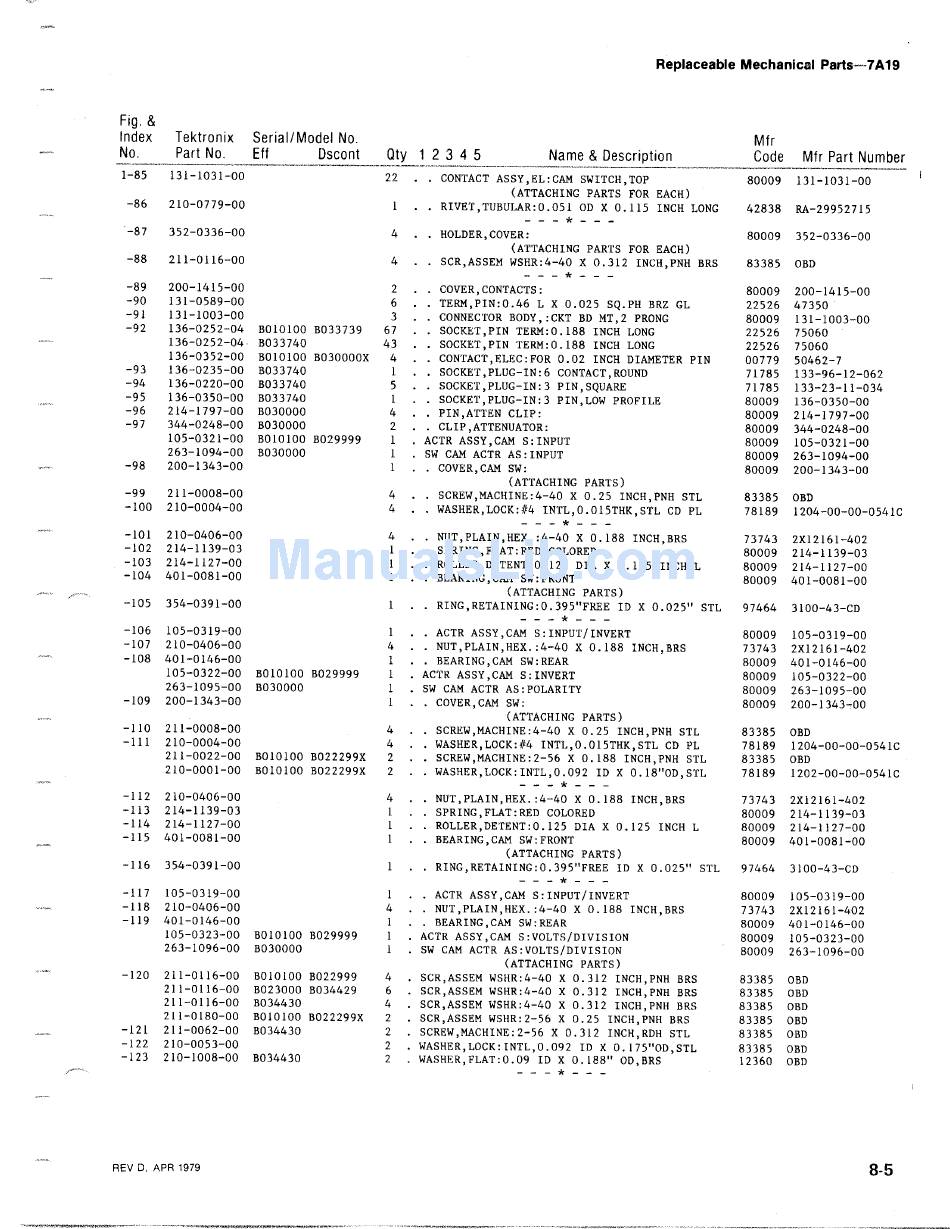

Tektronix 7A19 Instruction Manual page 43

REV D, APR 1979
Replaceable Mechanical Parts--7A19
8- 5
Fig . &
Index
No m-
1-85
Tektronix
Part No
131-1031-00
Serial/Model No .
Eff Dscont
__
Qty
22
1 .-2 3 v4 5^
.__._._.. _-
. Name^& Description
.
. CONTACT ASSY,EL :CAM SWITCH,TOP
Mfr
Code
80009
Mfr Part Number
131-1031-00
(ATTACHING PARTS FOR EACH)
-86
210-0779-00
1 . . RIVET,TUBUI.AR :0 .051 OD X 0 .115 INCH LONG
42838 RA-29952715
-87
352-0336-00
4 . . HOLDER,COVER :
80009 352-0336-00
(ATTACHING PARTS FOR EACH)
-88 211-0116-00
4 . . SCR,ASSEM WSHR :4-40 X 0 .312 INCH,PNH BRS
83385 OBD
-89 200-1415-00
2 . . COVER,CONTACTS :
80009 200-1415-00
-90 131-0589-00
6 . . TERM,PIN :0 .46 L X 0 .025 SQ .PH BRZ GL
22526
47350'
-91 131-1003-00
3 . . CONNEC'T'OR BODY, :CKT BD MT,2 PRONG
80009 131-1003-00
-92 136-0252-04 B010100 B033739
67 . . SOCKET,PIN TERM :0 .188 INCH LONG
22526 75060
136-0252-04
B033740
43 . . SOCKET,PIN TERM :0 .188 INCH LONG
22526 75060
136-0352-00 B010100 B03000OX
4
. . CONTACT,ELEC :FOR 0 .02 INCH DIAMETER PIN
00779 50462-7
-93 136-0235-00
B033740 1 . . SOCKET,PLUG-IN :6 CONTACT,ROUND
71785 133-96-12-062
-94 136-0220-00
B033740 5 . . SOCKET,PLUG-IN :3 PIN,SQUARE
71785 133-23-11-034
-95 136-0350-00 B033740
1 . . SOCKET,PLUG-IN :3 PIN,LOW PROFILE
80009 136-0350-00
-96 214-1797-00 B030000
4 . . PIN,ATTEN CLIP :
80009
214-1797-00
-97 344-0248-00
B030000 2 . . CLIP,ATTENUATOR :
80009 344-0248-00
105-0321-00
B010100 B029999 1 . ACTR ASSY,CAM S :INPUT
80009 105-0321-00
263-1094-00
B030000 1 . SW CAM ACTR AS :INPUT
80009 263-1094-00
-98 200-1343-00
1 . . COVER,CAM SW :
80009 200-1343-00
(ATTACHING PARTS)
-99 211-0008-00
4 . . SCREW,MACHINE :4-40 X 0 .25 INCH,PNH STL
83385 OBD
-100 210-0004-00 4 . . WASHER,LOCK :#4 INTL,0 .015THK,STL CD PL
78189
1204-00-00-0541C
-101
210-0406-00 4 . . NUT,PLAIN,HEX . :4-40 X 0 .188 INCH,BRS
73743 2X12161-402
-102 214-1139-03
1 . . SPRING,FLAT :RED COLORED
80009 214-1139-03
-103 214-1127-00
1 . . ROLLER,DETENT :0 .125 DIA X 0 .125 INCH L
80009 214-1127-00
-104 401-0081-00
1 . . BEARING,CAM SW :FRONT
80009 401-0081-00
(ATTACHING PARTS)
-105
354-0391-00 1 . . RING,RETAINING :0 .395"FREE ID X 0 .025" STL
97464
3100-43-CD
-106 105-0319-00
1 . . ACTR ASSY,CAM S :INPUT/INVERT
80009 105-0319-00
-107 210-0406-00
4 . . NUT,PLAIN,HEX . :4-40 X 0 .188 INCH,BRS
73743
2X12161-402
-108 401-0146-00
1 . . BEARING,CAM SW :REAR
80009 401-0146-00
105-0322-00
B010100 B029999 1 . ACTR ASSY,CAM S :INVERT
80009
105-0322-00
263-1095-00
B030000 1 . SW CAM ACTR AS :POLARITY
80009 263-1095-00
-109 200-1343-00
1 . . COVER,CAM SW :
80009 200-1343-00
(ATTACHING PARTS)
-110 211-0008-00
4 . . SCREW,MACHINE :4-40 X 0 .25 INCH,PNH STL
83385 OBD
-111 210-0004-00
4 . . WASHER,LOCK :#4 INTL,0 .015THK,STL CD PL
78189 1204-00-00-0541C
211-0022-00 B010100 B022299X
2 . . SCREW,MACHINE :2-56 X 0 .188 INCH,PNH STL
83385 OBD
210-0001-00 B010100 B022299X 2 . . WASHER,LOCK :INTL,0 .092 ID X 0 .18"OD,STL
78189 1202-00-00-0541C
-112 210-0406-00
4 . . NUT,PLAIN,HEX . :4-40 X 0 .188 INCH,BRS
73743 2X12161-402
-113 214-1139-03
1 . . SPRING,FLAT :RED COLORED
80009 214-1139-03
-114
214-1127-00 1 . . ROLLER,DETENT :0 .125 DIA X 0 .125 INCH L
80009 214-1127-00
-115 401-0081-00
1 . . BEARING,CAM SW :FRONT
80009 401-0081-00
(ATTACHING PARTS)
-116 354-0391-00
1 . . RING,RETAINING :0 .395"FREE ID X 0 .025" STL
97464 3100-43-CD
-117 105-0319-00
1 . . ACTR ASSY,CAM S :INPUT/INVERT
80009 105-0319-00
-118 210-0406-00
4
. . NUT,PLAIN,HEX . :4-40 X 0 .188 INCH,BRS
73743 2X12161-402
-119
401-0146-00 1 . . BEARING,CAM SW :REAR
80009 401-0146-00
105-0323-00 B010100 B029999 1 . ACTR ASSY,CAM S :VOLTS/DIVISION
80009 105-0323-00
263-1096-00 B030000
1 . SW CAM ACTR AS :VOLTS/DIVISION
80009
263-1096-00
(ATTACHING PARTS)
-120 211-0116-00 B010100 B022999
4 . SCR,ASSEM WSHR :4-40 X 0 .312 INCH,PNH BRS
83385
OBD
211-0116-00
B023000 B034429
6 . SCR,ASSEM WSHR :4-40 X 0 .312 INCH,PNH BRS
83385 OBD
211-0116-00 B034430
4 . SCR,ASSEM WSHR :4-40 X 0 .312 INCH,PNH BRS
83385 OBD
211-0180-00 B010100 B022299X
2 . SCR,ASSEM WSHR :2-56 X 0 .25 INCH,PNH BRS
83385 OBD
-121 211-0062-00 B034430
2 . SCREW,MACHINE :2-56 X 0 .312 INCH,RDH STL
83385
OBD
-122 210-0053-00
2 . WASHER,LOCK :INTL,0 .092 ID X 0 .175"OD,STL
83385 OBD
-123
210-1008-00 B034430 2 . WASHER,FLAT :0 .09 ID X 0 .188" OD,BRS
12360 OBD
