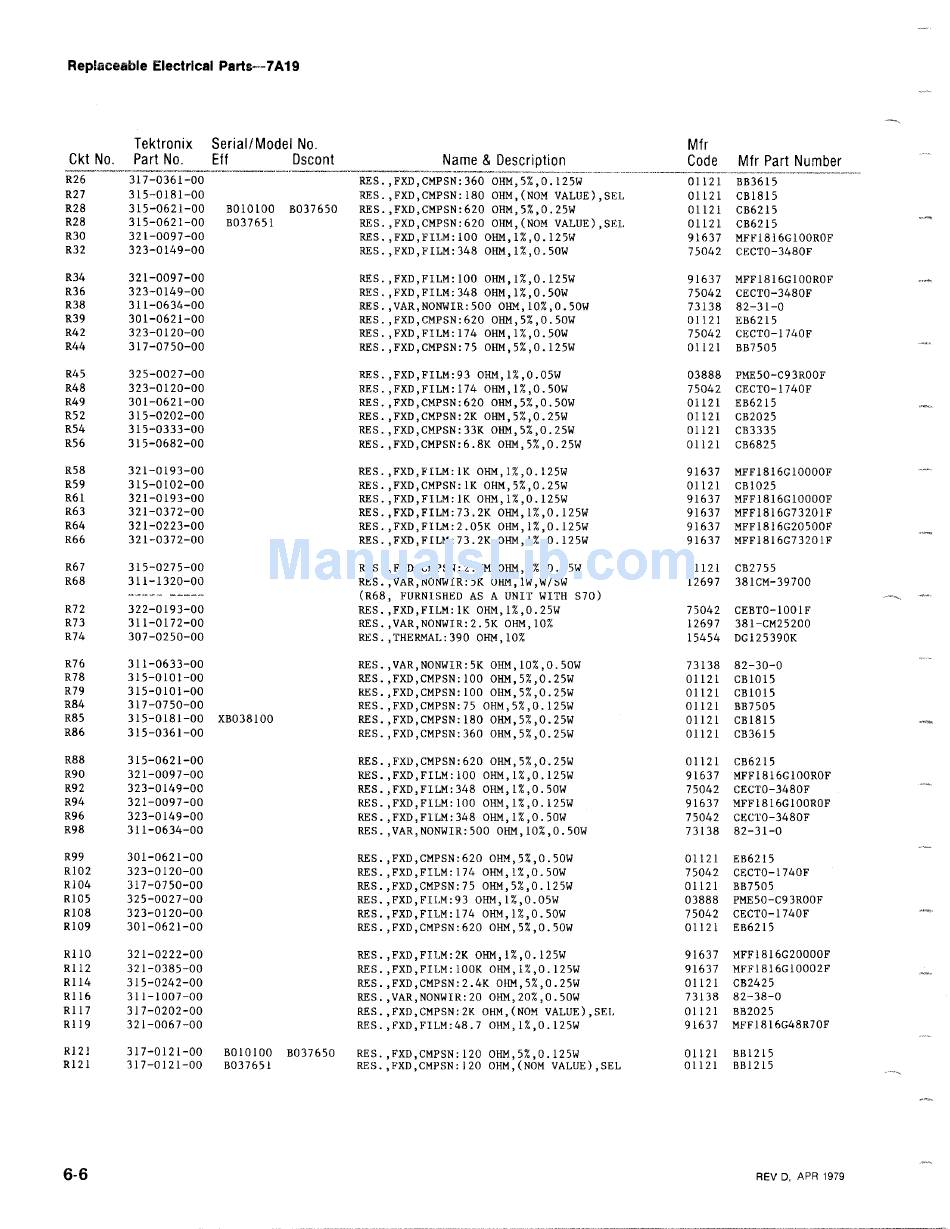

Replaceable Electrical Parts--7A19
Ckt No .
Tektronix
Serial/Model
Part No . Eff
No .
Dscont Name & Description
Mfr
Code Mfr Part Number
317-0361-0p -
RES
.,FXD,CMPSN:360OHM,5%,,0 .125Wo1121BB3615 ._ '
.__ ._._.___..._ .
R27
315-0181-00 RES .,FXD,CMPSN:180 OHM,(NOM VALUE),SEL 01121 CB1815
R28
315-0621-00 B010100 B037650 RES .,FXD,CMPSN :620 OHM,5%,0 .25W 01121 CB6215
R28 315-0621-00
B037651 RES .,FXD,CMPSN:620 OHM,(NOM VALUE),SEL 01121 CB6215
R30 321-0097-00
RES .,FXD,FILM :100 OHM,I%,0 .125W 91637 MFF1816GI00ROF
R32 323-0149-00 RES .,FXD,FILM :348 OHM,1%,0 .50W
75042 CECTO-348OF
R34 321-0097-00 RES .,FXD,FILM :100 OHM,I%,0 .125W
91637 MFF1816GI00ROF
R36 323-0149-00 RES .,FXD,FILM :348 OHM,1%,0 .50W
75042 CECTO-348OF
R38
311-0634-00 RES .,VAR,NONWIR :500 O1LM,10%,0 .50W
73138 82-31-0
R39
301-0621-00 RES .,FXD,CMPSN :620 OHM,5%,0 .50W 01121 EB6215
R42 323-0120-00 RES .,FXD,FILM :174 OHM,1%,0 .50W
75042 CECTO-174OF
R44 317-0750-00
RES .,FXD,CMPSN :75 OHM,5%,0 .125W 01121 BB7505
R45 325-0027-00 RES .,FXD,FILM :93 OHM,1%,0 .05W
03888 PME50-C93ROOF
R48 323-0120-00 RES .,FXD,FILM :174 OHM,1%,0 .50W 75042 CECTO-174OF
R49 301-0621-00 RES .,FXD,CMPSN :620 OHM,5%,0 .50W 01121
EB6215
R52
315-0202-00 RES .,FXD,CMPSN :2K OHM,5%,0 .25W 01121 CB2025
R54
315-0333-00 RES .,FXD,CMPSN :33K OHM,5%,0 .25W 01121 CB3335
R56 315-0682-00
RES .,FXD,CMPSN :6 .8K OHM,5%,0 .25W 01121 CB6825
R58 321-0193-00 RES .,FXD,FILM :IK OHM,I%,0 .125W
91637 MFF1816CI000OF
R59 315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0 .25W
01121 CB1025
R61 321-0193-00 RES .,FXD,FILM :IK OHM,I%,0 .125W 91637 MFF1816GI000OF
R63
321-0372-00 RES .,FXD,FILM :73 .2K OHM,I%,0 .125W 91637 MFF1816G73201F
R64
321-0223-00 RES .,FXD,FILM :2 .05K OHM,1%,0 .125W 91637 MFF1816G20500F
R66
321-0372-00 RES .,FXD,FILM :73 .2K OHM,I%,0 .125W 91637 MFF1816G73201F
R67 315-0275-00
RES .,FXD,CMPSN :2 .7M OHM,5%,0 .25W 01121 CB2755
R68 311-1320-00
RES .,VAR,NONWIR :5K OHM,1W,W/SW 12697 381CM-39700
(R68, FURNISHED AS A UNIT WITH S70)
R72 322-0193-00
RES .,FXD,FILM :IK OHM,1%,0 .25W 75042 CEBTO-1001F
R73 311-0172-00 RES .,VAR,NONWIR :2 .5K OHM,10% 12697 381-CM25200
R74 307-0250-00 RES .,THERMAL :390 OHM,10%
15454 DG125390K
R76
311-0633-00 RES .,VAR,NONWIR :5K OHM,10%,0 .50W
73138 82-30-0
R78 315-0101-00
RES .,FXD,CMPSN:100 OHM,5%,0 .25W 01121 CB1015
R79 315-0101-00
RES .,FXD,CMPSN:100 OHM,5%,0 .25W 01121 CB1015
R84
317-0750-00 RES .,FXD,CMPSN:75 OHM,5%,0 .125W
01121 BB7505
R85
315-0181-00 XB038100 RES .,FXD,CMPSN:180 OHM,5%,0 .25W
01121 CB1815
R86
315-0361-00 RES .,FXD,CMPSN :360 OHM,5%,0 .25W 01121 CB3615
R88 315-0621-00
RES .,FXD,CMPSN:620 OHM,5%,0 .25W 01121 CB6215
R90
321-0097-00 RES .,FXD,FILM :100 OHM,I%,0 .125W 91637 MFF1816GI00ROF
R92 323-0149-00
RES .,FXD,FILM :348 OHM,1%,0 .50W 75042 CECTO-348OF
R94 321-0097-00
RES .,FXD,FILM :100 OHM,I%,0 .125W 91637 MFF1816GI00ROF
R96 323-0149-00
RES .,FXD,FILM :348 OHM,1%,0 .50W 75042 CECTO-348OF
R98 311-0634-00
RES .,VAR,NONWIR :500 OHM,10%,0 .50W 73138 82-31-0
R99 301-0621-00 RES .,FXD,CMPSN :620 OHM,5%,0 .50W
01121 EB6215
8102 323-0120-00 RES .,FXD,FILM :174 OHM,1%,0 .50W
75042 CECTO-174OF
R104
317-0750-00 RES .,FXD,CMPSN :75 OHM,5%,0 .125W 01121
BB7505
R105 325-0027-00 RES .,FXD,FII.M :93 OHM,I%,0 .05W 03888 PME50-C93ROOF
R108 323-0120-00 RES .,FXD,FILM :174 OHM,1%,0 .50W 75042 CECTO-174OF
8109
301-0621-00 RES .,FXD,CMPSN :620 OHM,5%,0 .50W 01121 EB6215
R110 321-0222-00
RES .,FXD,FILM :2K OHM,I%,0 .125W 91637
MFF1816G20000F
R112 321-0385-00
RES .,FXD,FILM :IOOK OHM,1%,0 .125W 91637
MFF1816GI0002F
8114
315-0242-00 RES .,FXD,CMPSN :2 .4K OHM,5%,0 .25W 01121 CB2425
R116 311-1007-00
RES .,VAR,NONWIR :20 OHM,20%,0 .50W 73138
82-38-0
R117
317-0202-00 RES .,FXD,CMPSN :2K ORM,(NOM VALUE),SEI . 01121 BB2025
R119 321-0067-00
RES .,FXD,FILM :48 .7 OHM,I%,0 .125W 91637
MFF1816G48R70F
R121
317-0121-00 B010100
B037650 RES .,FXD,CMPSN :120 OHM,5%,0 .125W 01121 BB1215
R121 317-0121-00
B037651 RES .,FXD,CMPSN :120 OHM,(NOM VALUE),SEL 01121 BB1215
6-6
REV D, APR 1979
