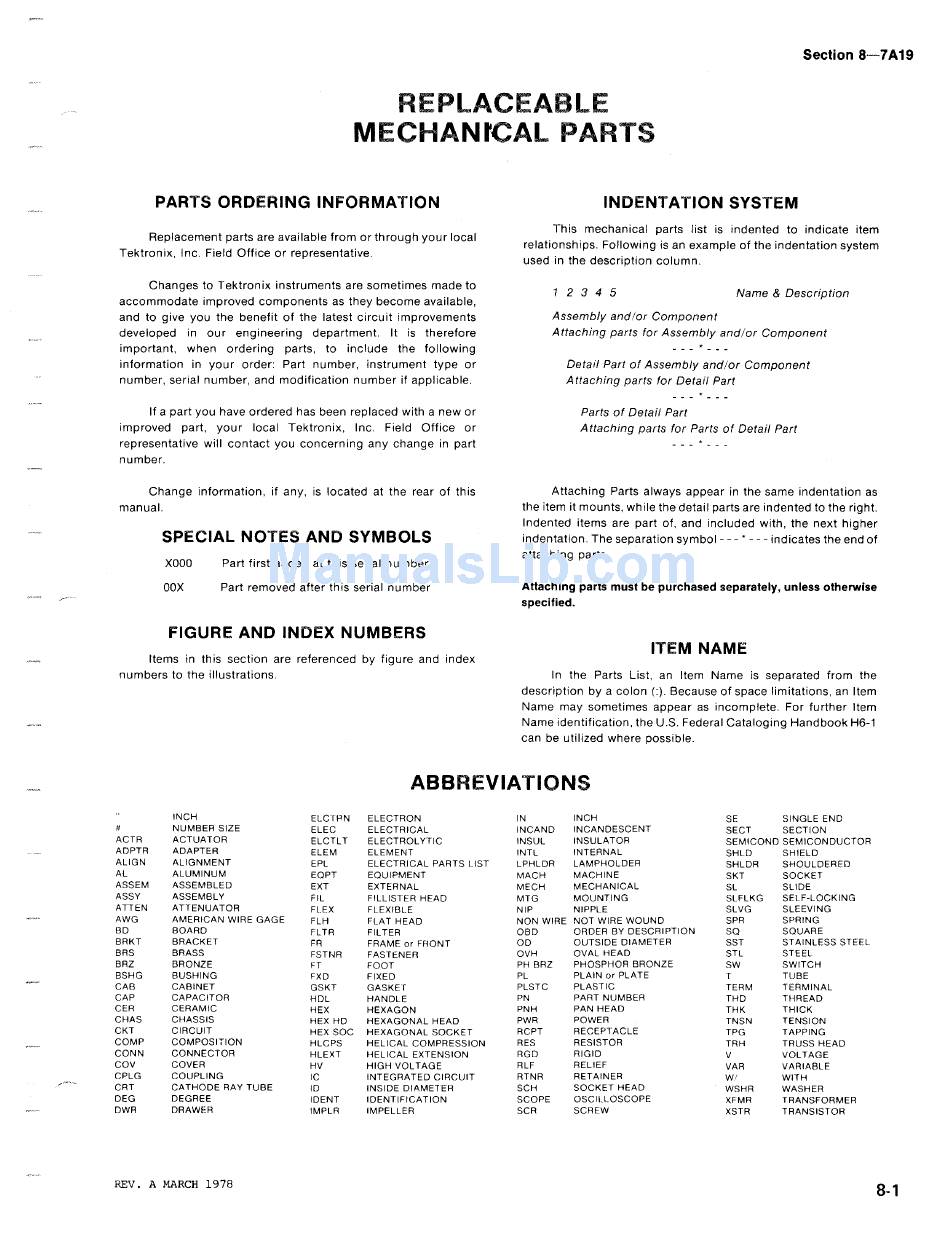

Electrical Parts List - Tektronix 7A19 Instruction Manual

Replacement parts are available from or through your local
Tektronix, Inc. Field Office or representative .
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available,
and to give you the benefit of the latest circuit improvements
developed in our engineering department . It is therefore
important, when ordering parts, to include the following
information in your order: Part number, instrument type or
number, serial number, and modification number if applicable .
If a part you have ordered has been replaced with a new or
improved part, your local Tektronix, Inc .
Field Office or
representative will contact you concerning any change in part
number .
Change information, if any, is located at the rear of this
manual .
Items in this section are referenced by figure and index
numbers to the illustrations .
PARTS ORDERING INFORMATION
SPECIAL NOTES AND SYMBOLS
X000
00X
FIGURE AND INDEX NUMBERS
REV, A MARCH 1978
Part first added at this serial number
Part removed after this serial number
ABB
INDENTATION SYSTEM
Section 8--7A19
This mechanical parts list is indented to indicate item
relationships . Following is an example of the indentation system
used in the description column .
1 2 3 4 5
Name & Description
Assembly and/or Component
Attaching parts for Assembly and/or Component
Detail Part of Assembly and/or Component
Attaching parts for Detail Part
Parts of Detail Part
Attaching parts for Parts of Detail Part
Attaching Parts always appear in the same indentation as
the item it mounts, while the detail parts are indented to the right.
Indented items are part of, and included with, the next higher
indentation . The separation symbol ---' --- indicates the end of
attaching parts.
Attaching parts must be purchased separately, unless otherwise
specified.
In the Parts List, an Item Name is separated from the
description by a colon ( :) . Because of space limitations, an Item
Name may sometimes appear as incomplete . For further Item
Name identification, the U .S . Federal Cataloging Handbook H6-1
can be utilized where possible .
VIATI N
ITEM NAME
INCH
ELC - rPN ELECTRON
NUMBER SIZE
ELEC ELECTRICAL
ACTR ACTUATOR
ELCTLT ELECTROLYTIC
ADPTR ADAPTER
ELEM ELEMENT
ALIGN ALIGNMENT
EPL ELECTRICAL PARTS LIST
AL ALUMINUM
EQPT EQUIPMENT
ASSEM
ASSEMBLED EXT
EXTERNAL
ASSY ASSEMBLY
FIL FILLISTER HEAD
ATTEN ATTENUATOR
FLEX FLEXIBLE
AWG AMERICAN WIRE GAGE
FLH FLAT HEAD
BD BOARD
FLTR FILTER
BRKT BRACKET
FR FRAME or FRONT
BRS BRASS
FSTNR
FASTENER
BRZ
BRONZE FT
FOOT
BSHG BUSHING FXD FIXED
CAB
CABINET GSKT GASKET
CAP CAPACITOR
HDL HANDLE
CER CERAMIC
HEX HEXAGON
CHAS CHASSIS
HEX HD HEXAGONAL HEAD
CKT CIRCUIT
HEX SOC HEXAGONAL SOCKET
COMP COMPOSITION HLCPS HELICAL COMPRESSION
CONN CONNECTOR HLEXT HELICAL EXTENSION
COV COVER HV HIGH VOLTAGE
CPLG COUPLING
IC INTEGRATED CIRCUIT
CRT CATHODE RAY TUBE
ID INSIDE DIAMETER
DEG DEGREE
IDENT IDENTIFICATION
DWR DRAWER
IMPLR IMPELLER
IN INCH
SE SINGLE END
INCAND
INCANDESCENT
SECT SECTION
INSUL INSULATOR SEMICOND SEMICONDUCTOR
INTL INTERNAL SHLD SHIELD
LPHLDR LAMPHOLDER SHLDR SHOULDERED
MACH MACHINE
SKT SOCKET
MECH
MECHANICAL
SL SLIDE
MTG MOUNTING SLFLKG SELF-LOCKING
NIP NIPPLE SLVG SLEEVING
NON WIRE NOT WIRE WOUND SPR
SPRING
OBD
ORDER BY DESCRIPTION
SO SQUARE
OD
OUTSIDE DIAMETER
SST STAINLESS STEEL
OVH
OVAL HEAD
STL STEEL
PH BRZ
PHOSPHOR BRONZE
SW SWITCH
PL
PLAIN or PLATE
T TUBE
PLSTC
PLASTIC
TERM TERMINAL
PN
PART NUMBER
THD THREAD
PNH
PAN HEAD
THK THICK
PWR POWER TNSN TENSION
RCPT RECEPTACLE TPG TAPPING
RES RESISTOR TRH TRUSS HEAD
RGD RIGID
V VOLTAGE
RLF RELIEF
VAR VARIABLE
RTNR RETAINER
W/ WITH
SCH
SOCKET HEAD
WSHR WASHER
SCOPE OSCILLOSCOPE XFMR TRANSFORMER
SCR SCREW XSTR TRANSISTOR
