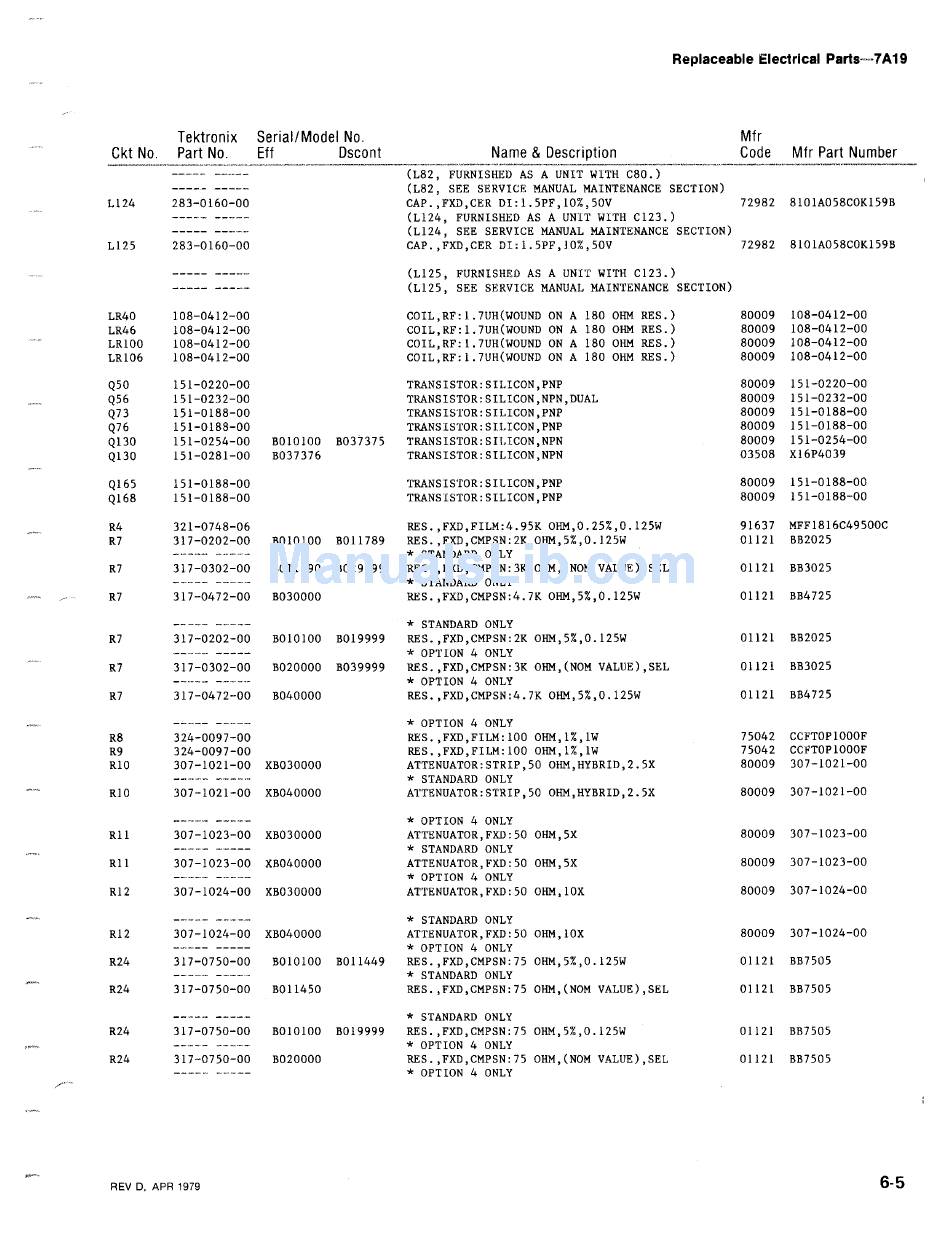

Tektronix 7A19 Instruction Manual page 29

Replaceable Electrical Parts---7A19
REV D, APR 1979
6-5
LR40 108-0412-00 COIL,RF :1 .7UH(WOUND ON A 180 OHM RES .) 80009
108-0412-00
LR46 108-0412-00
COIL,RF :1 .7UH(WOUND ON A 180 OHM RES .) 80009 108-0412-00
LR100 108-0412-00
COIL,RF :1 .7UH(WOUND ON A 180 OHM RES .) 80009 108-0412-00
LR106 108-0412-00 COIL,RF :1 .7UH(WOUND ON A 180 OHM RES .) 80009 108-0412-00
Q50 151-0220-00
TRANSISTOR :SILICON,PNP 80009 151-0220-00
Q56 151-0232-00
TRANSISTOR :SILICON,NPN,DUAL 80009 151-0232-00
Q73
151-0188-00 TRANSISTOR :SILICON,PNP 80009 151-0188-00
Q76 151-0188-00 TRANSISTOR :SILICON,PNP
80009 151-0188-00
Q130
151-0254-00 B010100 B037375 TRANSISTOR :SILICON,NPN 80009
151-0254-00
Q130
151-0281-00 B037376 TRANSISTOR :SILICON,NPN
03508 X16P4039
Q165 151-0188-00
TRANSISTOR :SILICON,PNP 80009 151-0188-00
Q168 151-0188-00 TRANSISTOR :SILICON,PNP
80009 151-0188-00
R4 321-0748-06
RES .,FXD,FILM :4 .95K OHM,0 .257,0 .125W 91637 MFF1816C495000
R7 317-0202-00 BO10100 B011789
RES .,FXD,CMPSN :2K OHM,5%,0 .125W 01121 BB2025
° _----- - °° - ° * STANDARD ONLY
R7 317-0302-00 B011790 B029999 RES .,FXD,CMPSN :3K OHM,(NOM VALUE),SEL 01121 BB3025
------- ------ * STANDARD ONLY
R7 317-0472-00 B030000 RES .,FXD,CMPSN :4 .7K OHM,5%,0 .125W 01121 BB4725
----- --- --- * STANDARD ONLY
R7 317-0202-00 BO10100 B019999
RES .,FXD,CMPSN :2K OHM,5%,0 .125W 01121 BB2025
------- ----- * OPTION 4 ONLY
R7 317-0302-00 B020000 B039999
RES .,FXD,CMPSN :3K OHM,(NOM VALUE),SEL 01121 BB3025
__---- ___ ._-
* OPTION 4 ONLY
R7 317-0472-00 B040000
RES .,FXD,CMPSN:4 .7K OHM,5%,0 .125W 01121 BB4725
* OPTION 4 ONLY
R8 324-0097-00 RES .,FXD,FILM :100 OHM,17,1W
75042 CCFTOP1000F
R9 324-0097-00
RES .,FXD,FILM :100 OHM,17,1W 75042
CCFTOPl000F
RIO
307-1021-00 XB030000
ATTENUATOR :STRIP,50 OHM,HYBRID,2 .5X 80009 307-1021-00
-°r---° --°---- * STANDARD ONLY
R10 307-1021-00 XB040000 ATTENUATOR :STRIP,50 OHM,HYBRID,2 .5X 80009
307-1021-00
* OPTION 4 ONLY
R11 307-1023-00 XB030000 ATTENUATOR,FXD :50 OHM,5X 80009
307-1023-00
----- ------
* STANDARD ONLY
R11 307-1023-00 XB040000 ATTENUATOR,FXD :50 OHM,5X 80009
307-1023-00
* OPTION 4 ONLY
R12 307-1024-00 XB030000 ATTENUATOR,FXD :50 OHM,10X 80009
307-1024-00
* STANDARD ONLY
R12 307-1024-00 XB040000 ATTENUATOR,FXD :50 OHM,IOX
80009 307-1024-00
_..--- _____
* OPTION 4 ONLY
R24 317-0750-00 B010100 B011449 RES .,FXD,CMPSN :75 OHM,5%,0 .125W 01121 BB7505
___-- ----
* STANDARD ONLY
R24 317-0750-00 B011450 RES .,FXD,CMPSN :75 OHM,(NOM VALUE),SEL
01121 BB7505
-----° -°-°-- * STANDARD ONLY
R24 317-0750-00 B010100 B019999 RES .,FXD,CMPSN :75 OHM,5%,0 .125W 01121 BB7505
------ ------- * OPTION 4 ONLY
R24 317-0750-00 B020000 RES .,FXD,CMPSN :75 OHM,(NOM VALUE),SEL 01121 BB7505
* OPTION 4 ONLY
Ckt No .
Tektronix Serial/Model No .
Part No . Eff Dscon t Name & Description
Mfr
Code Mfr Part Number
----- ------
(1,82, FURNISHED AS A UNIT WITH C80 .)
----- __-_-
(1,82, SEE SERVICE MANUAL MAINTENANCE SECTION)
1,124 283-0160-00 CAP.,FXD,CER DI :1 .5PF,10%,50V 72982 8101A058COK159B
_____ _____
(1,124, FURNISHED AS A UNIT WITH C123 .)
----- ----- (1,124, SEE SERVICE MANUAL MAINTENANCE SECTION)
1,125 283-0160-00
CAP .,FXD,CER DI :1 .5PF,10%,50V 72982 81OIA058COK159B
(1,125, FURNISHED AS A UNIT WITH C123 .)
(1,125, SEE SERVICE MANUAL MAINTENANCE SECTION)
