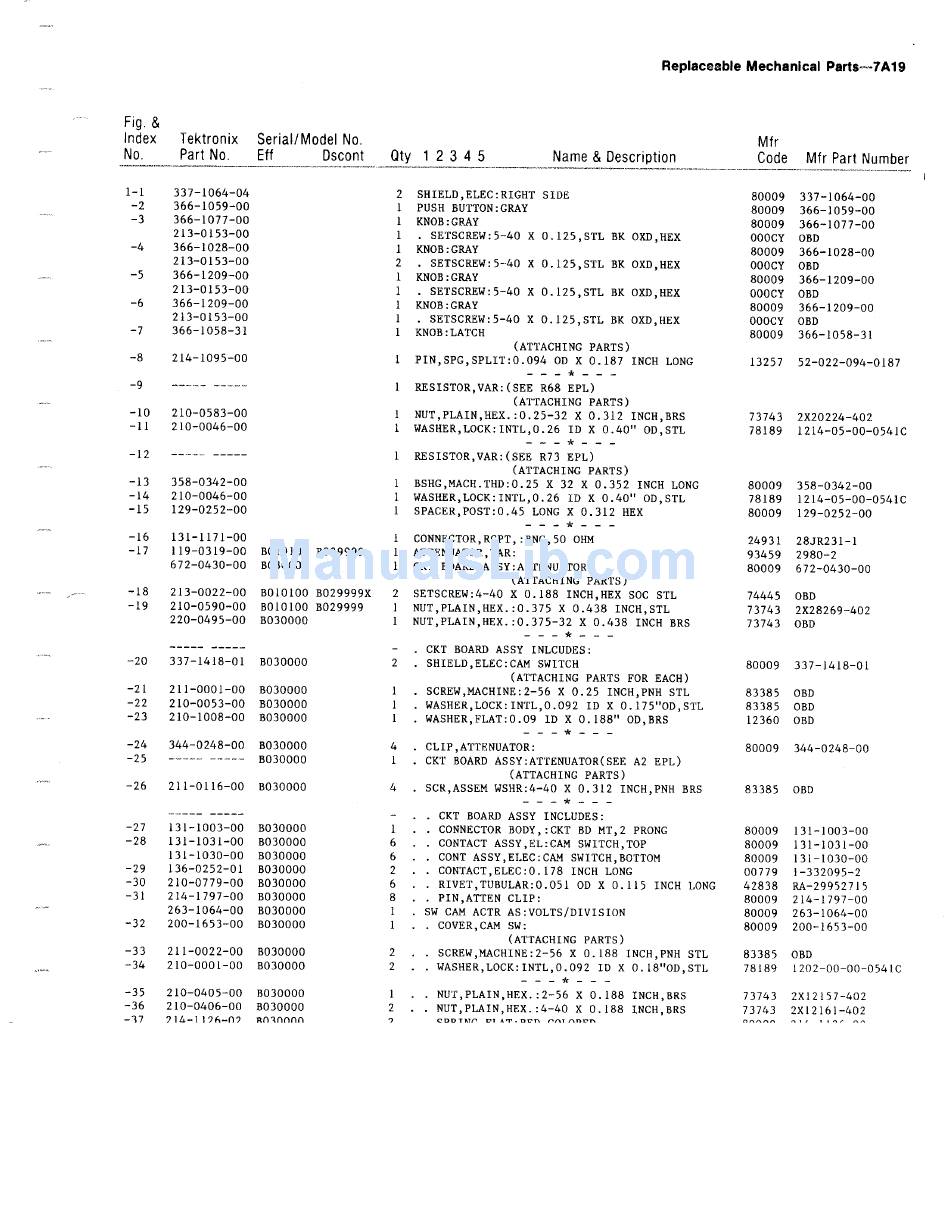

Tektronix 7A19 Instruction Manual page 41

Fig . &
Index Tektronix
Serial/Model No .
Mfr
No . Part No .
Eff Dscont oty 1 2 3 4 5
Replaceable Mechanical Parts-7A19
Name & Description
Code Mfr Part Number
REV D, APR 1979
8- 3
1-1 337-1064-04
2 SHIELD,ELEC :RIGHT SIDE
80009 337-1064-00
-2 366-1059-00
1 PUSH BUTTON :GRAY
80009
366-1059-00
-3
366-1077-00
1 KNOB :GRAY
80009
366-1077-00
213-0153-00
1 . SETSCREW :5-40 X 0 .125,STL BK OXD,HEX
OOOCY OBD
-4 366-1028-00
1 KNOB :GRAY
80009
366-1028-00
213-0153-00
2 . SETSCREW :5--40 X 0 .125,STL BK OXD,HEX
OOOCY OBD
-5 366-1209-00
1 KNOB :GRAY
80009 366-1209-00
213-0153-00
1 . SETSCREW :5-40 X 0 .125,STL BK OXD,HEX
OOOCY OBD
-6 366-1209-00
1 KNOB :GRAY
80009 366-1209-00
213-0153-00
1 . SETSCREW :5-40 X 0 .125,STL BK OXD,HEX
OOOCY OBD
-7 366-1058-31
1 KNOB :LATCH
80009 366-1058-31
(ATTACHING PARTS)
-8
214-1095-00 1
PIN,SPG,SPLIT :0 .094 OD X 0 .187 INCH LONG
13257
52-022-094-0187
_q
1 RESISTOR,VAR :(SEE R68 EPL)
(ATTACHING PARTS)
-10 210-0583-00
1 NUT,PLAIN,HEX . :0 .25-32 X 0 .312 INCH,BRS
73743
2X20224-402
-11
210-0046-00
1 WASHER,LOCK:INTL,0 .26 ID X 0 .40" OD,STL
78189
1214-05-00-0541C
-12
-°°°"' ----- 1 RESISTOR,VAR :(SEE R73 EPL)
(ATTACHING PARTS)
-13 358-0342-00
1 BSHG,MACH .THD :0 .25 X 32 X 0 .352 INCH LONG
80009 358-0342-00
-14
210-0046-00 1 WASHER,LOCK :INTL,0 .26 ID X 0 .40" OD,STL
78189
1214-05-00-0541C
-15 129-0252-00
1 SPACER,POST :0 .45 LONG X 0 .312 HEX
80009
129-0252-00
-16 131-1171-00 1
CONNECTOR,RCPT, :BNC,50 OHM
24931 28JR231-1
-17
119-0319-00 B010100 B029999
1 ATTENUATOR,VAR :
93459 2980-2
672-0430-00 B030000 1 CKT BOARD ASSY :ATTENUATOR
80009 672-0430-00
(ATTACHING PARTS)
-18 213-0022-00
BO10100 B029999X 2 SETSCREW :4-40 X 0 .188 INCH,HEX SOC STL
74445 OBD
-19 210-0590-00
B010100 B029999 1 NUT,PLAIN,HEX . :0 .375 X 0 .438 INCH,STL
73743 2X28269-402
220-0495-00 B030000
1 NUT,PLAIN,HEX . :0 .375-32 X 0 .438 INCH BRS
73743
OBD
----- ----- - . CKT BOARD ASSY INCLUDES :
-20
337-1418-01 B030000
2 . SHIELD,ELEC :CAM SWITCH
80009
337-1418-01
(ATTACHING PARTS FOR EACH)
-21
211-0001-00 B030000
1 . SCREW,MACHINE :2-56 X 0.25 INCH,PNH STL
83385 OBD
-22 210-0053-00 B030000
1 . WASHER,LOCK :INTL,0 .092 ID X 0 .175"OD,STL
83385 OBD
-23
210-1008-00 B030000 1 . WASHER,FLAT :0 .09 ID X 0 .188" OD,BRS
12360 OBD
-24
344-0248-00 B030000 4 . CLIP,ATTENUATOR :
80009 344-0248-00
-25
----- ------ B030000 1 . CKT BOARD ASSY :ATTENUATOR(SEE A2 EPL)
(ATTACHING PARTS)
-26 211-0116-00
B030000 4 . SCR,ASSEM WSHR :4-40 X 0 .312 INCH,PNH BRS
83385 OBD
----- ----- CKT BOARD ASSY INCLUDES :
-27
131-1003-00 B030000
1 . . CONNECTOR BODY, :CKT BD MT,2 PRONG
80009 131-1003-00
-28
131-1031-00 B030000 6 . . CONTACT ASSY,EL :CAM SWITCH,TOP
80009 131-1031-00
131-1030-00
B030000 6 . . CONT ASSY,ELEC :CAM SWITCH,BOTTOM
80009 131-1030-00
-29 136-0252-01
B030000 2 . . CONTACT,ELEC :0 .178 INCH LONG
00779 1-332095-2
-30 210-0779-00 B030000
6 . . RIVET,TUBULAR :0 .051 OD X 0 .115 INCH LONG
42838 RA-29952715
-31 214-1797-00 B030000
8 . . PIN,ATTEN CLIP :
80009 214-1797-00
263-1064-00 B030000 1 . SW CAM ACTR AS :VOLTS/DIVISION
80009 263-1064-00
-32
200-1653-00 B030000 1 . . COVER,CAM SW :
80009 200-1653-00
(ATTACHING PARTS)
-33 211-0022-00
B030000 2 . . SCREW,MACHINE :2-56 X 0 .188 INCH,PNH STL
83385 OBD
-34 210-0001-00
B030000 2 . . WASHER,LOCK :INTL,0 .092 ID X 0 .18"OD,STL
78189 1202-00-00-0541C
-35 210-0405-00 B030000
1 . . NUT,PLAIN,HEX . :2-56 X 0 .188 INCH,BRS
73743 2X12157-402
-36
210-0406-00 B030000 2 . . NUT,PLAIN,HEX . :4-40 X 0 .188 INCH,BRS
73743 2X12161-402
-37
214-1126-02 B030000
2 . . SPRING,FLAT :RED COLORED
80009 214-1126-02
-38 214-1127-00
B030300 1 . . ROLLER,DETENT :0 .125 DIA X 0 .125 INCH L
80009 214-1127-00
-39 401-0053-00
B030000 1 . . BEARING,CAM SW :FRONT,W/0 .375-32 EXT THD
80009 401-0053-00
(ATTACHING PARTS)
-40 354-0219-00
B030000 1 . . RING,RETAINING :FOR 0 .25 INCH SHAFT
79136 5103-25-MD-R
