Summary of Contents for AUDAC VEXO 8

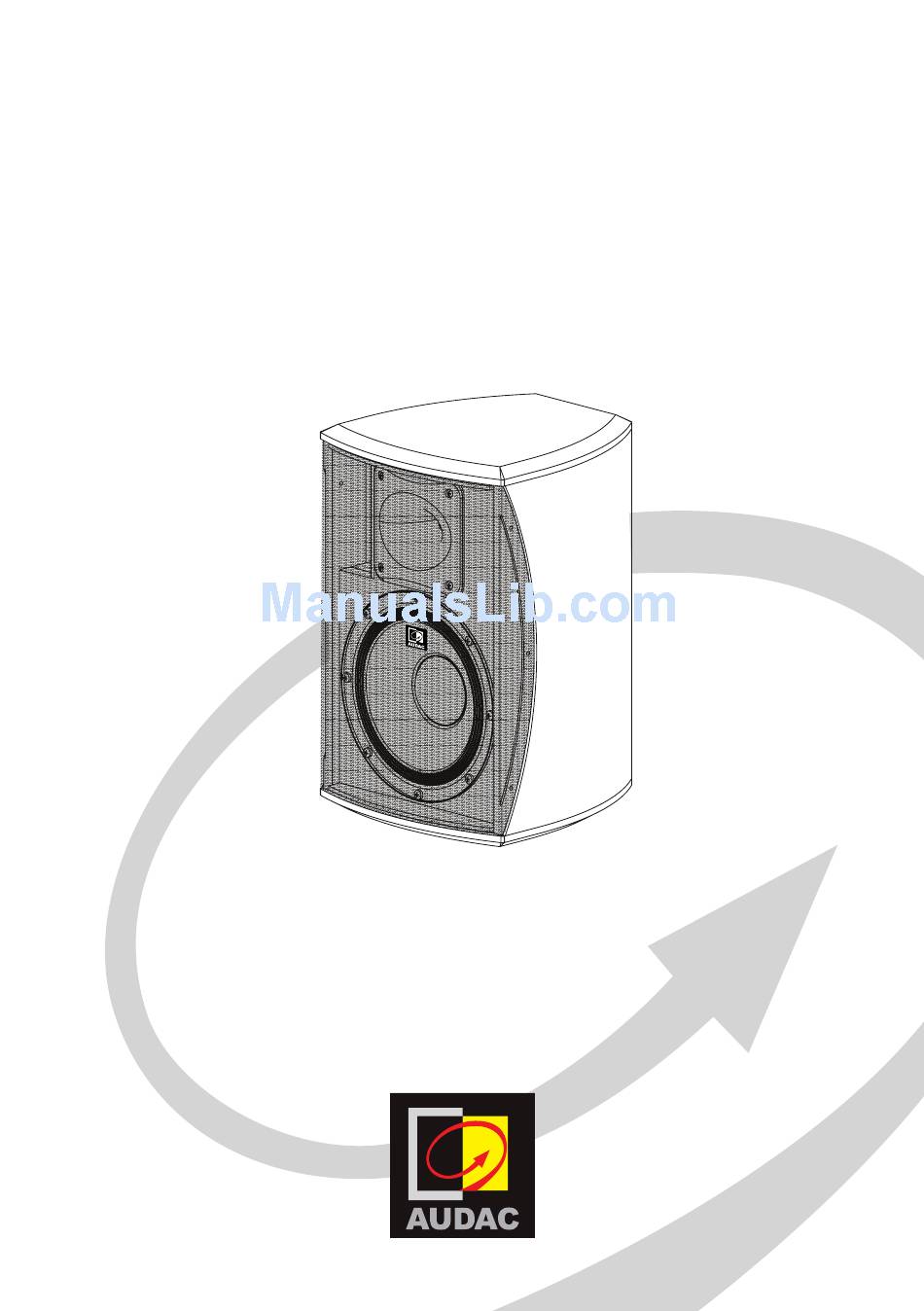

- Page 1 VEXO 8 User & Installation Manual www.audac.eu...

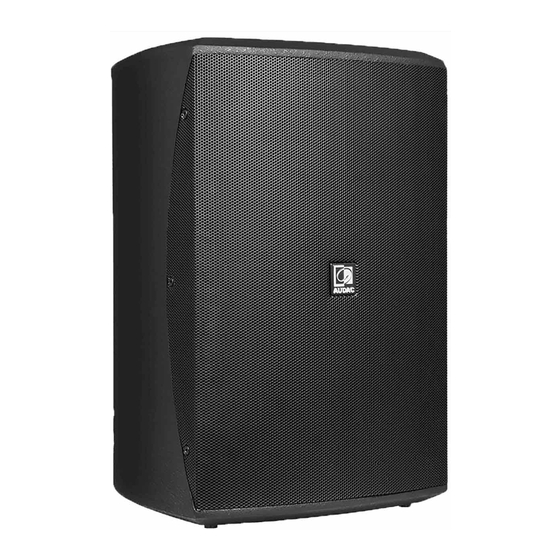

- Page 3 Introduction Compact high power loudspeaker The VEXO8 is a high-output loudspeaker cabinet, featuring an 8” high efficiency mid/ low range driver and 1” compression driver fitted with a 100° x 80° coverage horn, providing a powerful and detailed sound in a compact cabinet. The exceptional accuracy and clarity coming from this compact cabinet is recommended to be extended with a complementary bass cabinet adding the punchy &...
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...
- Page 5 CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
- Page 6 Installing the VEXO Revolving mounting bracket Every VEXO speaker is standard delivered with a two-way revolving bracket, making it possible to install the speaker at each location and focusing it into the desired direction. The loudspeaker can be installed in both horizontal and vertical way using this mounting bracket.
- Page 7 Rotatable logo Depending on the mounting direction of the loudspeaker (either horzontally or vertically), the logo on the front grill of the loudspeaker that is held in place by a spring loaded mechanism can be rotated into the direction the speaker is mounted. By placing a flat object between the logo and the recessed surface in the grill and the logo, the logo will move forward because of the spring loaded mechanism and can be rotated into the right position.
-
Page 8: Additional Information
Additional Information Technical specifications RMS Power 175 Watt Max. Power 350 Watt Nominal impedance 8 Ohm Sensitivity 1W / 1m 92 dB Sound pressure Max W / 1m 115 dB Frequency response -3 dB 65 Hz - 20 kHz Frequency range -10 dB 55 Hz - 20 kHz Cross-over frequency 1.25 kHz...
