- Page 1 User manual VEXO1xx audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. VEXO1xx - User manual...

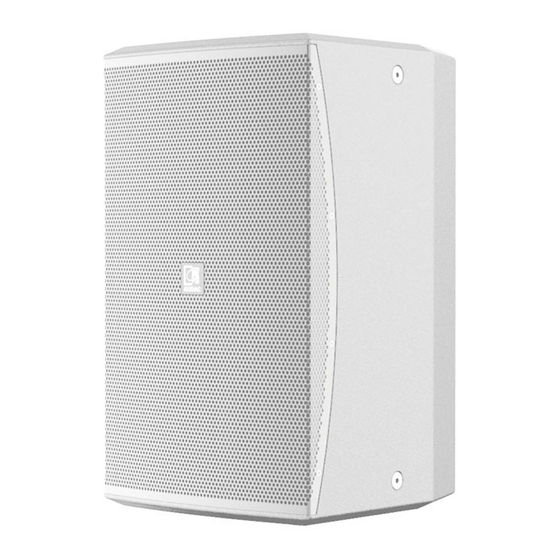

- Page 3 Introduction High performance loudspeaker The VEXO1xx is a high-output loudspeaker cabinet, providing a powerful and detailed sound in a compact cabinet. Their elegant enclosure allows them to be used in modern & trendy installation applications such as bars and nightclubs, while their functional features make them perfect for use in compact mobile systems.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET.
- Page 5 CAUTION - SERVICING This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) EC DECLARATION OF CONFORMITY This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC2) &...
- Page 6 Chapter 1 Overview and connecting VEXO1xx Impedance: 8 Ohm RMS power: 400 Watt Peak power: 800 Watt Full range signal input (+1/-1) Signal link-through (+1/-1) (+2/-2) 1) Integrated carry handle 3) Integrated 35 mm pole adapter: The integrated handle allows easy movement and handling The pole adapter makes it possible to install the VEXO of the speaker.
- Page 7 Technical specifications VEXO110 VEXO112 VEXO115 Peak Power handling 1200 Watt 1600 Watt 2000 Watt Program Power handling 600 Watt 800 Watt 1000 Watt RMS/AES power handling 300 Watt 400 Watt 500 Watt Nominal impedance 8 Ohm 8 Ohm 8 Ohm Sensitivity 1W/1m 96 dB 99 dB...
- Page 8 Discover more on audac.eu...
