- Page 1 User manual VEXO208 audac.eu...
-
Page 2: Table Of Contents
This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. REV-1.3... -
Page 3: Introduction

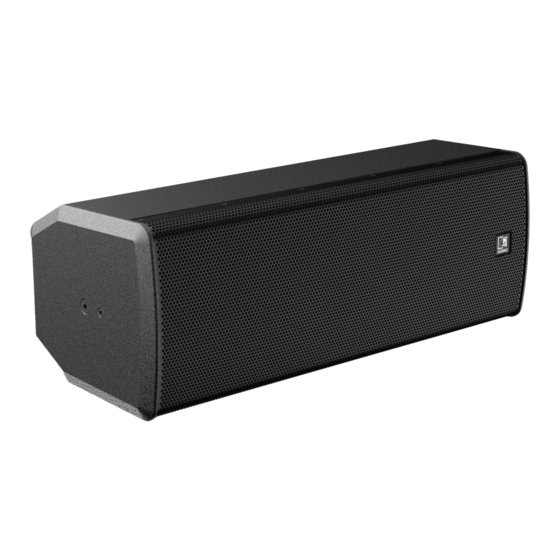

Introduction High performance loudspeaker The VEXO208 is a high-output 3-way loudspeaker, providing a powerful and detailed signature sound of the VEXO family with a dual 8-inch driver in a compact cabinet. The combination of the elegant enclosure and high performance allows them to be used in installation applications that require both a modern look and a unique audio experience from nightclubs to sports facilities. -
Page 4: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. - Page 5 CAUTION - SERVICING This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) EC DECLARATION OF CONFORMITY This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC2) &...
-
Page 6: Overview And Connecting Vexo2Xx
Chapter 1 Overview and connecting VEXO208 1) Rigging points The VEXO208 is equipped with two M10 and M6 rigging points on the sides for the included U bracket. At the back of the unit, you will find a M8 mounting pattern. This universal pattern serves as a mounting point for various mounting arrangements. -
Page 7: Installing Vexo2Xx
Chapter 2 Installing VEXO208 The VEXO208 comes with a U bracket for horizontal and vertical installation. 1) Install the U bracket The VEXO208 is equipped with two M10 and M6 rigging points on the sides for the included U bracket. The first step is mounting the supplied U bracket to the desired location on the wall. - Page 8 3) Placing the VEXO 208 into the U bracket The U-bracket has two slides and an angle adjustment point on the sides. Carefully place the VEXO208 into the U-bracket with the M10 fixing screws aligned with the slides. 4) Aiming the VEXO208 The last step in the installation procedure of the VEXO208 is pointing it at the aiming angle (-90°...
-
Page 9: Technical Specifications
Technical specifications VEXO208 Peak Power handling 1600 Watt Program Power handling 800 Watt RMS/AES power handling 400 Watt Nominal impedance 4 Ohm Sensitivity 1W/1m 94 dB Sound pressure Max W/1m 121 dB Frequency response - 3dB 62Hz - 20 kHz Drivers Coaxilal compression driver with 1.4”... - Page 10 Notes VEXO208 - User manual...
- Page 11 Notes VEXO208 - User manual...
- Page 12 Discover more on audac.eu...
