Summary of Contents for Audiovox FR-531-2

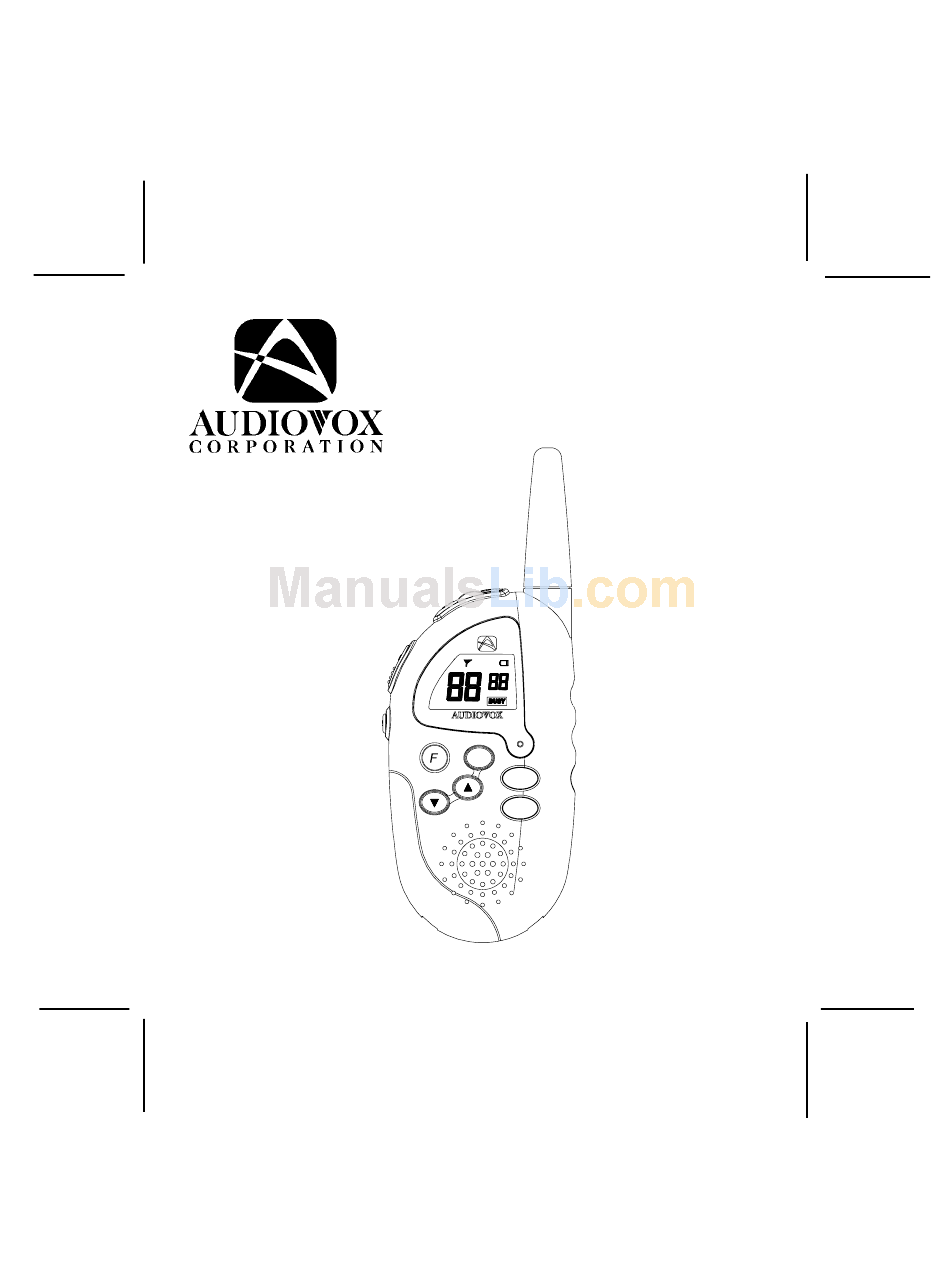

- Page 1 Released on 12-18-01 Revision A: 8-13-02--Functional operation changed to reflect new manufacturer’s specifications. Owner’s Manual Model FR-531-2 Two Way Family Radio SCAN Customer Service 1-800-290-6650 128-6255A 1 of 16...
- Page 2 CONGRATULATIONS ON YOUR SELECTION OF THE FR-531-2 (FAMILY RADIO) It is one of the most sophisticated and reliable two way family radios available. BEFORE OPERATING YOUR FR-531-2 (FAMILY RADIO) READ THIS MANUAL CAREFULLY 128-6255A 2 of 16...
- Page 3 FEATURES Your FR-531-2 Family Radio is a portable, easy to use, two-way radio that you can carry almost anywhere. It is skillfully constructed to give you reliable communica- tions for many different applications. The FR-531-2 is ideal for use around the house, in your boat, on hunting and camping trips, on the ski slopes or at the mall.
-
Page 4: Fcc Warning
If you wear the handset on your body while using the headset accessory, use only the Audiovox supplied belt clip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. -
Page 5: Function And Location Of The Controls
FUNCTION AND LOCATION OF THE CONTROLS (REF) SCAN 128-6255A 5 of 16... - Page 6 13. VOX Button: Press this button to activate the Voice-Operated Transmis sion function. 14. Fixed Antenna 15. Ear/Microphone (EAR/MIC) Jack: For use with an optional Audiovox approved Ear/Microphone set which facilitates hands-free VOX operation. 16. Charger (CHG) Jack: Not Used.
-
Page 7: Lcd Display And Operation
LCD DISPLAY AND OPERATION The FR-531-2 is equipped with an LCD display to indicate its settings and functions. Transmission Indicator Low Battery Alert FRS Channel Indicator (1–14). time power is turned on during a power-on self- test of the unit. appears each time power is turned on during a power-on self-test of the unit to check integrity of LCD. -
Page 8: Battery Installation
CAUTION: Incorrect battery installation can damage the unit. The EAR MIC jack is intended for use with Audiovox approved ear mi- crophone/headset, while the CHG jack is not used. CLIP EMBOSSED... - Page 9 USING YOUR FR-531-2 Turning the Transceiver On and Off Pressing the power button (1) for 2 seconds will activate the unit. The speaker will sound a beep tone to confirm the transceiver’s activation. In addition, the transceiver will perform a 1-second power-on self-test, whereby the LCD dis- play will show all functional items, including a test of the 2-digit channel display ( ).
- Page 10 FUNCTIONS Channel Selection Press the function button once or until the two digit channel display flashes. Press Up or Down buttons (10, 9) to select desired channel (1–14). PTT button to confirm and fix channel selection. Roger Beep Tone The Roger Beep is a beep tone sequence which is automatically transmitted whenever the PTT button is released.
- Page 11 Channel Scanning Pressing the SCAN button initiates and automatic scan of the FRS channels (1-14) in the upward or downward direction. Press the SCAN button; channel scan will commence. To scan in the upward direction, press the Up Channel/Volume button; to scan in the downward direction, press the Down Channel/Volume button.
- Page 12 To Transmit 1. Set the desired primary channel. 2. Press and hold the PTT (Push-to-Talk) button while speaking slowly and clearly in a normal voice, approximately 2 to 3 inches from the microphone. 3. The transmit icon will illuminate while transmitting. 4.
- Page 13 WARNING Remove the batteries from the transceiver if it is not expected to be used for long periods. This will eliminate the possibility of battery acid leaking from the batteries and corroding the transceiver. Avoid exposing the unit to water or extremes of temperature. Do not use this device in or near a mining facility, which uses remotely trig- gered explosives or in areas labeled “Blasting Area”.
-
Page 14: Specifications
SPECIFICATIONS* Channels: Output Power: 500 mW ERP Battery Life Alkaline: Power Source: 6.0V DC These specifications are subject to change without notice. They represent typical values, individual units may vary. Channel Frequencies: Channel 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 30 - 35 Hours Channel 467.5625... -
Page 15: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY Applies to Audiovox Family Radio Service Products. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship... - Page 16 © 2002 Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, NY 11788 128-6255A 128-6255A 16 of 16...
