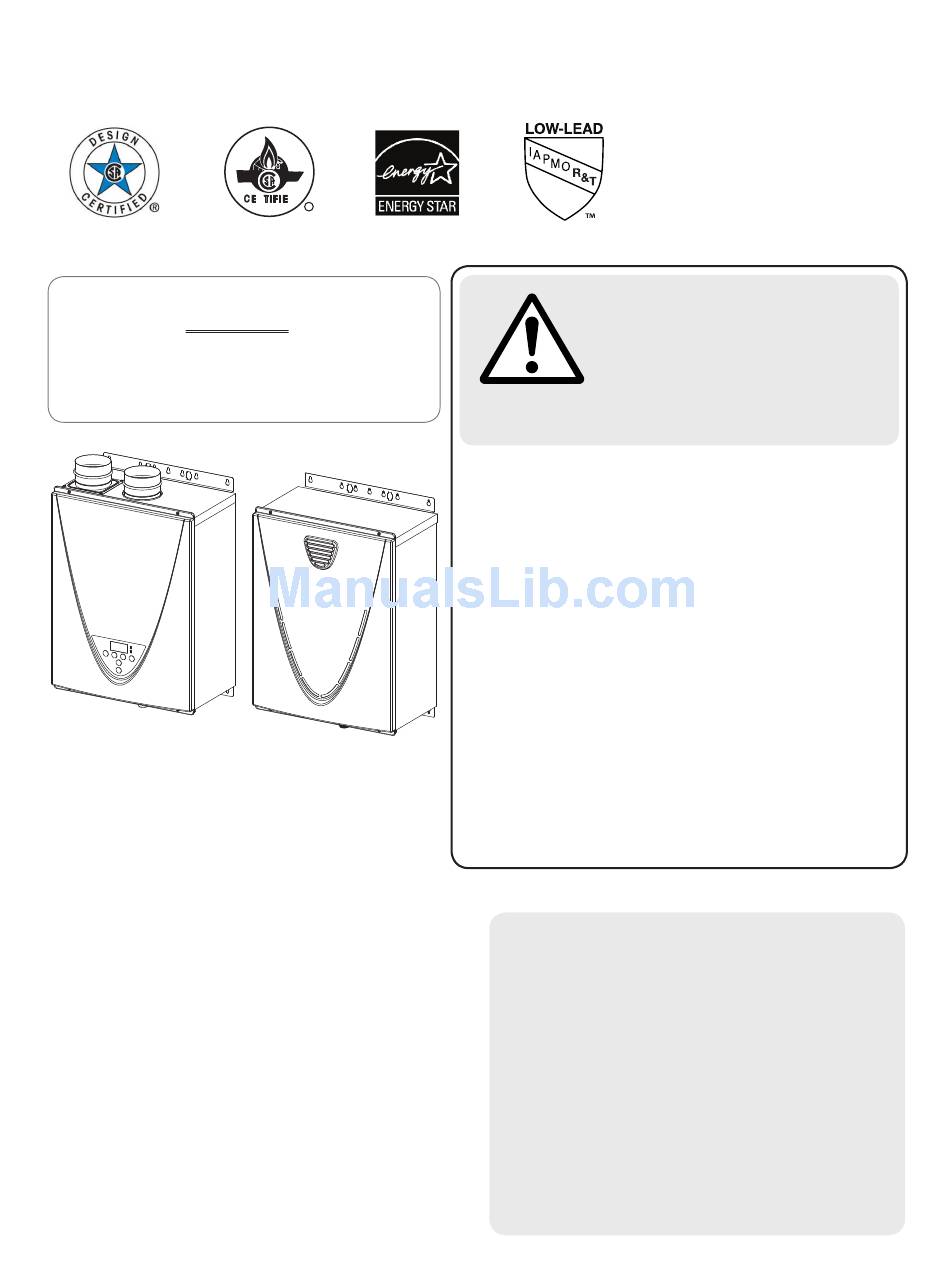

On-Demand Water Heater
Installation Manual and Owner's Guide
ANSI Z21.10.3 • CSA 4.3
Models
• 540P Indoor • 540P O utdoor
Gas Tankless Water Heater
Suitable for combination potable water heating
and space heating. Please refer to local codes for
space-heating compliance.
FEATURING
•
INTEGRATED RECIRCULATION PUMP
•
ENDLESS HOT WATER
•
ON-DEMAND USAGE
•
COMPACT, SPACE SAVING
•
ENERGY CONSERVATION
•
COMPUTERIZED SAFETY
•
NO PILOT LIGHT
•
Complies with SCAQMD Rule
1146.2 for natural gas NOx
emissions of 14 ng/J or 20 ppm.
•
EASY-LINK SYSTEM
Keep this manual near the water heater for future reference whenever maintenance, adjustment or service is required.
R
D
R
TM
If the information in these
instructions is not followed
exactly, a fire or explosion may
result causing property damage,
WARNING
personal injury or death.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch, do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
If you have any questions,
please call or write to
USA: 500 Tennessee Waltz Parkway
Ashland City, TN 37015
Toll Free: 1-877-737-2840
CANADA: 599 Hill Street West
Fergus, ON N1M 2X1
1-888-479-8324
