the registration process should be restarted. Use only a password of 8 digits or
characters. The camera does not work with longer or shorter password
Connect the camera with Wi-Fi:
(only available when using an internal Wi-Fi network connection)
When you open this menu all the Wi-Fi access points will appear on the screen.
Choose your own Wi-Fi network and log in with the correct password for the network.
Now change the camera from pairing mode to link mode using the switch located
on the back of the camera. Now you can use your own network to connect to the
camera. Make sure that no punctuation characters in the password of your Internet
router, the camera software can not handle this. If necessary, change the password of
the router
Camera settings:
(only available when using an internal Wi-Fi network connection)
The frame rate and resolution of the image can be adjusted in this menu.
The frame rate can be set to 15fps (15 frames per second) or 25fps (25 frames per
second). 25fps gives a smoother image but has a larger bandwidth.
The resolution of the image can be set as QVGA (320 x 240) or VGA (640 x 480).
VGA provides a picture with more pixels but has a greater bandwidth.
Notification settings:
In this menu you are able to set up the alert and notification messages. There are two
types of alarms that can be set up. The first is if the room temperature goes below or
above a certain level, and the second is if the sound indicator of the camera picks up
sound over a certain volume.

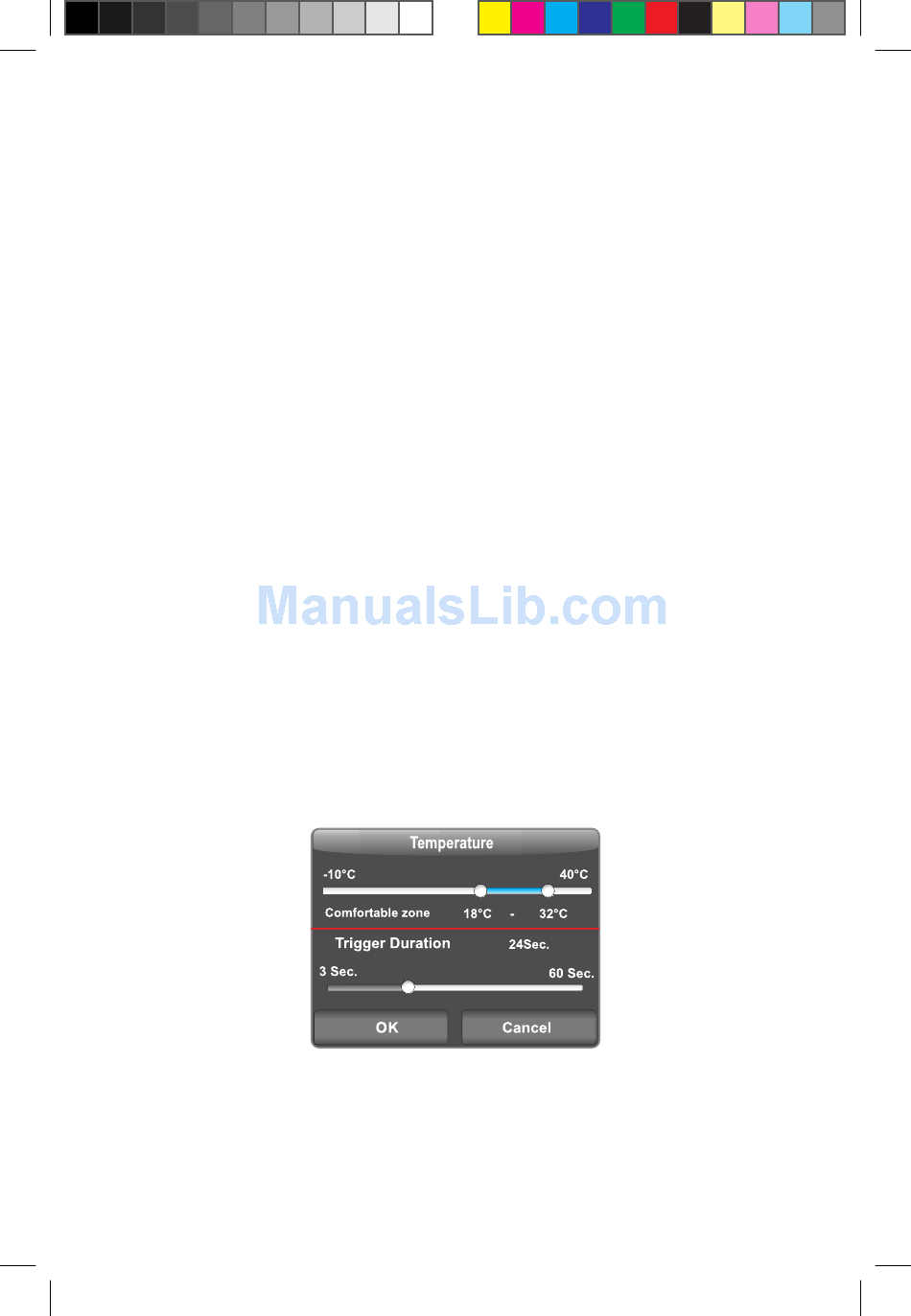

Temperature indicator:
The low and high temperature limits can be set separately from each other.
If the temperature goes outside of these limits then an alarm notification will be sent.
The option to send a notification needs to be enabled (see paragraph 2.2).
Using the trigger length you can set how often an alert message is sent (3-60sec.)
during the alarm period. If the trigger time is set to 29 sec. then an alarm notification
will be sent every 29 sec. during the alarm period.
