Summary of Contents for MasterCraft 058-813-2

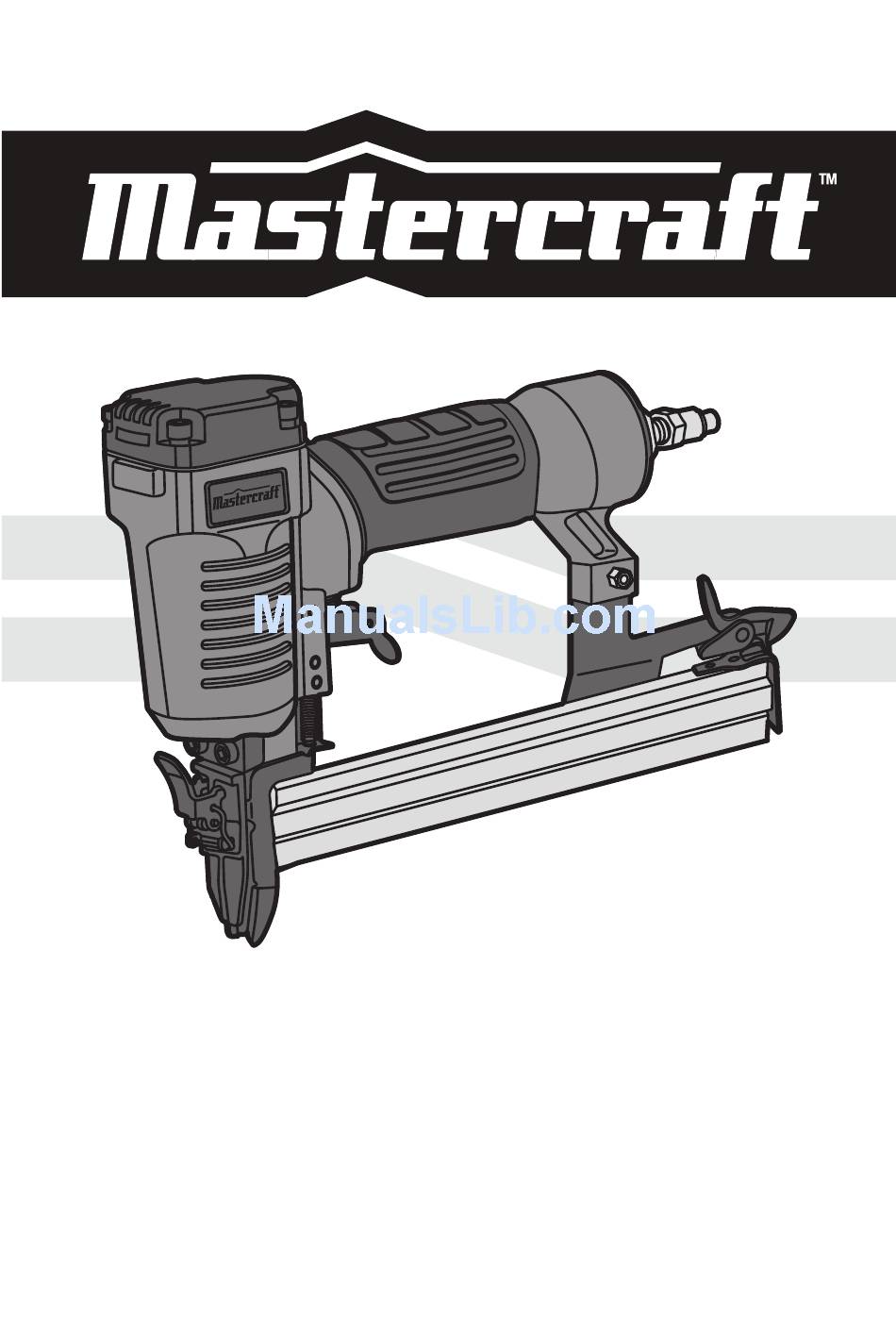

- Page 1 INSTRUCTION MANUAL AIR-POWERED STAPLER 058-8132-2...
- Page 2 QUICK START GUIDE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–9 KEY PARTS DIAGRAM IMPORTANT INFORMATION 11–13 TYPES OF FASTENERS OPERATING INSTRUCTIONS 15–19 MAINTENANCE 20–21 TROUBLESHOOTING 22–24 EXPLODED VIEW PARTS LIST 26–27 WARRANTY 28–29 AIR-POWERED STAPLER 058-8132-2...
- Page 4 Safety guidelines This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information. DANGER! Potential hazard that will result in serious injury or loss of life.
- Page 5 SAFETY GUIDELINES Note: Carefully read and understand all the instructions in this manual before using the tool. Ensure that the operator has read and understood these instructions. DANGER! Potential hazard that will result in serious injury or loss of life. •...
- Page 6 Risk for breathing: Never directly inhale the air produced by the compressor. • Risk of bursting: Do not adjust the pressure switch or safety valve for any • reason. They have been preset at the factory for this compressor’s maximum pressure.
- Page 7 WARNING! Potential hazard that could result in serious injury or loss of life. • Do not allow unskilled or untrained individuals to operate the Air-powered Stapler. • Do not use the Air-powered Stapler for any task other than that it is designed to perform.
- Page 8 CAUTION! Potential hazard that may result in moderate injury or damage to equipment. • Always ensure that the tool has stopped before connecting to the air supply. • Do not wear watches, rings, bracelets, or loose clothing when using any air tool.
- Page 9 CAUTION! Potential hazard that may result in moderate injury or damage to equipment. • Disconnect tool from the air supply and turn off the compressor before performing any maintenance, or changing accessories, when the tool is not in use, when it is being handed to another person, and when it is left unattended.
- Page 10 MC-8132-02 Description Description Firing head Air inlet Latch Magazine Rubber grip Trigger AIR-POWERED STAPLER 058-8132-2...
- Page 11 GUIDELINES FOR PROPER USE AND OPERATION ® Be sure to use a proper air compressor with Mastercraft air-powered tools. The compressor should be able to supply a minimal air delivery of 2.65 SCFM @ 90 PSI to ensure the compressor can run continuously with the Mastercraft Air-powered Stapler.
-
Page 12: Air System
Keep hands and other body parts away from the tool’s discharge and working areas when connecting the air supply. Failure to comply could lead to serious injury or loss of life. MC-8132-10 Description Description ® Mastercraft Air-powered Stapler Regulator (0 to 8.5 bar) Quick connector Filter Quick coupler Cut-off valve... - Page 13 • It is recommended that a filter-regulator-lubricator be used and be located as close to the tool as possible. • If a filter-regulator-lubricator is not installed, place up to 6 drops of compressor oil into the air inlet plug before each use. •...
- Page 14 ® This Mastercraft Air-powered Stapler drives 18-gauge 15.9 to 41 mm (5/8 to 1 5/8") staples. ACCEPTABLE STAPLES (15.9 to 41 mm) Length: 5/8–1 5/8 " 1/5’’ 1/5’’ 1 5/8” 5/8” MC-8132-12 WARNING! Potential hazard that could result in serious injury or loss of life.
-
Page 15: Loading Staples
Loading staples DANGER! Potential hazard that will result in serious injury or loss of life. • Disconnect the tool from the compressed air source before loading staples. • Do not point the tool towards the operator or other people while changing staples. - Page 16 3. Slide the pusher against the staples to close the magazine (1) until it comes fig C into contact with the staples and locks (fig C) into place MC-8132-05 4. Plug in compressor, turn it on, set the fig D pressure regulator to 90 psi, attach one end of the air hose to the compressor and the other end of the air hose (1) to...
-
Page 17: Firing Modes
Firing modes ® The Mastercraft Air-powered Stapler is equipped with a single sequential actuation mode. 1. Press the safety stand (1) against the fig E (fig E) workpiece (2) MC-8132-07 2. Pull the trigger (1) to drive the staple fig F... - Page 19 Clearing a jammed staple To clear a jammed staple • Disconnect the tool from the air supply line. • Remove the staples that are stored in the tool’s magazine. • Operate the latch and pull it back to open the magazine. •...
-
Page 20: Maintenance
Maintenance DANGER! Potential hazard that will result in serious injury or loss of life. • Disconnect the tool from the air compressor before performing maintenance/ service, adjusting, clearing jams, reloading, and when it is not in use. • Repairs must be performed by a qualified service technician only. Failure to comply will lead to serious injury or loss of life. - Page 21 • Air-operated tools must be inspected periodically and worn or broken parts must be replaced in order to keep tools operating safely and efficiently. • Inspect and replace worn or damaged O-rings, seals, etc. Tighten all screws and caps frequently in order to prevent personal injury. •...
-
Page 22: Troubleshooting
Troubleshooting The following chart lists common issues and solutions. Please read it carefully and follow all instructions closely. DANGER! Potential hazard that will result in serious injury or loss of life. • If any of the following symptoms appear while the tool is in use, turn it off and disconnect it from the air supply immediately. - Page 23 PROBLEM POSSIBLE CAUSES SOLUTIONS 1. The air supply is inadequate. 1. Verify that the air supply is adequate. 2. Lubrication is inadequate. 2. Pour up to 6 drops of oil into the air inlet. The tool does not 3. The O-rings or seals are worn or 3.
- Page 24 AIR-POWERED STAPLER 058-8132-2...
- Page 25 47 48 MC-8132-09 AIR-POWERED STAPLER 058-8132-2...
- Page 26 Description Qty. Description Qty. Bolt M5 X 20 Spring Spring washer Trigger pin Cylinder cover Trigger Seal washer Pin 2.5 X 16 Compressed spring Trigger plate O-ring 13.7 X 2.4 WCE guide Head valve Spring Washer Safety yoke O-ring 24.8 X 3.5 Pin 3 X 16 O-ring 31.2 X 2.5 Quick release handle...
- Page 27 Description Qty. Description Qty. Rubber handle case Spring O-ring 36.3 X 3.55 Fixed lever End cap Snap washer Air plug case Nut M4 Air inlet plug Bolt M4 X 20 If any parts are missing or damaged, or if you have any questions, please call 1-800-689-9928. AIR-POWERED STAPLER 058-8132-2...
- Page 28 ® Mastercraft limited warranty ® This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following component: Component A: Accessories, which are guaranteed for a period of 1-year from the date of original retail purchase against defects in workmanship and materials.
-
Page 29: Additional Limitations
g. This warranty will not apply to any product or part thereof if any part from another manufacturer is installed therein or any repairs or alterations have been made or attempted by unauthorized persons. h. This warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint chips, or to any corrosion or discoloring by heat, or abrasives and chemical cleaners.
