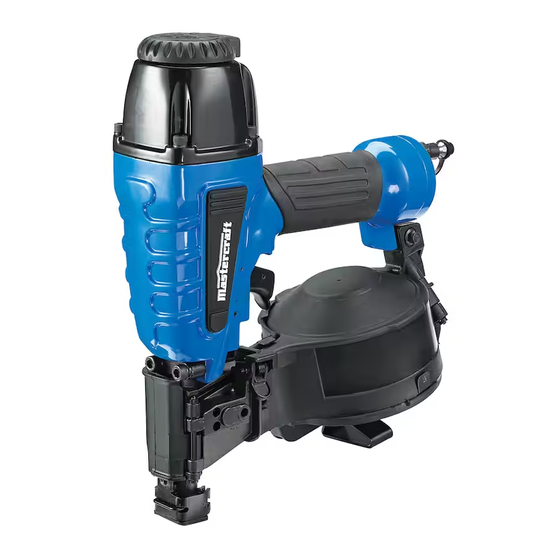

- Page 1 INSTRUCTION MANUAL AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
-
Page 2: Table Of Contents
QUICK START GUIDE TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–9 KEY PARTS DIAGRAM IMPORTANT INFORMATION 11–13 TYPES OF NAILS OPERATING INSTRUCTIONS 15–18 MAINTENANCE 19–20 TROUBLESHOOTING 21–23 EXPLODED VIEW PARTS LIST 25–26 WARRANTY 27–28 AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0... -
Page 4: Safety Guidelines
PERSONAL SAFETY These precautions are intended for the personal safety of the user and others working with the user. Please take time to read and understand them. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0... -
Page 5: Safety Guidelines
Disconnect the compressor from the power source before servicing. Compressor must be grounded. Do not use grounding adaptors. Risk of personal injury: Do not direct compressed air from the air hose • toward the user or other personnel. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0... - Page 6 Drain water from tank after each use. Do not weld or repair tank. Relieve all pressure in the hose before removing or attaching accessories. MC-OM-22 AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 7 Do not operate the compressor if it is not in a stable position. • Do not operate the compressor on a rooftop or an elevated position that could allow the unit to fall or be tipped over. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 8 Handling and storage of oil: Use with adequate ventilation. Avoid contact of oil with eyes, skin, and clothing. Avoid breathing spray or mist. Store in a tightly closed container in a cool, dry, well-ventilated area free from incompatible substances. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 9 Note: Recycle unwanted materials rather than disposing of them as waste. Sort the tools, hoses, and package into specific categories and take to the local recycling centre or dispose them of in an environmentally safe way. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 10 MC-588191-12 Description Description Air inlet plug Safety tip Trigger Safety stand Magazine Air deflector Magazine latch AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 11 GUIDELINES FOR PROPER USE AND OPERATION ® Be sure to use a proper air compressor with Mastercraft air-powered tools. The compressor should be able to supply a minimal air delivery of 4.7 SCFM @ 90 PSI to ensure the compressor can run ®...
- Page 12 Failure to comply could lead to serious injury or loss of life. MC-588191-14 Description Description ® Mastercraft Air-powered Compact Coil Regulator (0 to 8.5 bar) Roofing Nailer Quick connector Filter Quick coupler Cut-off valve Air hose Air compressor Lubricator AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 13 Do not attempt to clear a jammed nail when the air hose is connected. Do not drive a nail on top of an existing nail. Failure to comply could result in • serious injury or loss of life. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
-
Page 14: Types Of Nails
This Mastercraft® Compact Coil Roofing Nailer drives full-headed or round-headed 3/4 to 1 3/4" (19 to 45 mm) long nails. ACCEPTABLE NAILS (19 to 45 mm) Length: 3/4 - 1 3/4 Angle: 15° " 1 3/4” 3/4” MC-588191-16 MC-588191-15 WARNING! Potential hazard that could result in serious injury or loss of life. - Page 15 2. Grasp the nailer firmly with one hand and use the other hand to open the fig B firing chamber by operating the magazine latch (1) with the thumb and (fig B) index finger MC-588191-04 AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 16 90 psi, attach fig F one end of the air hose to the compressor and the other end of the air (fig F) hose (1) to the tool (2) page 11 (wood density chart) MC-588191-08 AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 17 Load the correct type of nails only. Do not load different sized nails into the magazine, as doing so may cause nails to jam. Failure to comply could lead to serious injury or loss of life. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 19 MC-588179-17 • Air-operated tools must be inspected periodically and worn or broken parts must be replaced in order to keep tools operating safely and efficiently. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 20 Keep the magazine and the firing area of the tool clean and free of any dirt or abrasive particles. Note: When temperatures are below freezing, keep the tools warm using any safe, convenient method. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
-
Page 21: Troubleshooting
Have the tool serviced by a qualified service cylinder cover. technician. 1. The bumper is worn. 1. Replace the bumper. The nails are being driven too deep. 2. The air pressure is too high. 2. Adjust the air pressure. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0... - Page 22 3. Open and clean the magazine. Air exhaust is being The direction of the air deflector directed towards the Direct the air deflector away from the operator. requires adjustment. operator. Note: For further repair information, please call 1-800-689-9928. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 23 AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
- Page 25 O-ring 55.4 X 3.55 O-ring 9 X 1.8 Gun body O-ring 2.5 X 1.5 Bumper Spring O-ring 12.8 X 1.8 Switch lever O-ring 2.8 X 1.8 O-ring 18 X 2.65 Nail head Switch seat Magnet assembly Spring AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
-
Page 27: Operating Instructions
This warranty will not apply where damage is caused by repairs made or attempted by others (i.e., persons not authorized by the manufacturer). This warranty will not apply to any product that was sold to the original purchaser as a reconditioned or refurbished product (unless otherwise specified in writing). AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0... -
Page 28: Warranty
This warranty gives you specific legal rights, and you may have other rights, which may vary from province to province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim, or exclude any statutory warranties set forth in any applicable provincial or federal legislation. AIR-POWERED COMPACT COIL ROOFING NAILER 058-8191-0...
