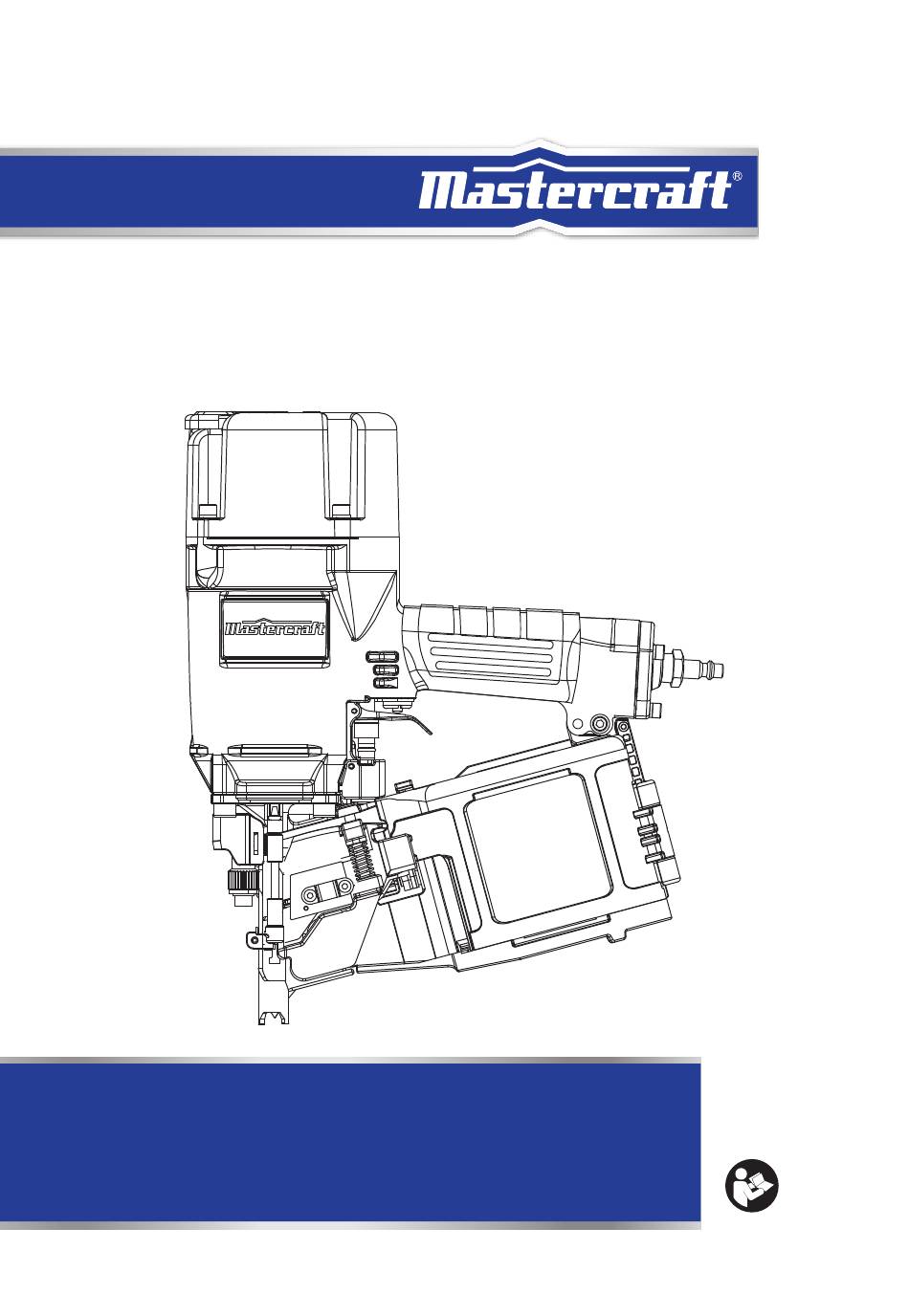

- Page 1 058-9847-6 AIR-POWERED COIL FRAMING NAILER IMPORTANT: OPERATING For your own safety, read and follow all of the Safety Guidelines MANUAL and Operating Instructions before operating this nailer. Keep this manual for future reference.
- Page 2 TABLE OF CONTENTS TECHNICAL SPECIFICATIONS SAFETY GUIDELINES KEY PARTS DIAGRAM TECHNICAL INFORMATION TYPES OF NAILS OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING EXPLODED VIEW PARTS LIST WARRANTY...
- Page 3 058-9847-6 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS SAFETY GUIDELINES This manual contains information that relates to PROTECTING PERSONAL SAFETY and LOADING CAPACITY 1 coil (225 – 300 nails) PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and 15°...
- Page 4 058-9847-6 | contact us 1-800-689-9928 SAFETY GUIDELINES Risk of burns: The pump and the manifold generate high temperatures. In order to avoid burns or other injuries, do not touch the pump, the manifold, Do not use oxygen or any other combustible or bottled or the transfer tube while the compressor is running.
- Page 5 058-9847-6 | contact us 1-800-689-9928 CAUTION! Potential hazard that may result in injury or damage to equipment. Exhaust Cover Knob Disconnect the tool from the air supply and turn off the Piston Nail Holder compressor before performing any maintenance,...
- Page 6 058-9809-8 | contact us 1-800-689-9928 Compatible compressors GUIDELINES FOR PROPER USE AND OPERATION Be sure to use a proper air compressor with Mastercraft ® air-powered tools. The compressor should be able to supply a minimal air delivery of 6.3 CFM @ 90 PSI to ensure the compressor can run continuously with the Mastercraft Air-powered Coil Framing Nailer.
- Page 7 058-9847-6 | contact us 1-800-689-9928 model no. 058-9809-8 | contact us 1-800-689-9928 • It is recommended that a filter-regulator-lubricator be used and be located as close to the tool This Mastercraft ® Air-powered Coil Framing Nailer drives 2 to 3 1/4” wire weld collated as possible.
- Page 8 058-9847-6 | contact us 1-800-689-9928 model no. 058-9338 | contact us 1-800-689-9928 Loading nails Fig. A Fig. D 4.① Uncoil enough nails to reach the driving hole. Driving hole Guide slot First nail ② Insert the first nail into the driving hole and the second Nail guide 1.
- Page 9 058-9847-6 | contact us 1-800-689-9928 model no. 058-9809-8 | contact us 1-800-689-9928 Testing the nailer Fig. L Before actually beginning the nailing work, test the nailer by using the check list below. Conduct the (4) Separate the push lever from the wood.
- Page 10 058-9847-6 | contact us 1-800-689-9928 model no. 058-9809-8 | contact us 1-800-689-9928 Firing modes Fig. K The Mastercraft Air-powered Coil Framing Nailer has two firing modes: sequential fire for single ® firing, or bump fire for repetitive, fast firing of nails.
- Page 11 058-9847-6 | contact us 1-800-689-9928 model no. 058-9809-8 | contact us 1-800-689-9928 Clearing a jammed nail Adjusting the nailing depth To clear a jammed nail To assure that each nail penetrates to the same depth, be sure that: ①...
- Page 12 058-9847-6 | contact us 1-800-689-9928 model no. 058-9809-8 | contact us 1-800-689-9928 INSPECTION Maintenance 1. Inspect the push lever and feeders. Disconnect air hose. TOOLS OR MAXIMUM SERVICE INTERVAL Clean the knob sliding part and lubricate it with pnenumatic tool lubricant.
- Page 13 058-9809-8 | contact us 1-800-689-9928 model no. 058-9847-6 | contact us 1-800-689-9928 PROBLEM POSSIBLE CAUSES SOLUTIONS The following chart lists common issues and solutions. Please read it carefully and The tool does not The air supply is inadequate.
- Page 14 058-9847-6 | contact us 1-800-689-9928 Bolt M6 x 45 Rubber grip Spring washer 6 Gasket (E) Top cover Bolt M6 x 30 Spring washer 5 Bolt M5 x 5 Bolt M5 x 20 Exhaust cover 3/8" Air plug...
- Page 15 058-9847-6 | contact us 1-800-689-9928 model no. 058-9809-8 | contact us 1-800-689-9928 3-Year Limited Warranty This warranty will not apply to any product or part thereof if any part from another manufacturer is installed therein or any repairs or alterations have This product is guaranteed for a period of 3 years from the date of original retail purchase been made or attempted by unauthorized persons.
