Danfoss FP975 User Instructions

SELECTING THE OPERATING MODE
Behind the flap are two SELECT buttons, one each for Central Heating
( ) and Hot Water (
The operating modes available are:
ON - The output is on constantly.
OFF - The output is off constantly,
unless +1HR is pressed.
AUTO - The output switches on and off to the set programme.
ALLDAY - The output switches on at Setting 1, then stays on
until Setting 6.
MANUAL OVER-RIDES
While in OFF, AUTO or ALLDAY modes the plus one hour (+1HR)
button can be used to switch from off to on for just one hour, or to
extend an existing on period by one hour. The extra hour is cancelled
by pressing the button again, pressing the MAN button, or when an on
event is reached.
While in AUTO or ALLDAY modes pressing the manual (MAN) button
will switch an output which is on to off, and vice versa. This over-ride
will last only until the next programmed switching event is reached,
when the automatic programme will resume control, or until the button
is pressed again.
When the above over-rides are selected a bar appears in the display
against the appropriate legend.
Danfoss Randall Ltd.
Ampthill Road
Bedford, MK42 9ER
Tel: 01234 364621
Fax: 01234 219705
Email: danfossrandall@danfoss.com
Website: www.danfoss-randall.co.uk
).
Part No: 8572 Iss.5. 04/00

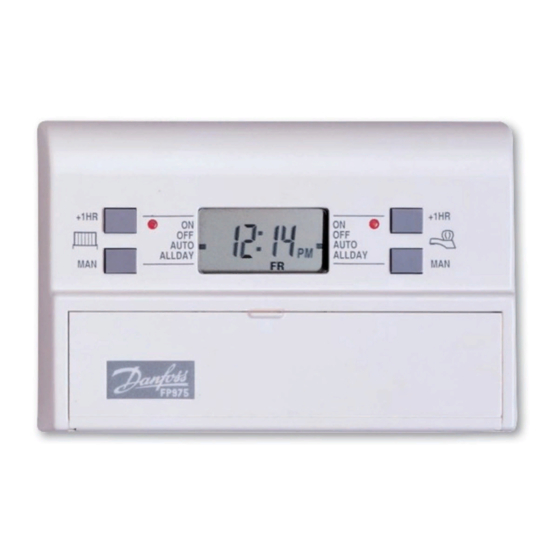

USER INSTRUCTIONS
FP975
7 day electronic programmer with separate outputs for
Heating & Hot Water, which can be set at independent times.
Features include:
+ Simple change to 5 day/2 day mode
+ Simple change between GMT & BST
+ 12 hour or 24 hour clock
+ 3 on's/3 off's with manual over-rides
+ Battery back-up
