MF920U

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the MF920U and is the answer not in the manual?

Questions and answers

Summary of Contents for Zte MF920U

Page 1 MF920U Quick Start Guide...
Page 2: Getting To Know Your Device

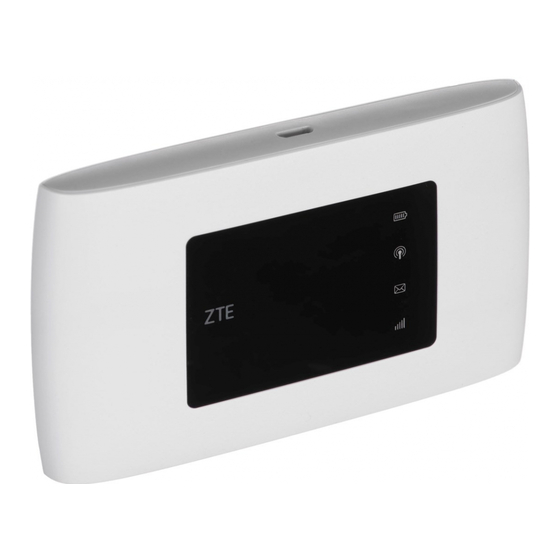

ZTE CORPORATION NO. 55, Hi-tech Road South, Shenzhen, P.R.China Postcode: 518057 Getting to Know Your Device Appearance The following figure is for your reference only.
Page 3 1. Charging/micro-USB jack 2. Indicator light 3. Power key  Press and hold for about 2 seconds to power on/off your device.  Press and hold for about 10 seconds to power off your device, if it is in abnormal status. And then press and hold for about 2 seconds to power on your device again.
Page 4: Indicator Lights
Getting to Know Your Device Indicator lights Indicator Status Description Red solid / The battery is low. Please blinking charge the battery. Green The battery is being Battery blinking charged. Green The battery level is middle solid or high. Light off Your device is powered off and not being charged.
Page 5 Blue You have new messages or blinking the message storage is full. Light off There is neither an unread message nor a new message. The device is in error Network status.  The device is not registered to the mobile network. ...
Page 6: Connection Scenarios
Blue The device is connected to blinking the 4G LTE network and data is being transferred. Getting to Know Your Device Connection Scenarios The device uses your micro-SIM card to access the Internet. It allows multiple clients to surf on the Internet at the same time. The following figure is for your reference only.
Page 7: Installing Your Device
Installing Your Device 1. Open the micro-SIM card slot cover. NOTE: Do not remove the cover rudely, because it is connected with the device. 2. Install a micro-SIM card to the micro-SIM card slot. WARNING! Your device does not support SIM cards, nano-SIM cards or any other non-standard micro-SIM cards.
Page 9: Connecting To Your Device
Connecting to Your Device Using Wi-Fi 1. Power on your device. 2. Ensure that your computer or other client devices have enabled Wi-Fi, and search for available wireless networks. NOTE: Refer to your Wi-Fi-enabled client device manual for further details on how to search for wireless networks. If you use a computer, you need to set your computer to obtain an IP address automatically.
Page 10 Using a USB Cable 1. Connect a computer to your device with a USB cable. 2. Power on your device. The operating system detects and identifies new hardware, and automatically installs the software. NOTE: If the system does not automatically launch installation, you can double-click the device installation icon in My Computer >...
Page 11 Getting to Know the Wi-Fi SSID and Password You can view the label on the device to get the default Wi-Fi SSID and password.
Page 12 Logging in to the 4G Mobile Hotspot Configuration Page 1. Ensure that the connection between your device and the client device is correct. 2. Launch the Internet browser and enter http://192.168.0.1 or http://ufi.ztedevice.com in the address bar. 3. Enter the password to log in to the 4G Mobile Hotspot configuration page.
Page 13 Changing Wi-Fi SSID Password 1. Log in to the 4G Mobile Hotspot configuration page. 2. Select Wi-Fi Settings. 3. Change the Network Name (SSID) or the Password in the Main SSID area. 4. Click Apply.
Page 14: Accessing The Internet
Accessing the Internet After a client device is successfully connected to your device, you can access the Internet in Automatic or Manual mode. The default mode is Automatic. Mode Operation Automatic Your device is automatically connected to the Internet, and you can surf on the Internet through the client.
Page 15 • To modify the parameters of your device, log in to the 4G Mobile Hotspot configuration page.
Page 16: Configuring Your Pc
Configuring Your PC The following procedure describes how to configure the Internet Protocol in Windows for your Wi-Fi connection. 1. Right-click Network and select Properties. 2. Select Change adapter settings. 3. Right-click Wireless Network Connection and select Properties. 4. Select Internet Protocol Version 4 (TCP/IPv4), and click Properties.
Page 17: Warning And Notice
Warning and Notice To the Users • If inadequately shielded, some electronic devices, for example, the electronic system of vehicles, may be affected by the electromagnetic interference caused by the device. Consult the manufacturers of such devices before using the device if necessary.
Page 18 • Keep the device out of the reach of small children. The device may cause an injury if used as a toy. • When the device is operating, do not touch the metallic parts. Failing to do so may cause burns. •...
Page 20: Battery Safety
• If the battery damages or shows signs of swelling or leakage, please stop use immediately and contact ZTE or ZTE authorized service provider for replacement.
Page 21: Limited Warranty
ZTE under the above-mentioned situations. This warranty is end users’ sole remedy and ZTE’s sole liability for defective or nonconforming items, and is in lieu of all other warranties, expressed, implied or statutory, including but not limited...
Page 22: Limitation Of Liability
Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, no matter whether or not ZTE had been advised, knew or should have known of the possibility...
Page 23: Legal Information
ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
Page 25: Troubleshooting
Troubleshooting Problem Recommended Action  Install the software. Please run the connection installation program in the path of between your My Computer > ZTEMODEM. device and a  If the driver of your device is PC through a abnormal, reinstall the software. cable You need to uninstall the software cannot...
Page 26 Troubleshooting Problem Recommended Action client  Ensure that your micro-SIM card is connected to available. device  Change the location and find a cannot access place with good signal. the Internet.  Check the settings of the WAN connection mode. Contact your service provider and ...
Page 28: Getting More Help
Getting More Help You can get help by:  Sending an email to mobile@zte.com.cn Visiting www.ztedevices.com ...
Page 29 Accessory designed by ZTE or available on market for maintaining 10 mm using distance must be used for RF exposure compliance. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not...
Page 30 correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ...
Page 31 Grant section www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-MF920U. For this device, the highest reported SAR value for usage near the body is 1.6 W/kg. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement.
Page 32 exposure level compliant or lower to the reported level. To support body operation, choose the belt clips or holsters that do not contain metallic components to maintain a separation of 10 mm between this device and your body.
