INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER AMERICAN NATIONAL STANDARDS, ANSI Z21.11.2b, VOLUME II FOR UNVENTED ROOM HEATERS.

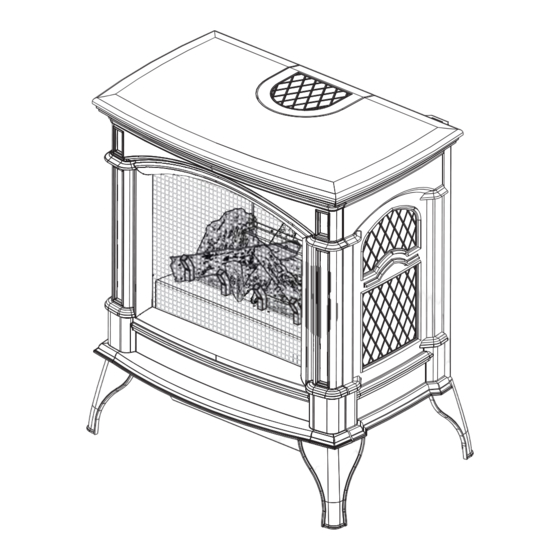

GVFS60N
NATURAL GAS MODEL
GVFS60P
PROPANE GAS MODEL
UNVENTED MILLIVOLT
SYSTEM
CERTIFIED FOR THE UNITED STATES USING ANSI METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fi re department.
- Installation and service must be performed by a
qualifi ed installer, service agency or the supplier.
- This is an unvented gas-fi red heater that
uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and
ventilation air must be provided.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
1
W415-0796 / 05.15.09
W415-0796 / 05.15.09
Advertisement
Table of Contents
Related Manuals for Napoleon GVFS60P
Summary of Contents for Napoleon GVFS60P
-
Page 1: Safety Information
Provisions for adequate combustion and ventilation air must be provided. Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleon.on.ca W415-0796 / 05.15.09... -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION WARRANTY DIMENSIONS GENERAL INSTRUCTIONS GENERAL INFORMATION MOBILE HOME SHIPPING BRACKET INSTALLATION COMBUSTION AND VENTILATION AIR PROVISIONS DETERMINING CONFINED OR UNCONFINED SPACE GAS INSTALLATION OPTIONAL WALL SWITCH RATING PLATE FINISHING CAST FRONT REMOVAL LOG PLACEMENT LOGO PLACEMENT BLOWER INSTALLATION SWITCH AND BRACKET INSTALLATION OPERATION... -
Page 3: Introduction
1.0 INTRODUCTION WARNING • ANY CHANGES TO THIS HEATER OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED. • Under no circumstances should this heater be modifi ed. • Do not operate heater before reading and understanding operating instructions. Failure to operate heater according to operating instructions could cause fi... -
Page 4: Warranty
NAPOLEON® warrants its stainless steel burners against defects in workmanship and material for life, subject to the following conditions: During the fi rst 10 years NAPOLEON® will replace or repair the defective parts at our option free of charge. From 10 years to life, NAPOLEON®... -
Page 5: Dimensions
DIMENSIONS " " 27" RATING PLATE " LOCATION GENERAL INSTRUCTIONS WARNING CARBON MONOXIDE POISONING MAY LEAD TO DEATH EARLY SIGNS OF CARBON MONOXIDE POISONING RESEMBLE THE FLU, WITH HEADACHE, DIZZI- NESS AND/OR NAUSEA. IF YOU HAVE THESE SIGNS, THE HEATER MAY NOT BE WORKING PROP- ERLY. -
Page 6: General Information
• Sellers of un-vented propane or natural gas-fi red space / room appliances shall provide to each purchaser a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfi replaces.com/ Webshare/installation_manuals/mass_requirements.pdf In absence of local codes, install the appliance to the current National Fuel Gas Code, ANSI Z223.1 Installation Code which can be obtained from: American National Standards Institute Inc. -
Page 7: Mobile Home
MOBILE HOME Suitable for mobile home installation where the mobile home has been permanently placed on its site. This heater may be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes. For mobile home installations, the heater must be fastened in place. It is recommended that the heater be secured in all installations. -
Page 8: Installation
2.0 INSTALLATION Provide adequate ventilation and combustion air, see “COMBUSTION AND VENTILATION AIR PROVISIONS” section. Provide adequate accessibility clearance for servicing and operating the heater. Never obstruct the front opening of the heater. As long as clearance to combustibles is kept within the required distances, the most desirable and benefi cial location for a heater is in the centre of a building, thereby allowing the most effi... -
Page 9: Determining Confined Or Unconfined Space
DETERMINING CONFINED OR UNCONFINED SPACE To determine the volume of the room where the appliance is to be installed, multiply the width x the length x the ceiling height of that room measured in feet. If any adjoining rooms are connected by grilles or openings such as kitchen pass-throughs, etc., the volume of those rooms may be added to the total. -
Page 10: Gas Installation
EXAMPLE 1: In this example, because there is no door to the adjoining room, the volume of the adjoining room may be added to the volume of the room with the heater to get a total unconfi ned space. The total unconfi ned space: 800 + 1200 = 2000 cubic feet. Maximum BTU/h: 2000x1000 = 40,000 BTU/h 19.2 If there are no more fuel burning appliances within this space then the 30,000 BTU/h input of the heater is suit-... -
Page 11: Optional Wall Switch
Proceed once the vent installation is complete. Installation and servicing to be done by a qualifi ed installer Do not use open fl ame. • Move the appliance into position and secure. 2.3.1 • If equipped with a fl ex connector the appliance is designed to accept a 1/2” gas supply. Without the 2.3.2 connector it is designed to accept a 3/8”... -
Page 12: Finishing
Blocked burner ports can cause an incorrect fl ame pattern, carbon deposits and delayed ignition. PHAZER logs glow when exposed to direct fl ame and provide a unique and realistic glowing effect. Use only certifi ed PHAZER logs available from your Napoleon dealer. FIGURE 3.2a Place log #1 onto the burner, centering it onto the burner tray and pushing it as close to the rear wall of the fi... -
Page 13: Logo Placement
The notch in log #5 should be pressed down onto the FIGURE 3.2b skewering pin located at the end of the grate as shown to prevent it from rocking. Position the notch located in log #6 against the grate post FIGURE 3.2c and rest it within the notch in log #4. -
Page 14: Blower Installation
4.0 BLOWER INSTALLATION 4.0.1 Ensure that the access cover plate has been installed. ON/OFF SWITCH BRACKET 4.0.2 Remove the on/off switch bracket and the cover plate below it. The cover plate may now be discarded. 4.0.3 Decide which side of the blower housing you prefer the on/off switch to be located on. -
Page 15: Switch And Bracket Installation
SWITCH AND BRACKET INSTALLATION CONNECT THE TWO WIRES TO THE SWITCH TERMINALS. W415-0796 / 05.15.09... -
Page 16: Operation
5.0 OPERATION If appliance shuts off, do not relight until you provide fresh air. If appliance keeps shutting off, have it serviced. Keep burner and control compartment clean. When lit for the first time, the appliance will emit a slight odour for a few hours. This is a normal temporary condition caused by the curing of the logs and the “burn-in”... -
Page 17: Adjustment
6.0 ADJUSTMENT VENTURI ADJUSTMENT WARNING Carbon can be distributed in surrounding living area if the air shutter is improperly adjusted. This appliance model has an air shutter that has been factory set open according to the chart below: Closing the air shutter will cause a more yellow flame, but can lead to carboning. Opening the air shutter will cause a more blue flame, but can cause flame lifting from the burner ports. -
Page 18: Replacements
CHARCOAL PIECE (LOG #2) W135-0182 LOG #3 W135-0210 LOG #4 W135-0211 LOG #5 W135-0212 LOG #6 W135-0213 LOG #7 W361-0079 GLOWING EMBERS W385-0334 NAPOLEON LOGO W565-0110 SCREEN W135-0384 BLACK TRIVET W135-0377** SIDE (LEFT OR RIGHT) W135-0375** W135-0375** FRONT W415-0796 / 05.15.09... - Page 19 ACCESSORIES PART NO. DESCRIPTION W690-0011B REMOTE CONTROL - ADVANTAGE PLUS GDSLL-KT LEVELLING / SECURING KIT GS-64KT BLOWER KIT GS831C CHROME TRIVET W550-0001 CHARCOAL EMBERS W380-0002 VARIABLE SPEED SWITCH KNOB KB-35 VARIABLE SPEED SWITCH GDS819KT DECORATIVE BRICK PANELS ANI-K BLACK ANDIRONS ANI-O OBELISK ANDIRONS **FOR OTHER AVAILABLE COLOURS, ADD THESE LETTERS TO THE BASE PART NUMBER:...
-
Page 20: Trouble Shooting
9.0 TROUBLE SHOOTING WARNING ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT, WITH THE GLASS DOOR OPEN OR REMOVED. SYMPTOM PROBLEM TEST SOLUTION Main burner goes out; Pilot flame is not large enough or - Turn up the pilot flame. - Page 21 SYMPTOM PROBLEM TEST SOLUTION Pilot goes out while Gas piping is undersized. - Turn on all gas appliances and see if pilot flame flutters, standing; Main burner diminishes or extinguishes, especially when main burner is in ‘OFF’ position. ignites. Monitor appliance supply working pressure. - Check if supply piping size is to code.
-
Page 22: Service History
10.0 SERVICE HISTORY 43.1 W415-0796 / 05.15.09... -
Page 23: Notes
11.0 NOTES 44.1 W415-0796 / 05.15.09... - Page 24 44.1 W415-0796 / 05.15.09...
