- Page 1 Assembly Instructions Failure to follow instruction manual can void warranty OG8020...
- Page 2 OG8020 Instruction Manual STEP 1: OG8020 massage chair arrives in three boxes. The base is packed in box 1, the back- rest is packed in box 2, and the side boards packed in box 3. As pictured below. Box 1:The Base...
- Page 3 STEP 4: STEP 6: Cut the cable tie, used for shipping, securing the backrest actuator. Remove the Preferably using two people, carefully set the backrest on the cradle points on the protective material which wrapped on the head of backrest actuator. Remove the cotter base.
- Page 4 STEP 8: Push the backrest forward and let it lean on the seat pad. Use the bolt and cotter pin to STEP 10: Recline the backrest until it locks into position. attach the backrest and backrest actuator. Connect the backrest 4-way air hose connecter to the air pump box.
- Page 5 STEP 12: Connect the air hose and then the wire harness to their appropriate connectors. STEP 14: Remove the protective cloth strips on the backrest pad and attach the backrest pad Carefully attach the side board onto the base. Align and insert the two metal bars on onto backrest.

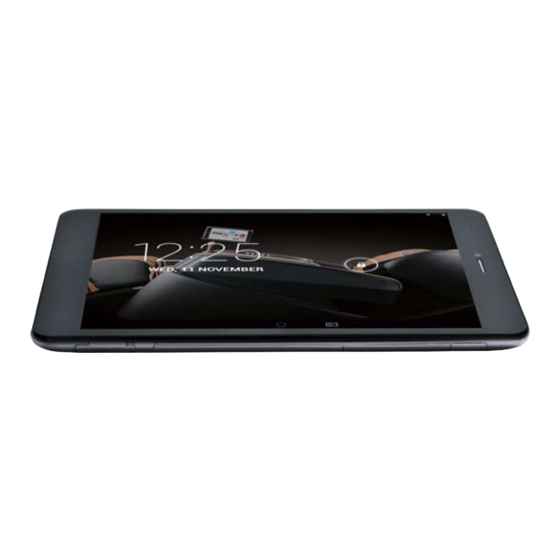

- Page 6 STEP 15: Attach the tablet holder onto right side armrest. Then attach the tablet cover onto the holder. As pictured below. STEP 16: Connect the chair to power supply, turn on the power switch. Then you can enjoy your massage chair. Locate the power switch...
