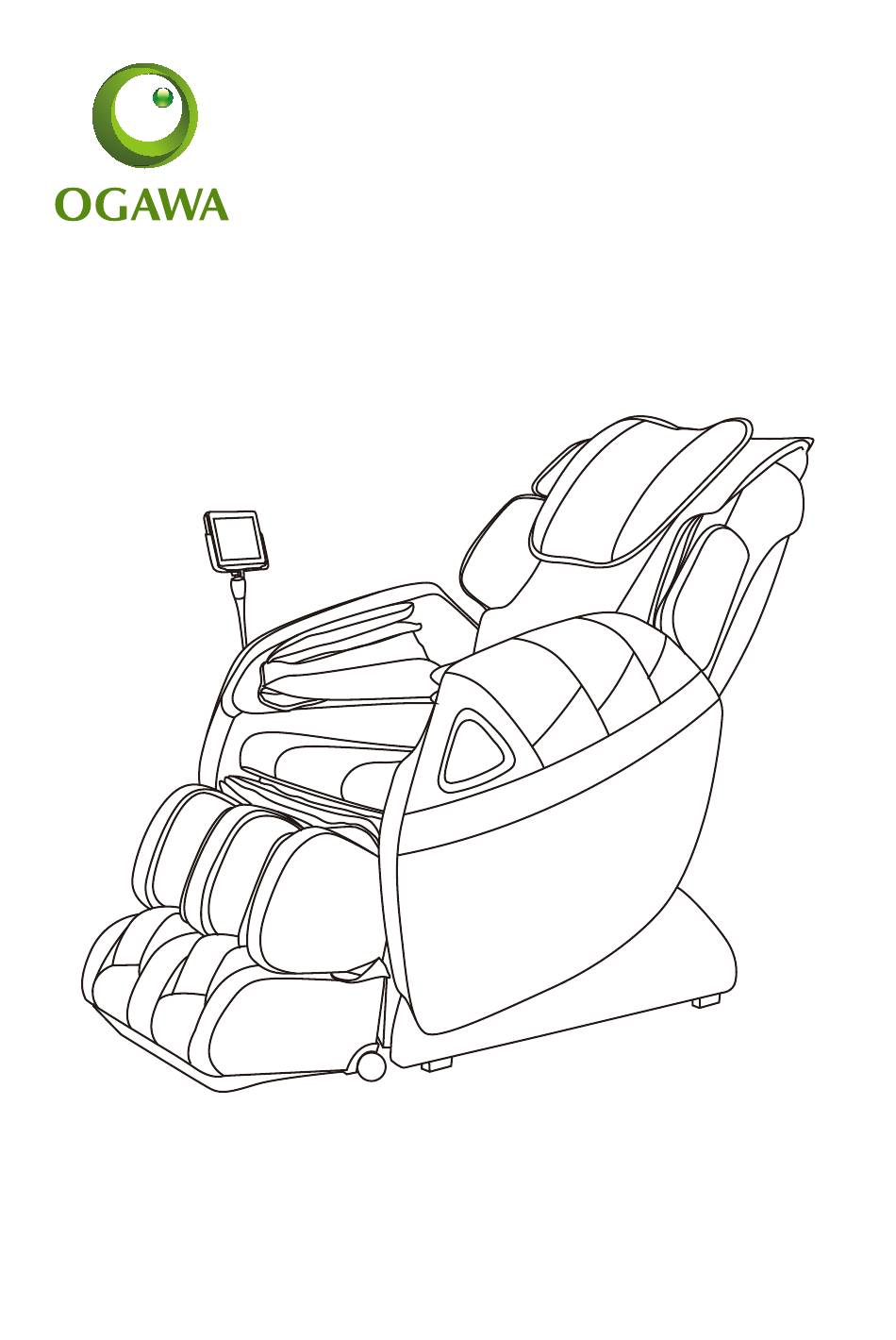

- Page 1 OG-5020 Assembly Instructions OG-5020 Instruction de Montage...
- Page 2 S T E P 1 : Open the box and take all the parts out. The items are including base ×1, backrest ×1, seat pad ×1, backrest pad (including pillow) ×1 and shoulder massage ×1 pair. As pictured below. ÉTAPE 1: Ouvrez la boîte et retirez toutes les pièces.
- Page 3 S T E P 3 : Attach the seat pad onto the base. Zip the zipper which connects the seat pad and the footrest. Connect the vibrate wire connecter. As pictured below. ÉTAPE 3: Fixez le coussin de siège à la base. Fermez la fermeture éclair qui relie le coussin de siège et le repose-pieds.
- Page 4 S T E P 4 : Zip the zipper to join the backrest pad to seat pad. Then connect the backrest pad wire connector. As pictured below. ÉTAPE 4: Fermer la fermeture éclaire pour fixer le coussin du dossier au siège. Ensuite, brancher le câble connecteur pour le coussin de dossier, tel qu'indiqué...
- Page 5 S T E P 6 : Attach the backrest onto the base. There are two axis of rotation on the bottom of the backrest. And there are two grooves on the base. Take the backrest vertically and insert the axis of rotation into the grooves. Get somebody to hold the backrest then joint the backrest to the link rod.
- Page 6 S T E P 7 : Attach shoulder massage to the backrest. On the backrest, there are four screw holes on each side for fixing the shoulder massage. Unzip the zipper of the shoulder massage. Then fix the shoulder massage onto the backrest by 4pcs screws. As pictured below. ÉTAPE 7: Fixez les épaulettes de massage au dossier.
- Page 7 S T E P 9 : Get rid of the straps that attached onto backrest pad Velcro. Then attach the backrest pad onto backrest. Make sure Velcro engage perfectly. Then zip the zipper. As pictured below. ÉTAPE 9: Retirer les sangles attachées au dossier par du Velcro. Ensuite, fixer le coussin appui-dos au dossier.
- Page 8 S T E P 1 0 : Attach the remote control holder onto Side board. Fix it with the screw. Then attach remote control onto the holder. As pictured below. ÉTAPE 10: Fixer le support à télécommande sur le panneau latéral en utilisant la vis. Ensuite insérer la télécommande dans le support, tel qu'indiqué...
