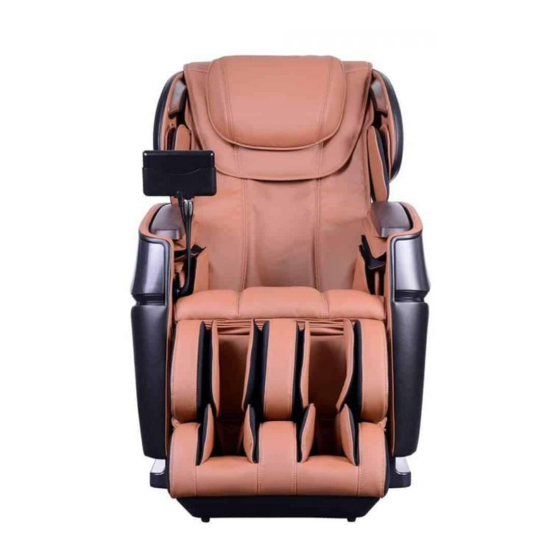

- Page 1 OG812 INSTALLATION MANUAL...
- Page 2 Assembly Instructions OG812 Massage chair arrives in three boxes. The base is packed in box 1, the backrest is packed in box 2, and the side boards packed in box 3. As pictured below. Ogawa OG812 Ogawa Box 1:The Base...
- Page 3 Cut the cable tie, used for shipping, securing the backrest actuator. Open box 2 and remove packing materials. Take the backrest out of the box and set it on the floor. DO NOT pull Remove the protective material which wrapped on the head of backrest actuator. on the air hose.
- Page 4 Push the backrest forward and let it lean on the seat pad. Use the bolt and cotter pin to attach the backrest and backrest actuator. Securely attach the connector to the base. Completed connection. Make sure it locks into place. Push the backrest forward and let it lean on Aline the two brackets.
- Page 5 Reattach the PCB cover and fold up the backrest until it locks into position. Connect the air hose and then the wire harness to their appropriate connectors. Carefully attach the side board onto the base. Align and insert the two metal bars on the base into the holes under the metal plate. As pictured below.
- Page 6 Remove the protective cloth strips on the backrest pad and attach the backrest pad onto backrest. Attach the Attach the tablet holder onto right side armrest. Then attach the tablet cover onto the holder. As pictured zipper to the backrest pad. Then attach the pillow. As pictured below. below.
