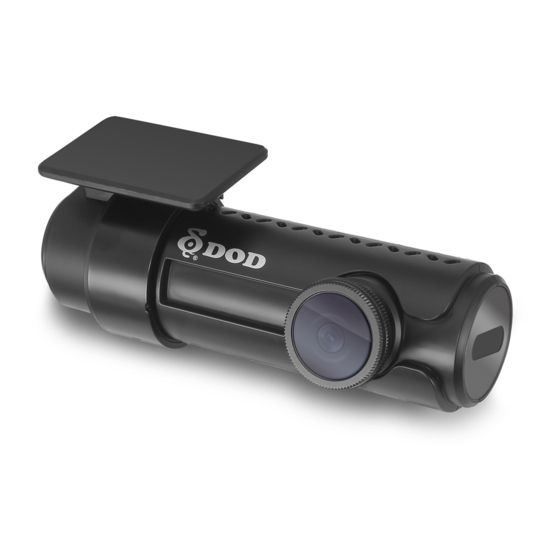

DOD RC500S User Manual
  1. Manuals
  2. Brands
  3. DOD Manuals
  4. Dash Cameras
  5. RC500S
  6. User manual

DOD RC500S User Manual

Hide thumbs Also See for RC500S:
Table of Contents

Advertisement

Quick Links

RC400S / RC500S
User Manual

Advertisement

Table of Contents
loading

Related Manuals for DOD RC500S

Summary of Contents for DOD RC500S

  • Page 1 RC400S / RC500S User Manual...

  • Page 3: Table Of Contents

    Getting Started ..................11 Installing Your Camera ............... 13 Basic Camera Operation ..............15 Mobile viewer \ DOD Dash Cam Application ........16 Functions of DOD Dash Cam APP (iOS) ........... 17 Functions of DOD Dash Cam APP (Android) ........21 Camera Settings ..................

  • Page 4: Product Features

    Product Features New SONY STARVIS Sensor- ISO Sensitivity up to ISO 12800 Features a new SONY STARVIS CMOS sensor with improved sensitivity not only under normal lighting but also in low light and near infrared light condition. Dual Channel 1080P FULL HD The front and rear view of your vehicle are recorded in 1080p high definition quality;...
  • Page 5 128GB with more than 18 hours of recording. DOD GPS Player The DOD GPS Player generates 1080p video recordings with real-time driving data such as speed and location clearly at a glance. Wi-Fi Connectivity – View Remotely with The Free DOD APP No need to wait any longer whenever you would like to replay the exciting moments.
  • Page 6 6G Sharp Glass Lens 6-Element sharp lens, made of 6 layers of glass, provides stunning clear and non-deformed images. G-Sensor Automatic Trigger for File Protection When an impact, emergency brake occurs or the car tilts, the device will lock the current video files automatically. Important files will not be overwritten by loop recording.

  • Page 7: Safety Precautions

    The battery in the device self-discharges over a period of time naturally whether the battery is used or not. Charge the Dash Camera for 5 minutes with the supplied DOD power cord if you are unable to turn on the camera.

  • Page 8: Package Contents

    Package Contents Dash Cam User Guide Rear Dash Cam Car Power Adaptor Rear Cam Connection Cable Note: Supplied accessories may vary by region.

  • Page 9: Optional Accessories

    Optional Accessories DP4 hardwiring kit offers constant source and prevent battery drain with low-voltage protection.

  • Page 10: Camera Controls

    Camera Controls 】 ● SOS Emergency File Lock【 While recording, press this button to lock current recording file from being over written. Audio Recording Function / Display OFF【 】 ● During standby / recording mode: Press 【 】button once to turn voice recording ON/OFF. 】...
  • Page 11 Camera Controls ● O peration Status LED ON – Wi-Fi connected to smart device. OFF – Wi-Fi disabled. Flashing white LED– Connecting / Wi-Fi stand by. ON – Audio recording (+GPS signal locked on). OFF – Audio recording off (+GPS signal locked on). Green LED Flashing –...
  • Page 12 RC400S RC500S 】 ● M icro USB Port【 For use with the supplied DOD Car Power Adaptor or USB data cable. ● M icroSD Slot Requires a micro SDHC/SDXC card, class 10 or above. Supports up to 128GB. ● Rear Cam Connection Port【AV IN】...

  • Page 13: Getting Started

    Memory card must be in FAT32 format to function properly. Card slot is directional and may be damaged if SD card is inserted incorrectly. To save recorded videos stably, DOD Tech recommends formatting your SD card every two weeks within the camera Note: After formatting the SD card, all data will be deleted.
  • Page 14 Note: In specified cars, the power may be constantly supplied to the device even when the engine is turned off. This may drain the vehicle battery. The optional DOD DP4 kit equipped with low-voltage protection and is designed to prevent battery drainage.

  • Page 15: Installing Your Camera

    Installing Your Camera...
  • Page 16 It is recommended to place the camera behind the rearview mirror without blocking either lenses or camera functions. DOD Tech recommends to place the rear cam at the top center of your rear glass for best images and shortest hanging wires after installation.

  • Page 17: Basic Camera Operation

    Continuously powered electrical outlet allows the camera to capture videos while you are away but it will result in vehicle battery drainage and may eventually prevent your car from starting. DOD Tech recommend to use DP4 power kit for needs of parking surveillance.

  • Page 18: Mobile Viewer \ Dod Dash Cam Application

    Mobile viewer \ DOD Dash Cam Application The DOD Dash Cam Application is designed to be compatible with all DOD Tech products equipped with Wi-Fi function. Control your camera, download recorded videos and photos, and monitor real-time live view through your smart device.

  • Page 19: Functions Of Dod Dash Cam App (Ios)

    For iOS Platform: To connect the smart device, firstly access to “Settings” folder on your iOS device. Select your DOD Dash Cam model and enter the default password to connect. *Password: 12345678 Note: Password can be changed in dash cam settings...
  • Page 20 Once the Wi-Fi connection is complete, open the DOD Dash Cam APP. 1. Browse through the instruction pages by touching the left/right arrow or swipe across the screen. 2. Touch the green “GO” icon to continue. When no dash cam is connected, this page is shown.
  • Page 21 W hen dash cam is connected, please make sure to ● switch on then hit check mark to confirm. B reak camera connection. ● C onnect to switchable camera. ● C onfirm and return to previous page. ● V iew connection instruction. ●...
  • Page 22 Playback and Download Press [ ] to enter the files of recorded videos and photos. F ile View Mode ● D ownload File to Your Smart Device* ● A ll Files ● D isplay Video Files Only ● D isplay Photo Files Only ●...

  • Page 23: Functions Of Dod Dash Cam App (Android)

    For Android Platform: To connect your smart device, firstly access "Settings" folder on your Android devices. Select your DOD Dash Cam model and enter the default password to connect. *Password: 12345678 Note: Password can be changed in dash cam settings...
  • Page 24 ● A ccess to setting options. ● C onfirm. ● Q uick access to Wi-Fi settings on your smart device. ● C amera switch. ● C amera quick settings. ● Files directory. L ink to switchable DOD dash cams. ●...
  • Page 25 C onfirm connection and return to previous page. ● Q uick access to Wi-Fi settings on your smart device. ● C amera switch. ● C amera quick settings. ● Files directory. D isconnect from current camera. ● Settings Press [ ] to enter the menu setting.
  • Page 26 Playback and Download Press [ ] to enter the files of recorded videos and photos. F ile View Mode ● D ownload File to Your Smart Device* ● A ll Files ● D isplay Video Files Only ● D isplay Photo Files Only ●...

  • Page 27: Camera Settings

    Camera Settings All settings are changed via the DOD Dash Cam APP; all changes made will be automatically saved. Settings can only be changed once the recording is stopped. For details of each function please see the description below. Display Mode Live view screen display is default to be large front and small rear, can be changed to front view only, rear view only, or large rear with small front.
  • Page 28 Note: Parking Surveillance requires consistent power supply via vehicle battery. (It is recommended to use optional DOD DP4 kit equipped with low-voltage protection design to prevent battery drainage. Please ensure to enable G-sensor function in setting menu before switch to Parking Surveillance.
  • Page 29 Imprints ISO value (light sensitivity value) on the video file. Format Memory Card Completely deletes all files including locked footage from the SD card and optimizes the card for recording. DOD Tech suggest formatting via the menu every two weeks to ensure proper SD card functionality. Factory Reset Reverts all settings back to the original factory default.
  • Page 30 Auto Connect If enable, APP will automatically connect known dashcam without connecting manually. Clear Cache Delete cache can free up RAM space for smoother APP operation.

  • Page 31: Camera Modes

    Camera Modes When the camera is connected to your smart device, please refer to the following diagram. 1. Main Control The camera defaults to video recording when the camera is first turned on. 】to start/stop recording. Recording Mode: Press【 File Directory: Press 【 】...

  • Page 32: Playback On Pc \ Dod Video Player

    Playback on PC \ DOD Video Player Please transfer the video files to your electronic device for smooth viewing and or storage. The DOD Video Player is a user-friendly program to playback videos and to visualize your position and speed on your PC or Mac.

  • Page 33: Transferring Files

    Learn more about DOD GPS PLAYER V2.0 Open Video Files Add your file to the list of videos: Click “File”, click “Open”, and navigate to the location of your files. Press the “ADD” button located below the list of videos.

  • Page 34: Firmware Update

    DOD is NOT responsible for the loss of any recorded video during operation due to unexpected factors or force majeure when driving.

  • Page 35: Rc400S Specifications

    Battery Supercapacitor Power Input 5V 1.5A Size 112.6 (L) x 61.5(W) x 33.4 (H)mm Weight 120g Operating Temperature -20°C ~65°C RC500S Specifications F: 1920x1080@30fps Video Resolution R: 1920x1080@30fps Sensor SONY STARVIS CMOS sensor F: 145° Wide-Angle Lens R: 140° Aperture f/1.6 both front and rear...
  • Page 36 Copyright ©2017 DOD Tech All Rights Reserved Under the copyright laws, this manual may not be copied, in any way, shape, or form, without the written consent of DOD Tech.
